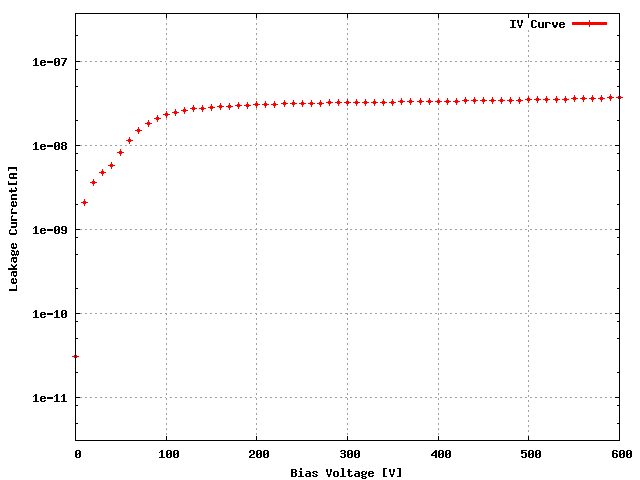

Sensor: S_1x2L_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 53D |
| ROC1 | W33_XC4K5LT | 03A |
| Ibias_DAC, Ibias_DAC Data | 158 | 144 |
| Vana, VanaData | 133 | 137 |
| CalDelData and plots | 86 | 86 |
| VthrCompData and plots | 73 | 92 | Depletion Voltage is -52 and suggested operational voltage is -92
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2L_040_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_040_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 105 | 110 |
| Vsf | 140 | 140 |
| VoffsetOp | 70 | 95 |
| VIbias_PH | 95 | 100 |

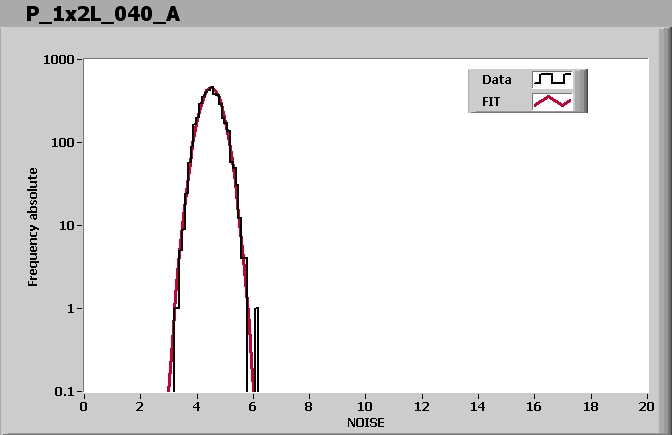

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_040_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_040_A-580-noise-ROC0-HISTO.jpg) | MEAN = 4.506602SIGMA = 0.370019 |

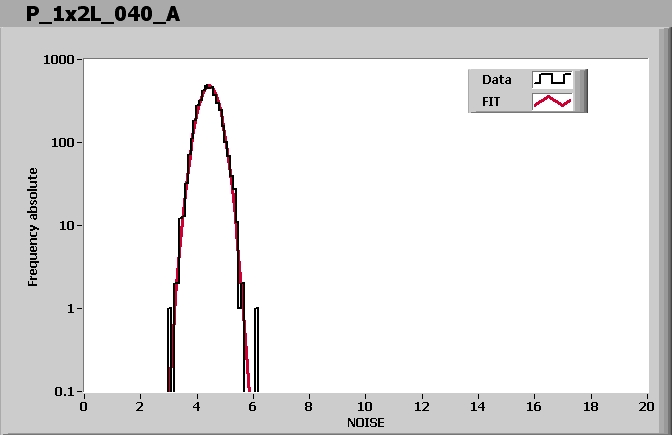

| ROC1 NOISE | ![[IMAGE] of](P_1x2L_040_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_040_A-580-noise-ROC1-HISTO.jpg) | MEAN = 4.427186SIGMA = 0.343703 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:24 AM
