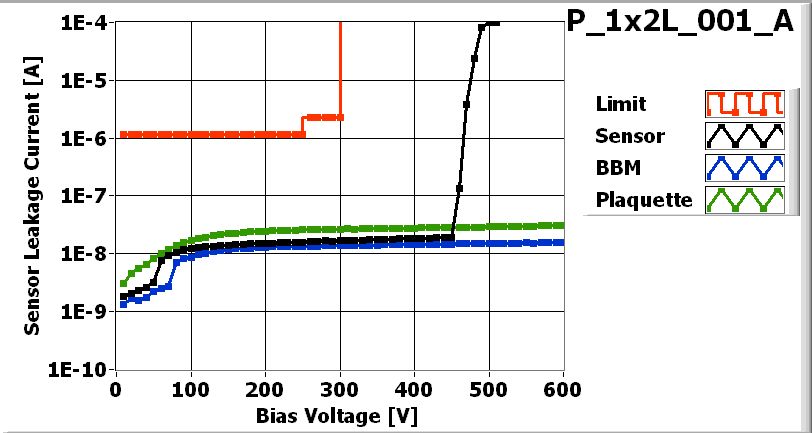

![[IMAGE] of](P_1x2L_001_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

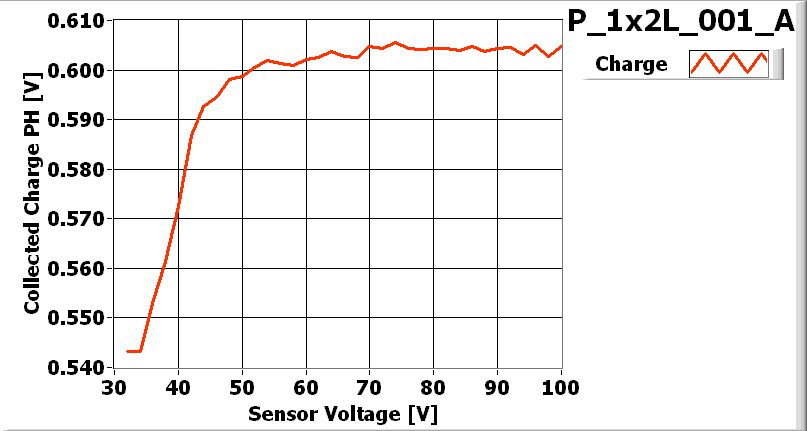

![[IMAGE] of](P_1x2L_001_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 8/10/2007
| Part | ID |
|---|---|
| BBM | BBM_001-1x2T |
| VHDI | 1x2L_633 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W46_D3LQC5T | 31B |
| ROC1 | W46_D3LQC5T | 30C |
Inspected by Arndt Kirk on date 8/22/2007
| LR_dev | 0.056 |
| LL_dev | 0.065 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Arndt Kirk | NO ASSEMBLY PROBLEMS No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 8/22/2007 by Arndt Kirk
PLAQUETTE encapsulated on 8/22/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 8/22/2007 by Ozhan Koybasi
P_1x2L_001_Aon 8/24/2007 12:25 PM
P_1x2L_001_Aon 8/24/2007 12:25 PM
PLAQUETTE TESTED on 2007-08-24 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 158 | 154 | |
| Vana | 143 | 147 | |
| Cal_Del | 85 | 83 | |
| Vthrs_Comp | 86 | 92 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

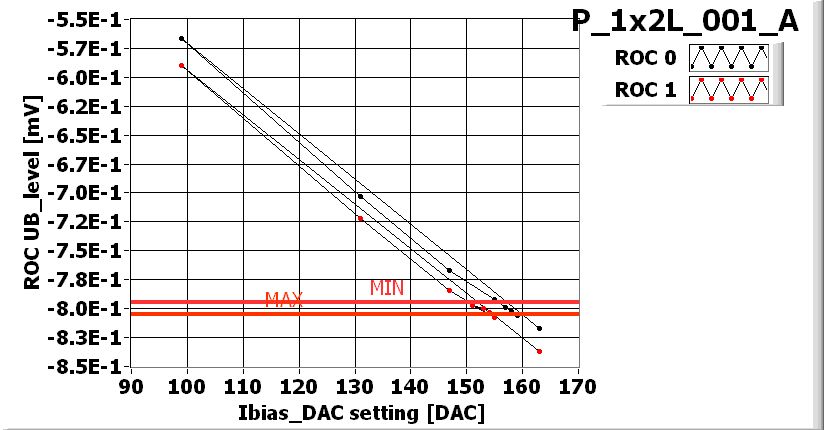

![[IMAGE] of](P_1x2L_001_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

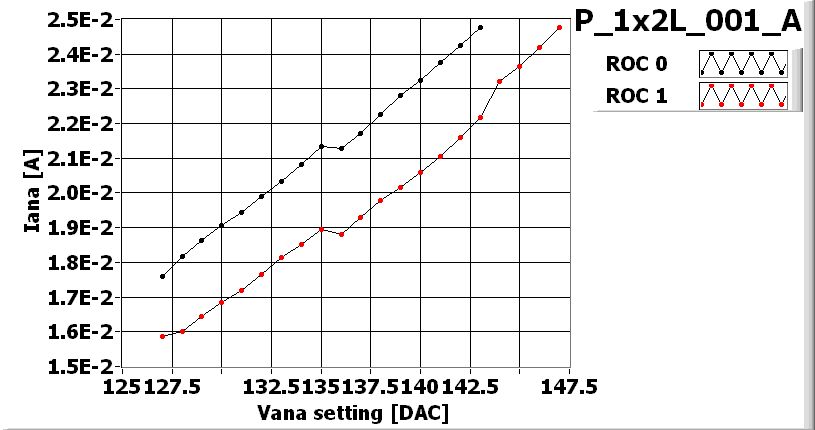

![[IMAGE] of](P_1x2L_001_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_001_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_001_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_001_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_001_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 90 |
| Vsf | 145 | 145 |
| VoffsetOp | 90 | 115 |
| VIbias_PH | 100 | 95 |

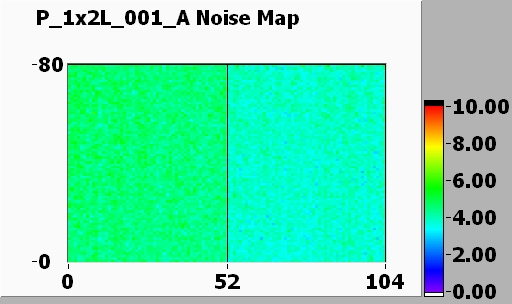

Noise MAP at VMAX
![[IMAGE] of](P_1x2L_001_A-580-noise.jpg)

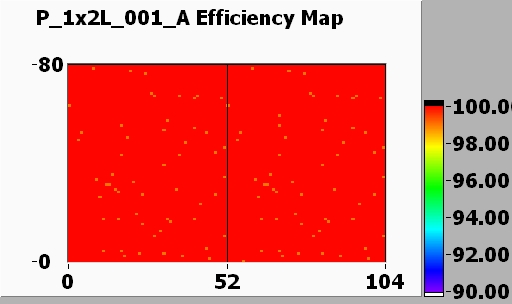

Efficiency MAP
![[IMAGE] of](P_1x2L_001_A-580-efficiency.jpg)

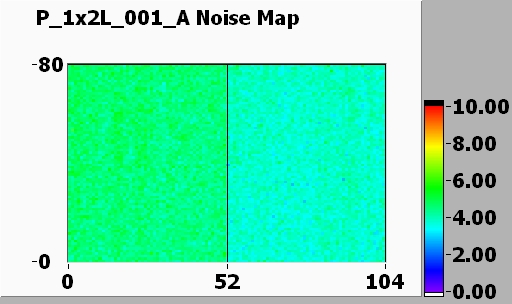

Noise MAP at -200 V
![[IMAGE] of](P_1x2L_001_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_001_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
