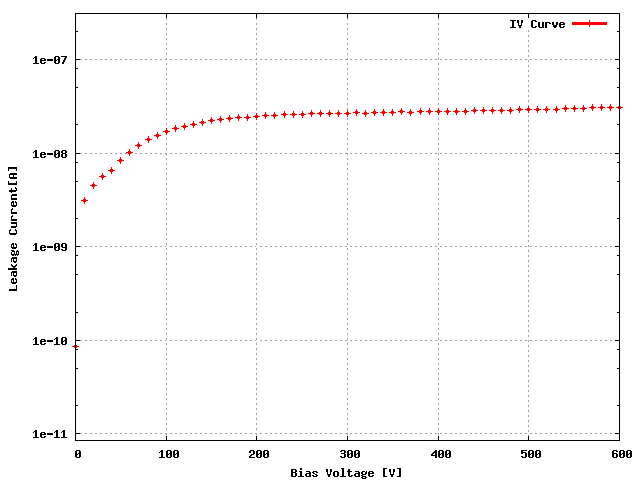

Sensor: S_1x2L_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W46_D3LQC5T | 31B |
| ROC1 | W46_D3LQC5T | 30C |
| Ibias_DAC, Ibias_DAC Data | 158 | 154 |
| Vana, VanaData | 143 | 147 |
| CalDelData and plots | 85 | 83 |
| VthrCompData and plots | 86 | 92 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 0 | 1 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2L_001_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_001_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 95 | 90 |
| Vsf | 145 | 145 |
| VoffsetOp | 90 | 115 |
| VIbias_PH | 100 | 95 |

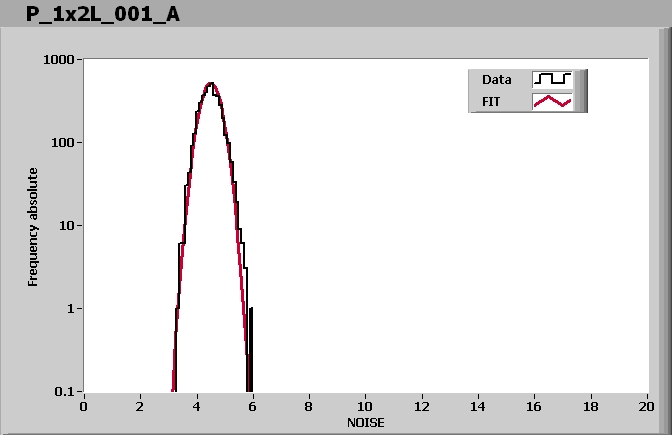

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_001_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_001_A-580-noise-ROC0-HISTO.jpg) | MEAN = 4.489294SIGMA = 0.329213 |

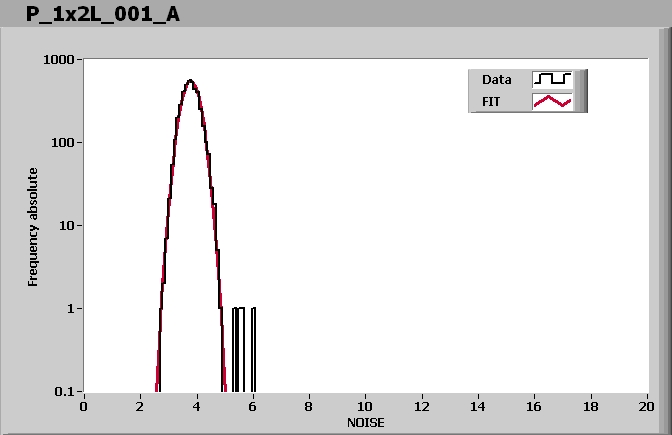

| ROC1 NOISE | ![[IMAGE] of](P_1x2L_001_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_001_A-580-noise-ROC1-HISTO.jpg) | MEAN = 3.781973SIGMA = 0.296695 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:49 PM
