Test Date: 2016-05-09 12:54
Analysis date: 2016-05-23 01:15
Analysis date: 2016-05-23 01:15
M-Y-K-NA XRayHRQualification
Summary
| Module | Module | M-Y-K-NA | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |

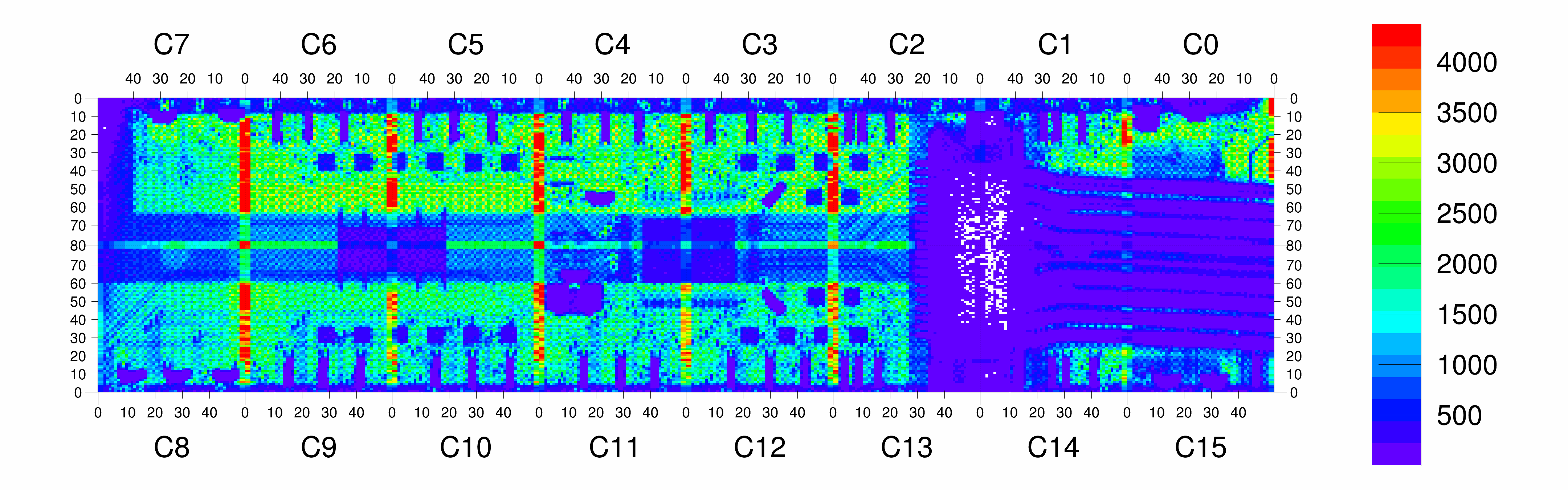

| PixelDefects | Total Pixel Defects | 65 | |
| BumpBondingDefects | Bump Bonding Defects | 65 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

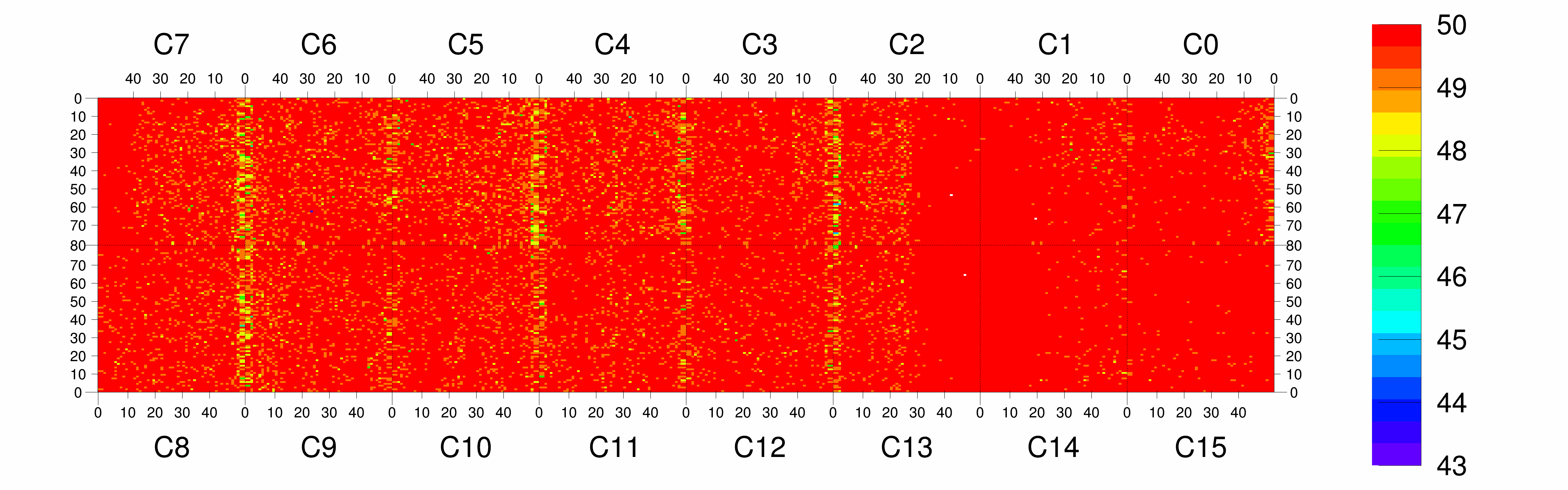

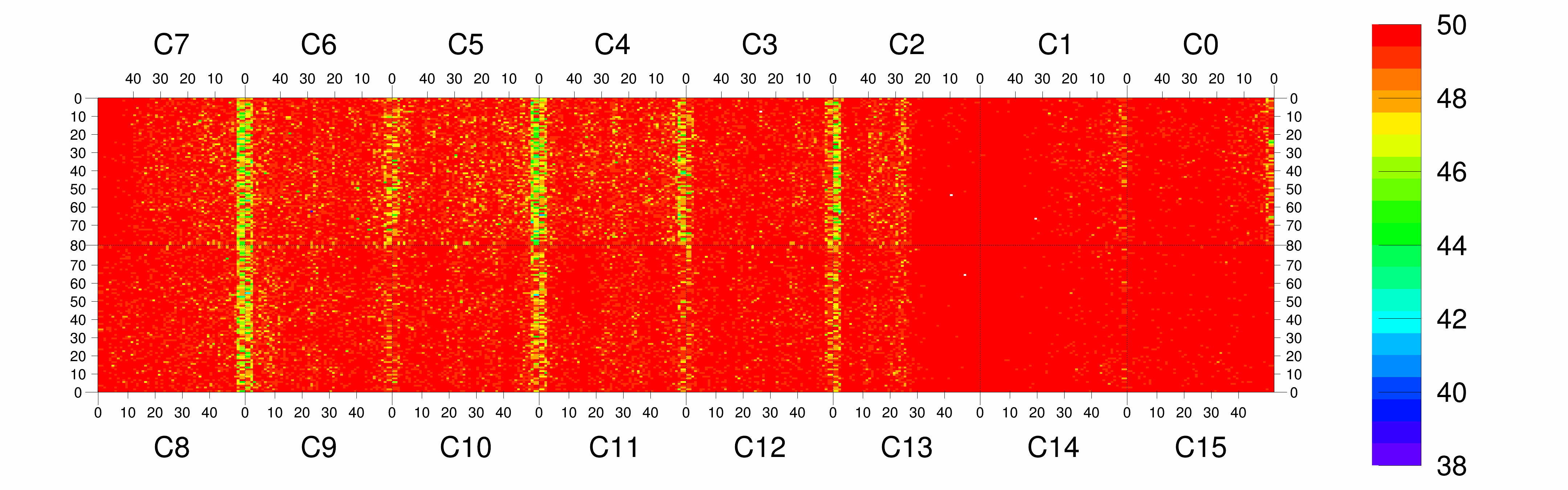

| Efficiency | Efficiency 20/50/80 | 99.95/99.84/99.63 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "120" | BB def | Rate "40" | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 99.96 | 99.90 | 99.68 | 0.11 | 70.9 | 0 | 21.9 | 0/0 | 0 |
|
Chip 1
|
A
|
22 | 99.96 | 99.86 | 99.52 | 0.12 | 47.1 | 22 | 14.5 | 0/0 | 0 |
|
Chip 2
|
A
|
7 | 99.96 | 99.88 | 99.60 | 0.07 | 78.1 | 7 | 24.1 | 0/0 | 0 |
|
Chip 3
|
A
|
1 | 99.96 | 99.92 | 99.80 | 0.09 | 116.1 | 1 | 36.0 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.94 | 99.88 | 99.66 | 0.18 | 128.3 | 0 | 39.8 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 99.96 | 99.86 | 99.55 | 0.11 | 130.4 | 0 | 40.5 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.95 | 99.88 | 99.63 | 0.10 | 137.6 | 0 | 42.7 | 0/0 | 0 |
|
Chip 7
|
A
|
0 | 99.96 | 99.86 | 99.52 | 0.07 | 95.7 | 0 | 29.6 | 0/0 | 0 |
|
Chip 8
|
A
|
0 | 99.95 | 99.88 | 99.63 | 0.16 | 97.6 | 0 | 30.1 | 0/0 | 0 |
|
Chip 9
|
A
|
0 | 99.96 | 99.87 | 99.58 | 0.15 | 106.2 | 0 | 32.9 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.94 | 99.89 | 99.70 | 0.21 | 100.3 | 0 | 31.1 | 0/0 | 0 |
|
Chip 11
|
A
|
0 | 99.95 | 99.87 | 99.60 | 0.14 | 91.3 | 0 | 28.3 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.95 | 99.90 | 99.71 | 0.08 | 91.9 | 0 | 28.4 | 0/0 | 0 |
|
Chip 13
|
A
|
7 | 99.95 | 99.87 | 99.60 | 0.12 | 56.5 | 7 | 17.4 | 0/0 | 0 |
|
Chip 14
|
A
|
28 | 99.95 | 99.42 | -1.00 | 0.02 | 25.1 | 28 | 7.7 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.96 | 99.68 | -1.00 | 0.02 | 27.5 | 0 | 8.5 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 5 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
MoReWeb-v0.5.1-895-gd4c3d74 on branch master
