Test Date: 2016-05-24 12:21
Analysis date: 2016-05-31 14:52
Analysis date: 2016-05-31 14:52
M-Y-E-NJ XRayHRQualification
Summary
| Module | Module | M-Y-E-NJ | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 53 | |
| BumpBondingDefects | Bump Bonding Defects | 53 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

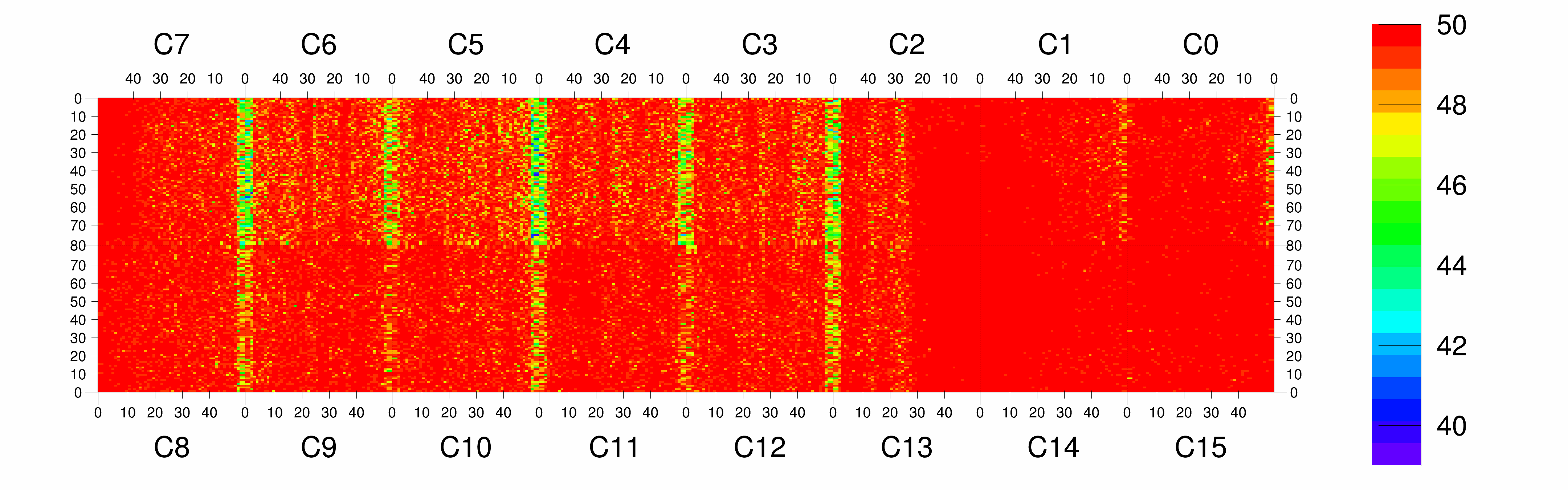

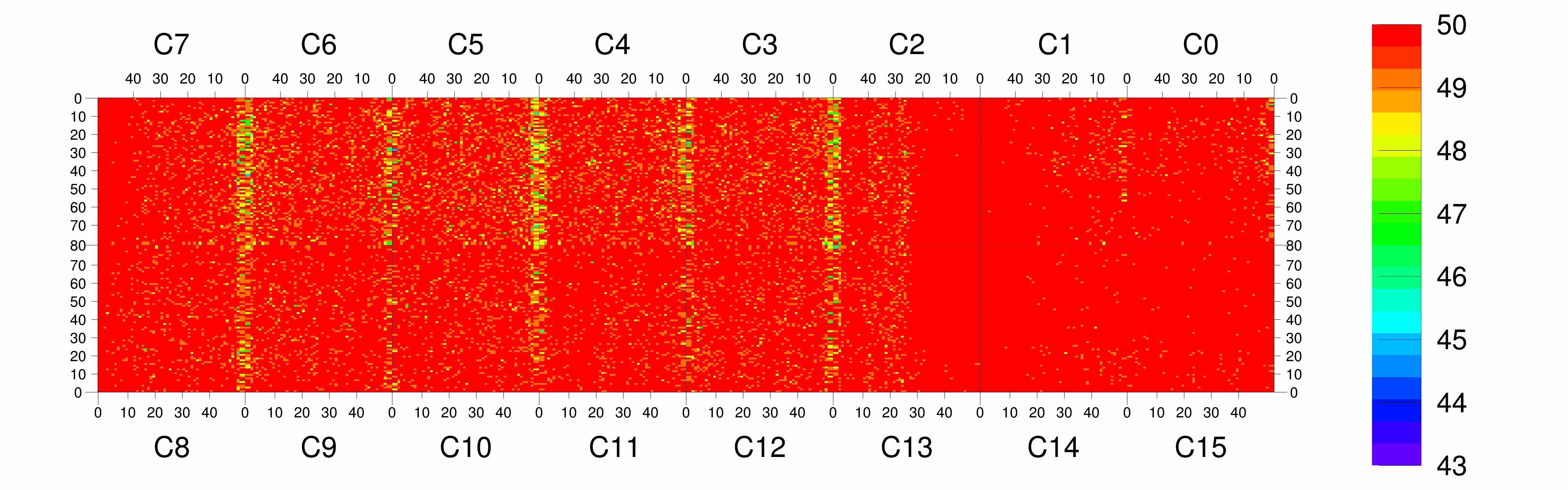

| Efficiency | Efficiency 20/50/80 | 99.94/99.81/99.67 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "40" | Rate "120" | BB def | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 99.96 | 99.90 | 99.70 | 0.13 | 23.3 | 75.0 | 0 | 0/0 | 0 |
|
Chip 1
|
A
|
9 | 99.95 | 99.88 | 99.62 | 0.15 | 16.4 | 52.8 | 9 | 0/0 | 0 |
|
Chip 2
|
A
|
7 | 99.96 | 99.89 | 99.67 | 0.07 | 25.7 | 82.5 | 7 | 0/0 | 0 |
|
Chip 3
|
A
|
0 | 99.94 | 99.88 | 99.68 | 0.12 | 41.7 | 133.9 | 0 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.95 | 99.87 | 99.57 | 0.09 | 43.9 | 140.4 | 0 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 99.98 | 99.86 | 99.46 | 0.14 | 45.1 | 144.7 | 0 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.94 | 99.88 | 99.67 | 0.13 | 44.4 | 142.1 | 0 | 0/0 | 0 |
|
Chip 7
|
A
|
0 | 99.96 | 99.88 | 99.61 | 0.10 | 30.7 | 98.9 | 0 | 0/0 | 0 |
|
Chip 8
|
A
|
0 | 99.95 | 99.87 | 99.62 | 0.24 | 29.2 | 94.1 | 0 | 0/0 | 0 |
|
Chip 9
|
A
|
0 | 99.94 | 99.91 | 99.81 | 0.12 | 38.0 | 121.5 | 0 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.94 | 99.90 | 99.79 | 0.13 | 38.0 | 121.8 | 0 | 0/0 | 0 |
|
Chip 11
|
A
|
0 | 99.95 | 99.90 | 99.72 | 0.16 | 32.5 | 104.3 | 0 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.83 | 99.81 | 99.77 | 22.59 | 35.3 | 113.4 | 0 | 0/0 | 0 |
|
Chip 13
|
A
|
8 | 99.96 | 99.89 | 99.67 | 0.06 | 20.6 | 66.3 | 8 | 0/0 | 0 |
|
Chip 14
|
A
|
29 | 99.93 | 98.97 | -1.00 | 0.01 | 8.5 | 27.7 | 29 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.97 | 99.64 | -1.00 | 0.02 | 9.2 | 30.0 | 0 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 112 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
