Test Date: 2016-05-09 12:56
Analysis date: 2016-05-23 15:10
Analysis date: 2016-05-23 15:10
M-Y-D-NB XRayHRQualification
Summary
| Module | Module | M-Y-D-NB | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 40 | |

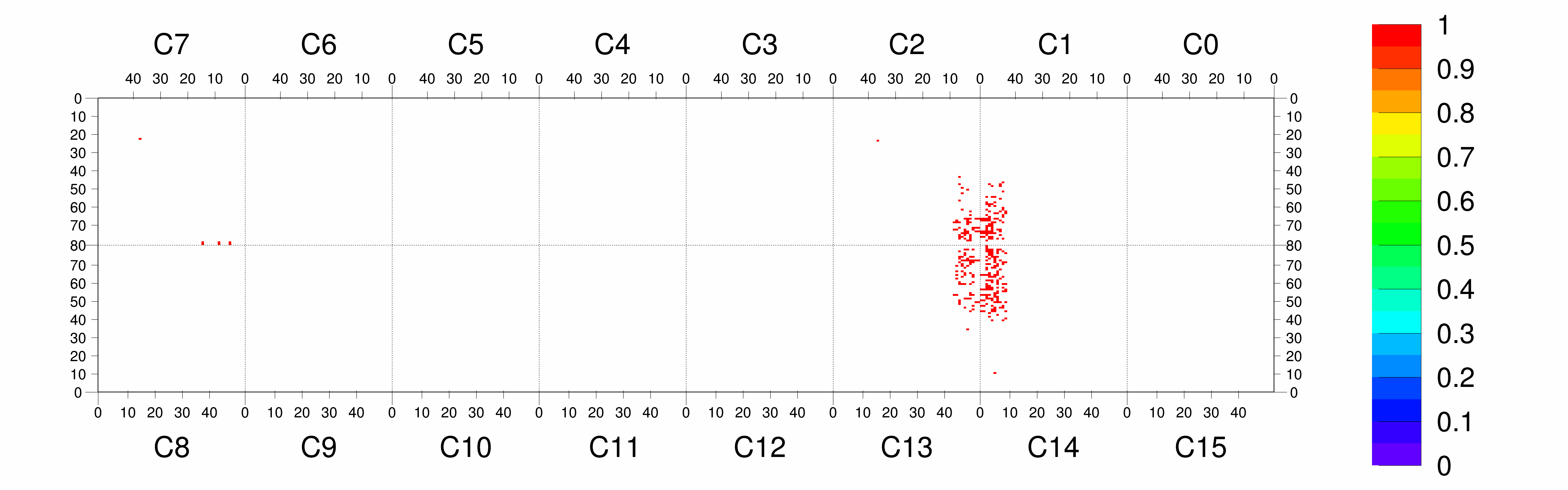

| BumpBondingDefects | Bump Bonding Defects | 40 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

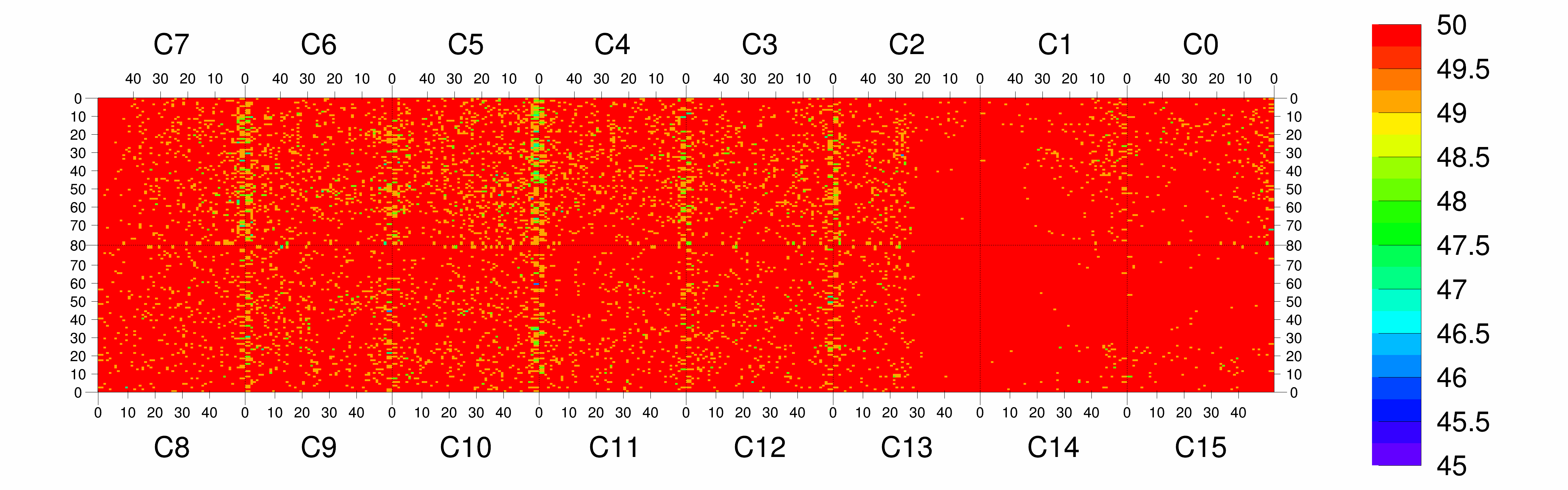

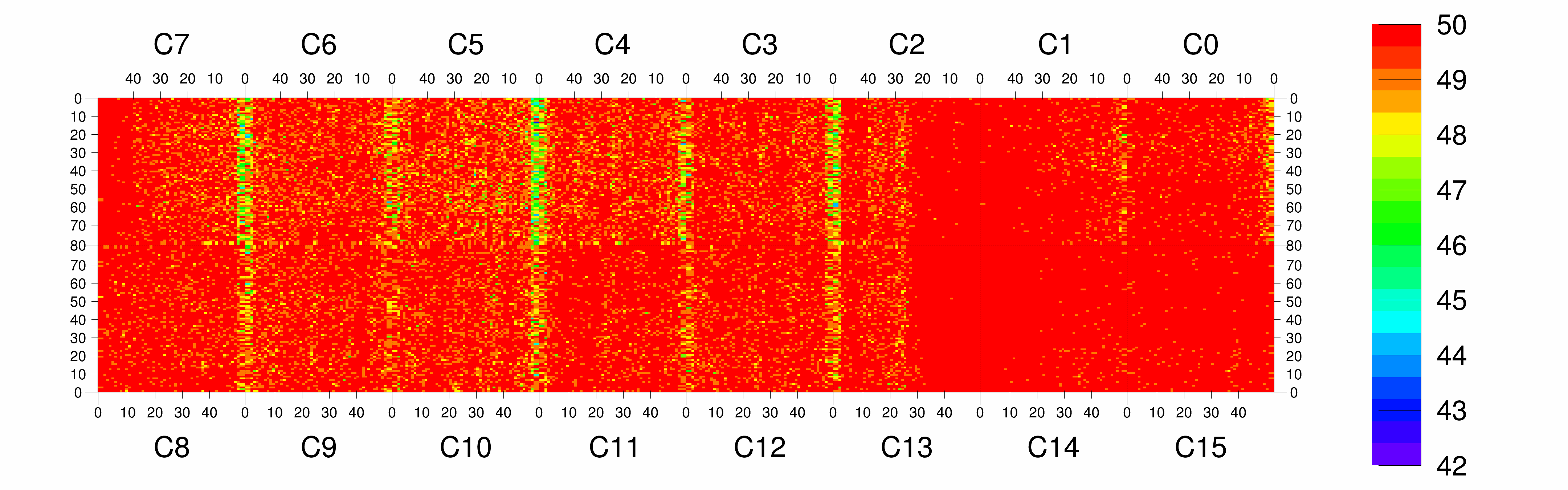

| Efficiency | Efficiency 20/50/80 | 99.95/99.86/99.67 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "120" | BB def | Rate "40" | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 99.95 | 99.87 | 99.59 | 0.09 | 62.0 | 0 | 20.3 | 0/0 | 0 |
|
Chip 1
|
A
|
9 | 99.96 | 99.86 | 99.56 | 0.17 | 45.6 | 9 | 15.0 | 0/0 | 0 |
|
Chip 2
|
A
|
5 | 99.96 | 99.90 | 99.72 | 0.07 | 72.0 | 5 | 23.6 | 0/0 | 0 |
|
Chip 3
|
A
|
0 | 99.95 | 99.90 | 99.73 | 0.06 | 110.0 | 0 | 36.2 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.94 | 99.90 | 99.75 | 0.11 | 118.2 | 0 | 38.9 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 99.94 | 99.87 | 99.62 | 0.15 | 122.3 | 0 | 40.2 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.95 | 99.91 | 99.77 | 0.11 | 121.0 | 0 | 39.8 | 0/0 | 0 |
|
Chip 7
|
A
|
4 | 99.96 | 99.90 | 99.69 | 0.11 | 90.7 | 4 | 29.7 | 0/0 | 0 |
|
Chip 8
|
A
|
0 | 99.96 | 99.90 | 99.69 | 0.10 | 83.5 | 0 | 27.4 | 0/0 | 0 |
|
Chip 9
|
A
|
0 | 99.95 | 99.87 | 99.58 | 0.20 | 92.5 | 0 | 30.4 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.94 | 99.88 | 99.66 | 0.09 | 94.4 | 0 | 31.0 | 0/0 | 0 |
|
Chip 11
|
A
|
0 | 99.94 | 99.89 | 99.69 | 0.14 | 81.7 | 0 | 26.9 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.95 | 99.88 | 99.65 | 0.13 | 85.4 | 0 | 28.1 | 0/0 | 0 |
|
Chip 13
|
A
|
3 | 99.95 | 99.88 | 99.65 | 0.19 | 49.3 | 3 | 16.1 | 0/0 | 0 |
|
Chip 14
|
A
|
19 | 99.96 | 99.42 | -1.00 | 0.02 | 21.1 | 19 | 6.9 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.98 | 99.97 | -1.00 | 0.02 | 28.0 | 0 | 9.2 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 8 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
