Test Date: 2016-09-12 13:18
Analysis date: 2016-09-28 16:23
Analysis date: 2016-09-28 16:23
M-Q-A-07 XRayHRQualification
Summary
| Module | Module | M-Q-A-07 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 93 | |
| BumpBondingDefects | Bump Bonding Defects | 93 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

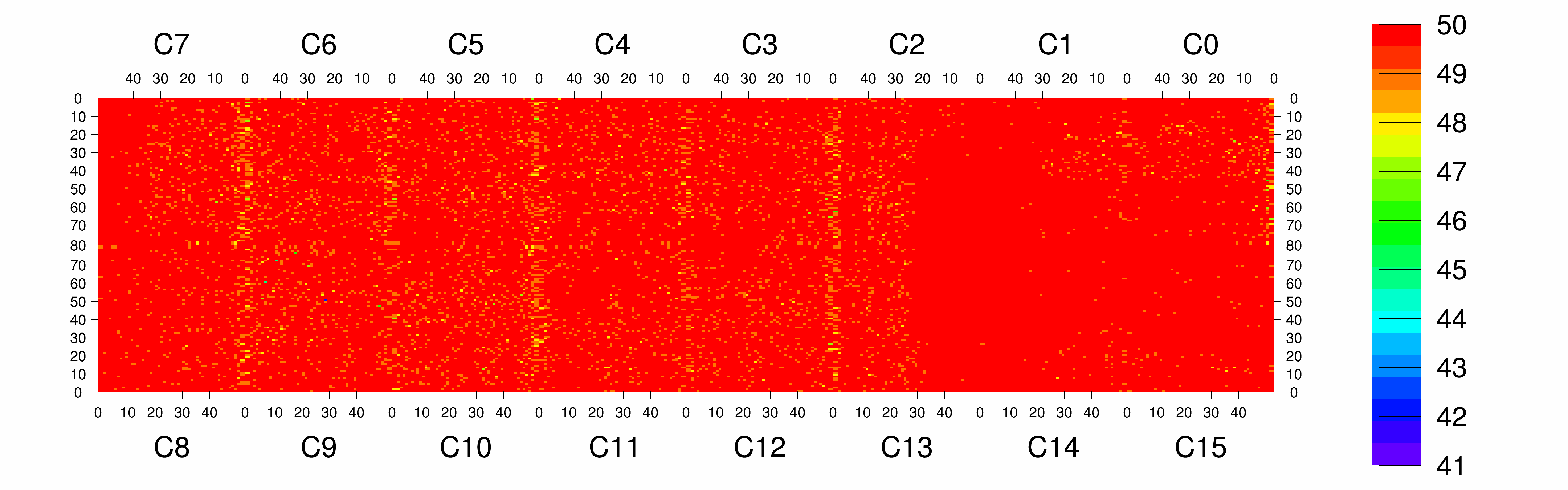

| Efficiency | Efficiency 20/50/80 | 99.96/99.84/99.64 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "40" | Rate "120" | BB def | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 99.95 | 99.86 | 99.54 | 0.12 | 18.8 | 59.6 | 0 | 0/0 | 0 |
|
Chip 1
|
A
|
26 | 99.96 | 99.91 | 99.71 | 0.09 | 12.0 | 38.1 | 26 | 0/0 | 0 |
|
Chip 2
|
A
|
5 | 99.96 | 99.89 | 99.63 | 0.09 | 18.3 | 58.1 | 5 | 0/0 | 0 |
|
Chip 3
|
A
|
0 | 99.96 | 99.90 | 99.72 | 0.09 | 29.1 | 92.1 | 0 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.96 | 99.90 | 99.70 | 0.09 | 30.7 | 97.2 | 0 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 99.95 | 99.89 | 99.69 | 0.12 | 30.8 | 97.5 | 0 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.95 | 99.89 | 99.67 | 0.14 | 30.8 | 97.4 | 0 | 0/0 | 0 |
|
Chip 7
|
A
|
0 | 99.96 | 99.87 | 99.58 | 0.21 | 22.1 | 70.0 | 0 | 0/0 | 0 |
|
Chip 8
|
A
|
0 | 99.96 | 99.89 | 99.68 | 0.16 | 21.4 | 67.9 | 0 | 0/0 | 0 |
|
Chip 9
|
A
|
1 | 99.94 | 99.88 | 99.68 | 0.17 | 30.0 | 95.0 | 1 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.94 | 99.87 | 99.64 | 0.14 | 29.9 | 94.8 | 0 | 0/0 | 0 |
|
Chip 11
|
A
|
0 | 99.96 | 99.87 | 99.60 | 0.12 | 23.6 | 74.8 | 0 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.96 | 99.87 | 99.59 | 0.13 | 24.7 | 78.2 | 0 | 0/0 | 0 |
|
Chip 13
|
A
|
11 | 99.96 | 99.87 | 99.57 | 0.13 | 15.4 | 49.0 | 11 | 0/0 | 0 |
|
Chip 14
|
A
|
50 | 99.96 | 99.47 | -1.00 | 0.02 | 5.7 | 18.3 | 50 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.96 | 99.53 | -1.00 | 0.02 | 6.4 | 20.3 | 0 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 12 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
