Test Date: 1973-11-29 16:33
Analysis date: 2016-09-07 12:30
Analysis date: 2016-09-07 12:30
M-Q-6-47 XRayHRQualification
Summary
| Module | Module | M-Q-6-47 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 5/2/9 | |
| PixelDefects | Total Pixel Defects | 3 | |
| BumpBondingDefects | Bump Bonding Defects | 3 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 9 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 2 | |

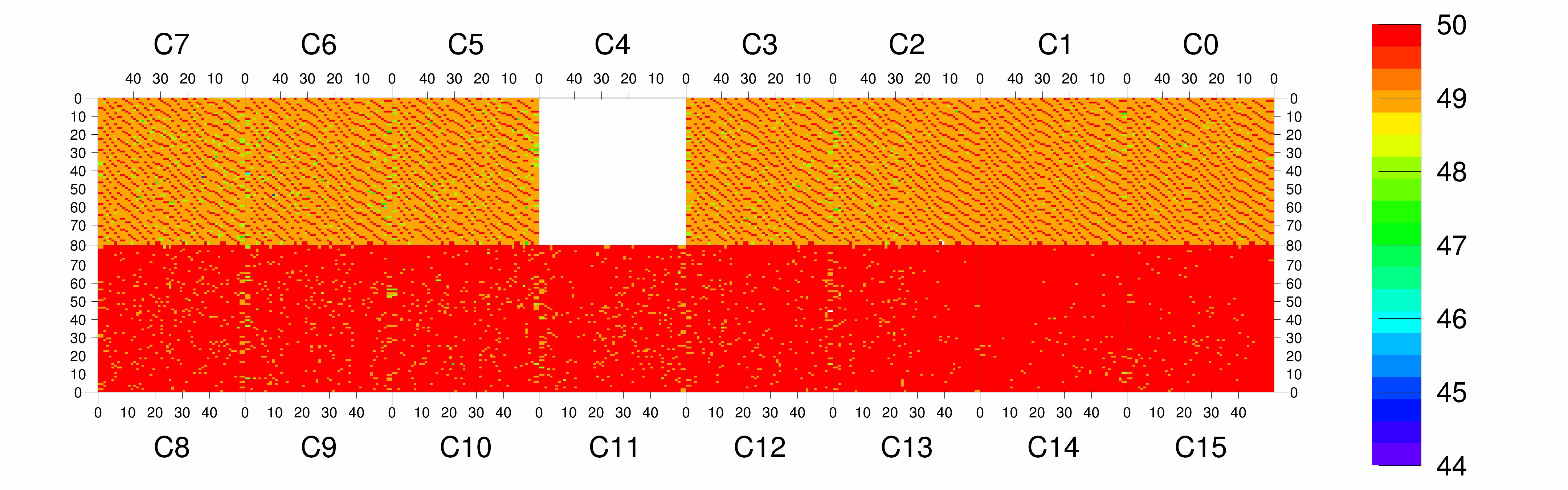

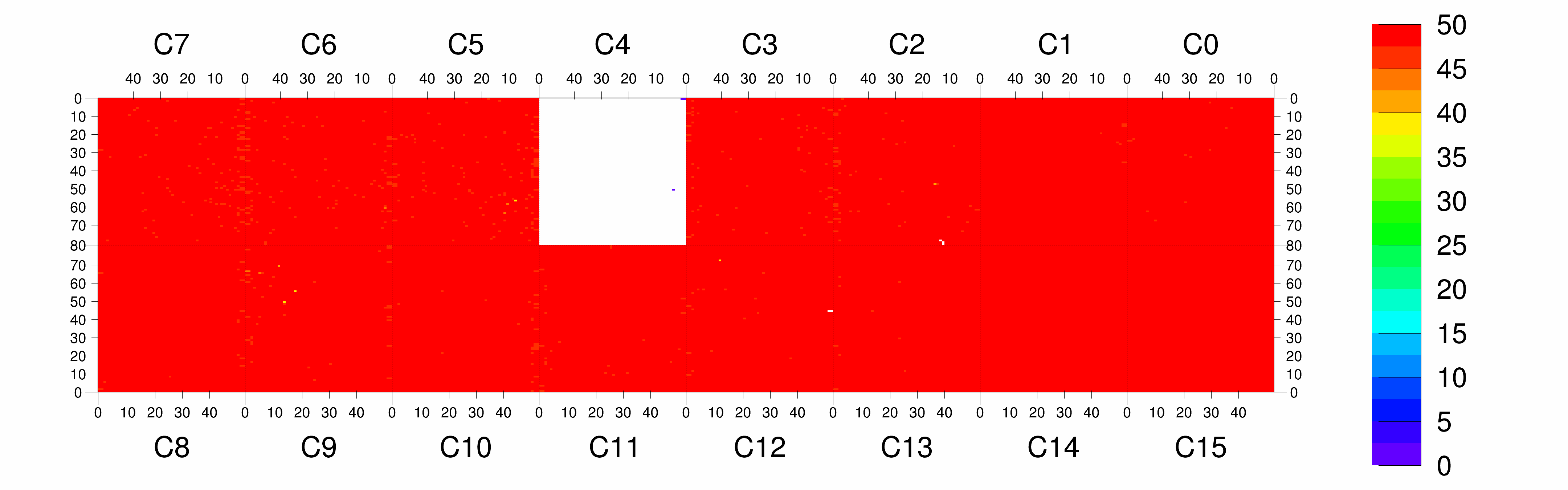

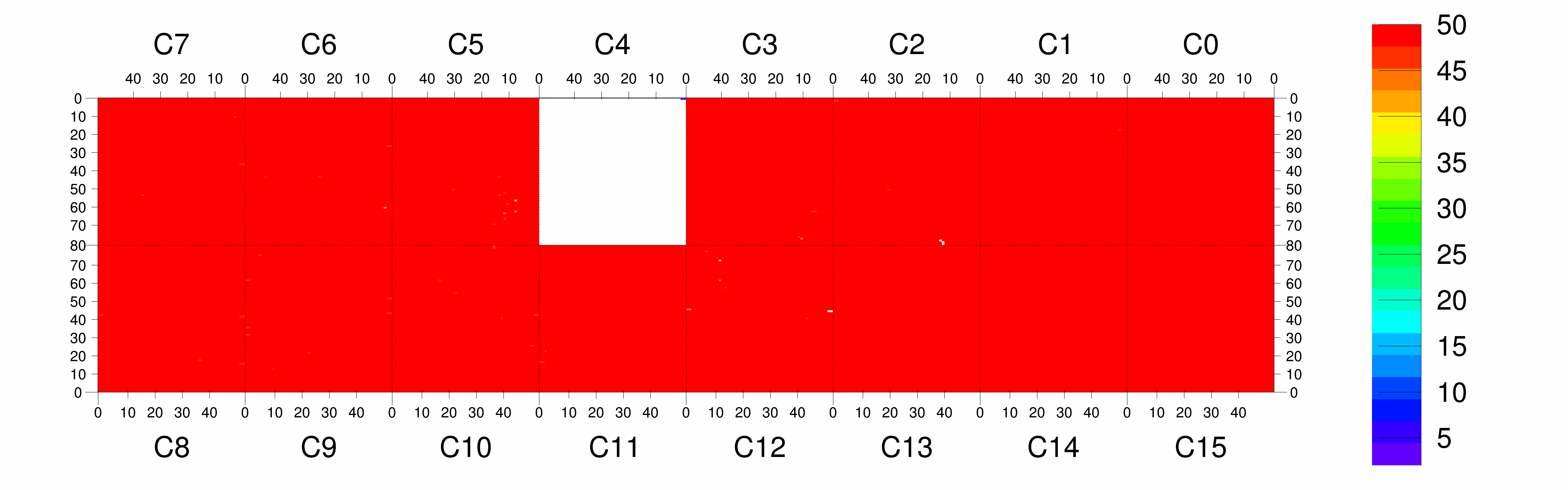

| Efficiency | Efficiency 20/50/80 | 99.45/99.33/99.04 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "40" | Rate "120" | BB def | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
0 | 98.96 | 98.59 | 97.35 | 64.13 | 10.2 | 35.2 | 0 | 0/0 | 0 |
|
Chip 1
|
B
|
0 | 98.93 | 98.64 | 97.70 | 66.53 | 8.0 | 27.5 | 0 | 0/0 | 0 |
|
Chip 2
|
C
|
2 | 98.84 | 98.84 | 98.84 | 68.34 | 12.9 | 44.1 | 2 | 1/1 | 0 |
|
Chip 3
|
C
|
0 | 98.84 | 98.84 | 98.84 | 61.84 | 19.6 | 66.7 | 0 | 1/1 | 0 |
|
Chip 4
|
A
|
0 | 100.00 | 99.94 | 99.74 | 0.00 | 1.7 | 3.8 | 0 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 98.68 | 98.68 | 98.68 | 56.65 | 20.9 | 71.0 | 0 | 0/0 | 0 |
|
Chip 6
|
C
|
0 | 98.78 | 98.78 | 98.78 | 62.24 | 20.6 | 70.2 | 0 | 1/1 | 0 |
|
Chip 7
|
C
|
0 | 98.60 | 98.60 | 98.60 | 54.18 | 19.6 | 66.9 | 0 | 2/2 | 0+0/5 |
|
Chip 8
|
C
|
0 | 99.91 | 99.87 | 99.72 | 0.24 | 22.1 | 75.4 | 0 | 4/4 | 0+0/10 |
|
Chip 9
|
C
|
0 | 99.95 | 99.88 | 99.65 | 0.17 | 22.4 | 76.5 | 0 | 3/3 | 0 |
|
Chip 10
|
C
|
0 | 99.94 | 99.88 | 99.67 | 0.13 | 22.3 | 76.1 | 0 | 1/1 | 0 |
|
Chip 11
|
C
|
0 | 99.92 | 99.86 | 99.67 | 0.20 | 20.9 | 71.5 | 0 | 2/2 | 0 |
|
Chip 12
|
C
|
1 | 99.96 | 99.89 | 99.66 | 0.14 | 20.7 | 70.8 | 1 | 1/1 | 0 |
|
Chip 13
|
A
|
0 | 99.97 | 99.88 | 99.61 | 0.07 | 13.7 | 47.1 | 0 | 0/0 | 0 |
|
Chip 14
|
A
|
0 | 99.96 | 99.56 | -1.00 | 0.01 | 7.7 | 26.8 | 0 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.96 | 99.62 | -1.00 | 0.03 | 9.4 | 32.6 | 0 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 371139 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 367935 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 766 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 367169 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
