Test Date: 2016-10-19 14:01
Analysis date: 2016-10-20 11:23
Analysis date: 2016-10-20 11:23
M-Q-6-43 XRayHRQualification
Summary
| Module | Module | M-Q-6-43 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 80 | |

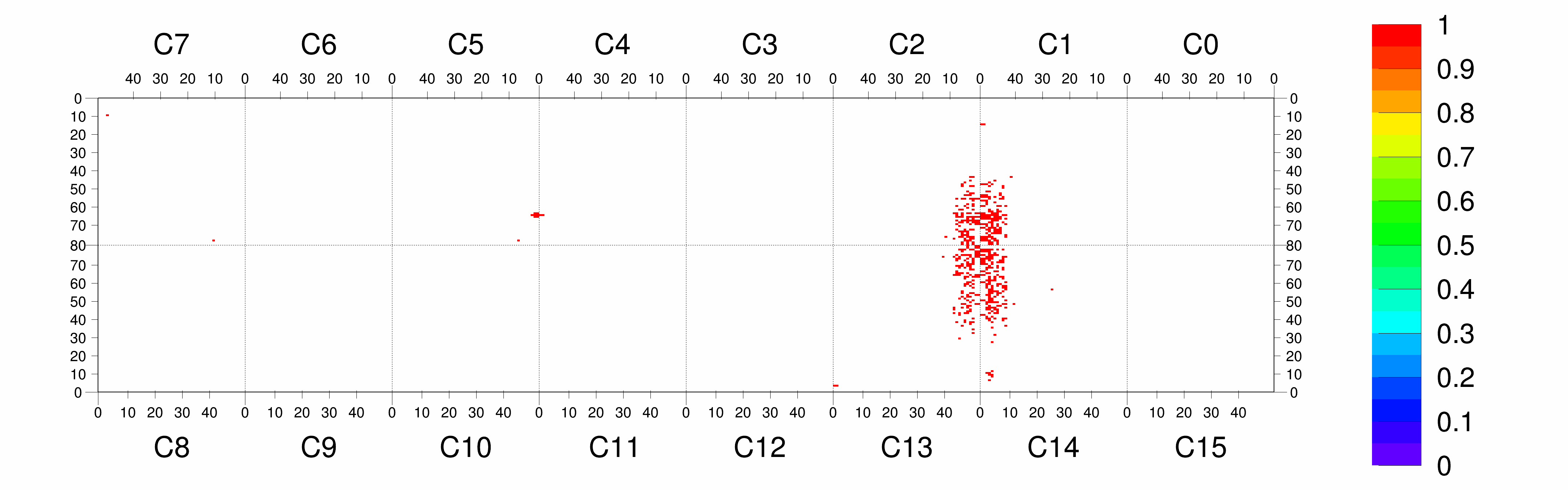

| BumpBondingDefects | Bump Bonding Defects | 80 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 20/50/80 | 99.95/99.81/99.63 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "120" | BB def | Rate "40" | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 99.95 | 99.87 | 99.60 | 0.11 | 62.3 | 0 | 19.4 | 0/0 | 0 |
|
Chip 1
|
A
|
16 | 99.96 | 99.89 | 99.67 | 0.12 | 40.4 | 16 | 12.5 | 0/0 | 0 |
|
Chip 2
|
A
|
15 | 99.96 | 99.88 | 99.63 | 0.06 | 62.1 | 15 | 19.3 | 0/0 | 0 |
|
Chip 3
|
A
|
0 | 99.96 | 99.88 | 99.62 | 0.20 | 98.6 | 0 | 30.6 | 0/0 | 0 |
|
Chip 4
|
A
|
1 | 99.95 | 99.87 | 99.61 | 0.13 | 103.7 | 1 | 32.2 | 0/0 | 0 |
|
Chip 5
|
A
|
4 | 99.96 | 99.87 | 99.59 | 0.15 | 106.0 | 4 | 33.0 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.94 | 99.89 | 99.70 | 0.18 | 102.8 | 0 | 32.0 | 0/0 | 0 |
|
Chip 7
|
A
|
1 | 99.95 | 99.86 | 99.57 | 0.13 | 74.1 | 1 | 23.0 | 0/0 | 0 |
|
Chip 8
|
A
|
0 | 99.96 | 99.88 | 99.63 | 0.14 | 72.5 | 0 | 22.5 | 0/0 | 0 |
|
Chip 9
|
A
|
0 | 99.96 | 99.90 | 99.72 | 0.12 | 89.3 | 0 | 27.7 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.96 | 99.88 | 99.61 | 0.14 | 87.3 | 0 | 27.1 | 0/0 | 0 |
|
Chip 11
|
A
|
0 | 99.95 | 99.87 | 99.63 | 0.21 | 75.0 | 0 | 23.3 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.93 | 99.86 | 99.63 | 0.21 | 80.3 | 0 | 25.0 | 0/0 | 0 |
|
Chip 13
|
A
|
18 | 99.95 | 99.87 | 99.59 | 0.15 | 45.6 | 18 | 14.1 | 0/0 | 0 |
|
Chip 14
|
A
|
25 | 99.94 | 99.12 | -1.00 | 0.02 | 19.1 | 25 | 5.9 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.95 | 99.50 | -1.00 | 0.03 | 22.8 | 0 | 7.0 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
MoReWeb-v0.5.1-904-gd94b9f2 on branch master
