Test Date: 2016-09-14 13:55
Analysis date: 2016-09-26 11:38
M-Q-4-45 XRayHRQualification
Chips

Overview

Summary
Module Module M-Q-4-45
Grade Grade C
ManualGrade Manual Grade None
ROCGrades ROC Grades A/B/C 15/0/1
PixelDefects Total Pixel Defects 362
BumpBondingDefects Bump Bonding Defects 362
NoisyPixels Noisy Pixels 0
HotPixelDefects Hot Pixels 0
ROCsWithReadoutProblems ROCs with r/o problems 0
ROCsWithUniformityProblems ROCs with unif problems 1
Efficiency Efficiency 20/50/80 99.95/99.83/99.65 %
Noise Mean Noise -1 e-
Summary ROCs
ROC Grade Defects Eff 20 Eff 50 Eff 80 Eff chi2 Rate "40" Rate "120" BB def RO prob Unif. prob
Chip 0
A
 0 99.96 99.85 99.48 0.09 16.8 54.8 0 0/0 0
Chip 1
A
 31 99.96 99.90 99.67 0.13 10.4 34.0 31 0/0 0
Chip 2
A
 2 99.96 99.87 99.57 0.07 15.9 51.9 2 0/0 0
Chip 3
A
 0 99.96 99.90 99.69 0.13 24.0 78.0 0 0/0 0
Chip 4
A
 0 99.95 99.88 99.63 0.18 26.8 87.2 0 0/0 0
Chip 5
A
 0 99.95 99.89 99.66 0.12 27.0 87.8 0 0/0 0
Chip 6
A
 0 99.96 99.90 99.69 0.16 27.8 90.2 0 0/0 0
Chip 7
A
 0 99.97 99.89 99.64 0.09 20.3 66.0 0 0/0 0
Chip 8
A
 0 99.96 99.88 99.62 0.09 20.7 67.3 0 0/0 0
Chip 9
A
 0 99.95 99.87 99.61 0.20 27.1 88.1 0 0/0 0
Chip 10
C
 1 99.94 99.87 99.63 0.12 28.1 91.0 1 0/0 1+40/3
Chip 11
A
 0 99.84 99.83 99.81 28.69 22.4 72.7 0 0/0 0
Chip 12
A
 0 99.96 99.89 99.68 0.10 24.4 79.3 0 0/0 0
Chip 13
A
 291 99.95 99.90 99.73 0.13 13.7 44.5 291 0/0 0
Chip 14
A
 37 99.96 99.45 -1.00 0.01 5.6 18.2 37 0/0 0
Chip 15
A
 0 99.96 99.57 -1.00 0.01 6.3 20.7 0 0/0 0
Efficiency at 20 MHz/cm2
Efficiency at 50 MHz/cm2
Efficiency at 80 MHz/cm2

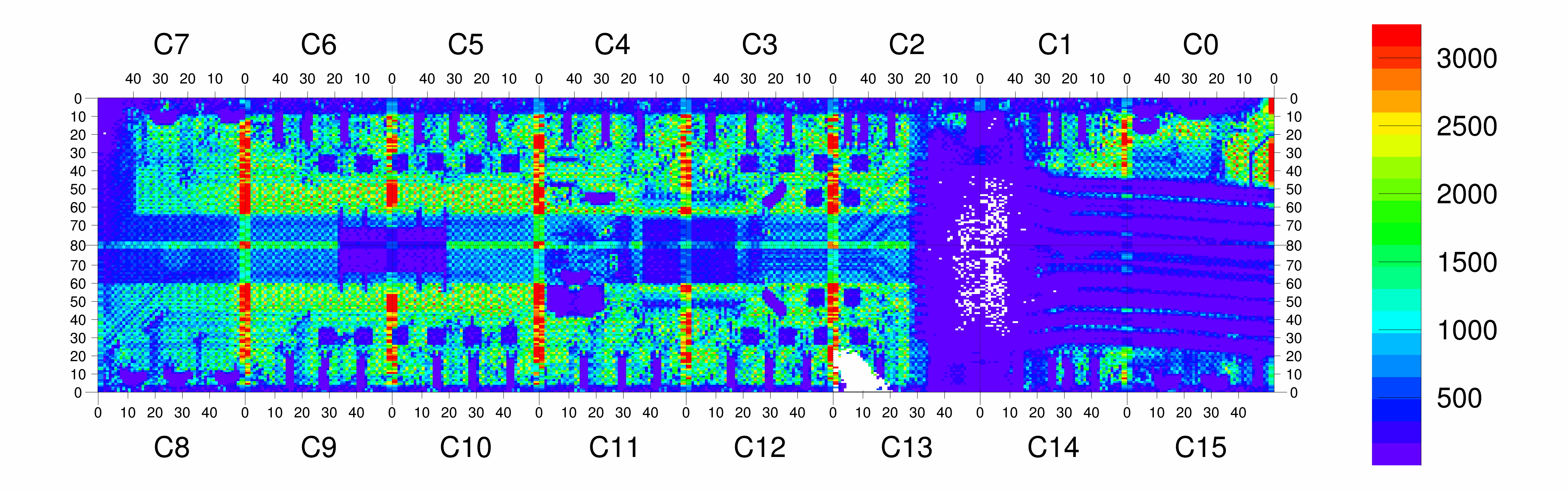

Hit Map 40
Hits distribution 40 inner/edge/corner

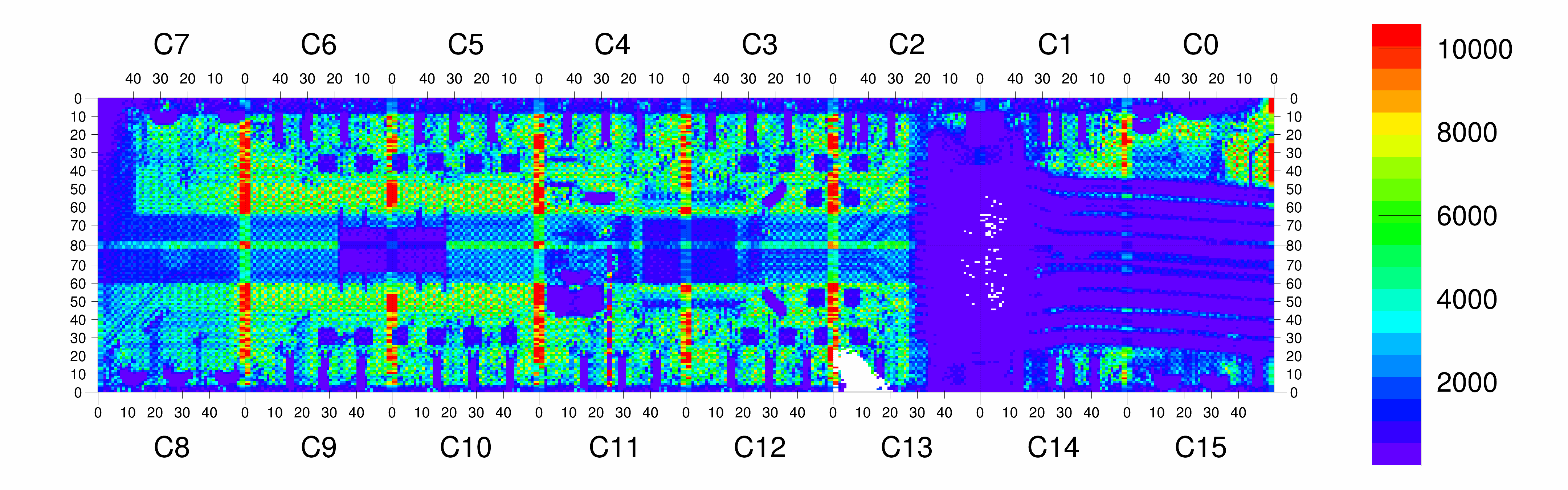

Hit Map 120
Hits distribution 120 inner/edge/corner

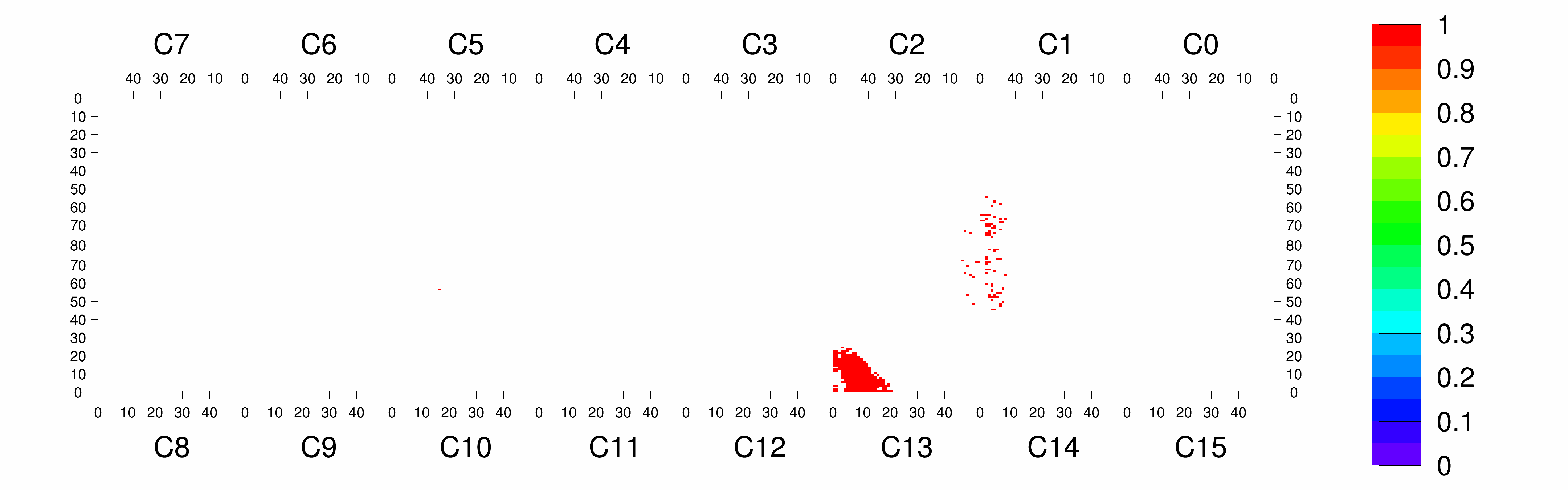

Bump Bonding Defects 40
BB defects 40

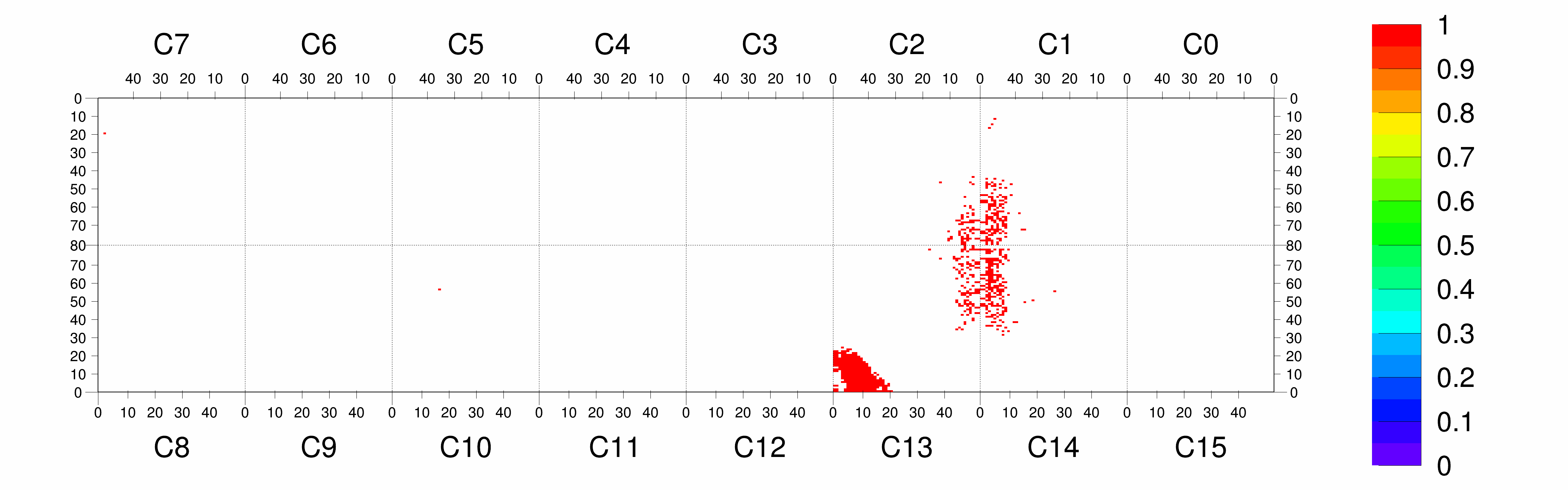

Bump Bonding Defects 120
BB defects 120

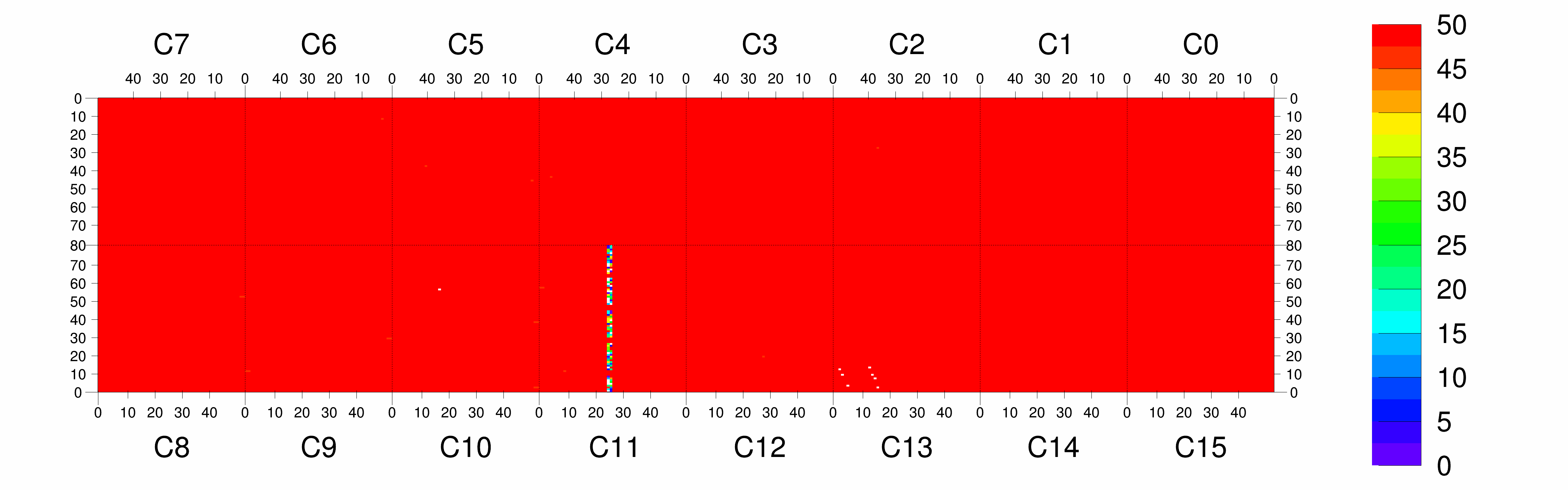

HR Efficiency Map 40
Efficiency distribution 40
HR Efficiency Map 80
Efficiency distribution 80
HR Efficiency Map 120
Efficiency distribution 120
Errors
nCriticals # Criticals 0
nErrors # Errors 0
nWarnings # Warnings 6
channel_0_count Channel 0 0
channel_1_count Channel 1 0
channel_2_count Channel 2 0
channel_3_count Channel 3 0
message_tokenchain_count Token Chain Length 0
message_eventid_count Event ID mismatch 0
message_readback_count Readback start marker 0
message_notokenpass_count has NoTokenPass 0
message_datasize_count Data size criticals 0
message_missingevents_count Missing Event criticals 0
message_usbtimeout_count USB criticals 0
message_deser400_count DESER400 failure 0
message_daqerror_count DAQ error 0
Logfile

Overview

MoReWeb-v0.5.1-904-gd94b9f2 on branch master
