Test Date: 2016-09-15 10:19
Analysis date: 2016-09-23 17:08
Analysis date: 2016-09-23 17:08
M-Q-1-13 XRayHRQualification
Summary
| Module | Module | M-Q-1-13 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 87 | |
| BumpBondingDefects | Bump Bonding Defects | 87 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

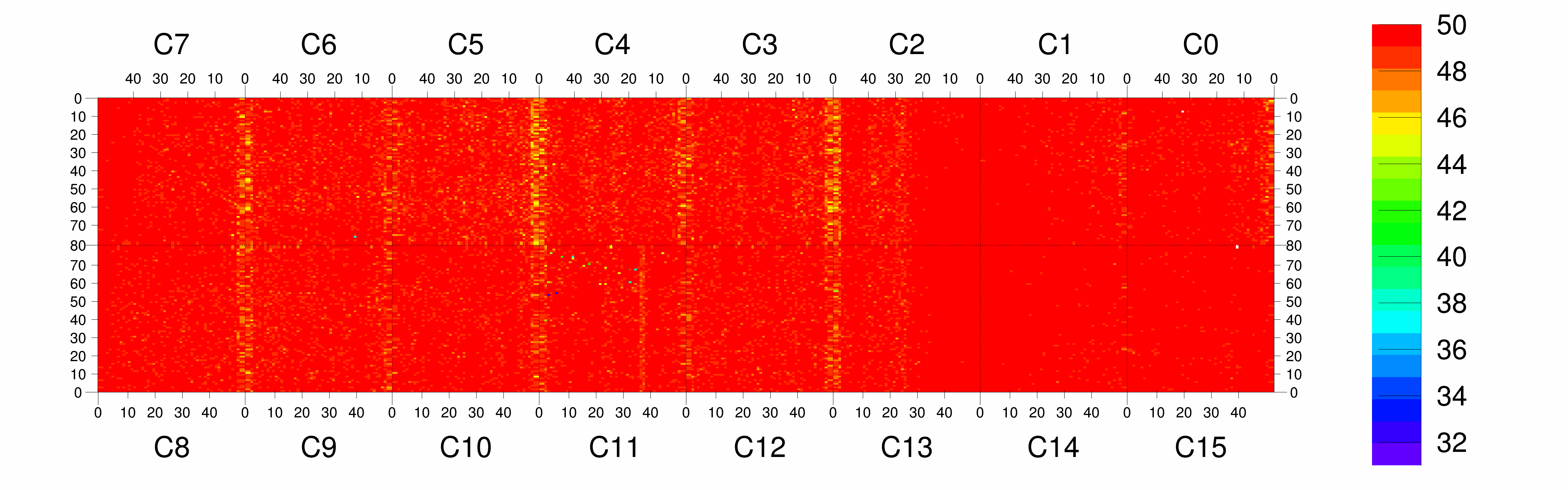

| Efficiency | Efficiency 20/50/80 | 99.95/99.81/99.62 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "40" | Rate "120" | BB def | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 99.96 | 99.87 | 99.57 | 0.11 | 20.9 | 55.9 | 1 | 0/0 | 0 |
|
Chip 1
|
A
|
18 | 99.96 | 99.88 | 99.61 | 0.10 | 13.6 | 36.4 | 18 | 0/0 | 0 |
|
Chip 2
|
A
|
9 | 99.97 | 99.89 | 99.63 | 0.07 | 21.1 | 56.7 | 9 | 0/0 | 0 |
|
Chip 3
|
A
|
0 | 99.93 | 99.86 | 99.62 | 0.28 | 34.0 | 91.1 | 0 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.95 | 99.87 | 99.60 | 0.15 | 35.2 | 94.2 | 0 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 99.93 | 99.87 | 99.65 | 0.14 | 37.3 | 99.8 | 0 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.96 | 99.89 | 99.69 | 0.11 | 37.0 | 99.0 | 0 | 0/0 | 0 |
|
Chip 7
|
A
|
0 | 99.96 | 99.90 | 99.69 | 0.14 | 25.5 | 68.4 | 0 | 0/0 | 0 |
|
Chip 8
|
A
|
0 | 99.96 | 99.87 | 99.57 | 0.16 | 24.3 | 65.5 | 0 | 0/0 | 0 |
|
Chip 9
|
A
|
0 | 99.97 | 99.89 | 99.62 | 0.10 | 31.2 | 83.7 | 0 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.95 | 99.89 | 99.68 | 0.10 | 30.6 | 81.8 | 0 | 0/0 | 0 |
|
Chip 11
|
A
|
0 | 99.93 | 99.84 | 99.55 | 1.19 | 26.9 | 72.0 | 0 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.95 | 99.87 | 99.61 | 0.13 | 27.4 | 73.5 | 0 | 0/0 | 0 |
|
Chip 13
|
A
|
15 | 99.96 | 99.88 | 99.64 | 0.17 | 16.7 | 44.8 | 15 | 0/0 | 0 |
|
Chip 14
|
A
|
43 | 99.93 | 99.00 | -1.00 | 0.02 | 6.3 | 17.0 | 43 | 0/0 | 0 |
|
Chip 15
|
A
|
1 | 99.97 | 99.74 | -1.00 | 0.03 | 8.6 | 23.1 | 1 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
