Test Date: 2016-07-13 13:30
Analysis date: 2016-07-18 18:32
Analysis date: 2016-07-18 18:32
M-P-4-41 XRayHRQualification
Summary
| Module | Module | M-P-4-41 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 97 | |
| BumpBondingDefects | Bump Bonding Defects | 97 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 20/50/80 | 99.95/99.82/99.64 | % |
| Noise | Mean Noise | -1 | e- |

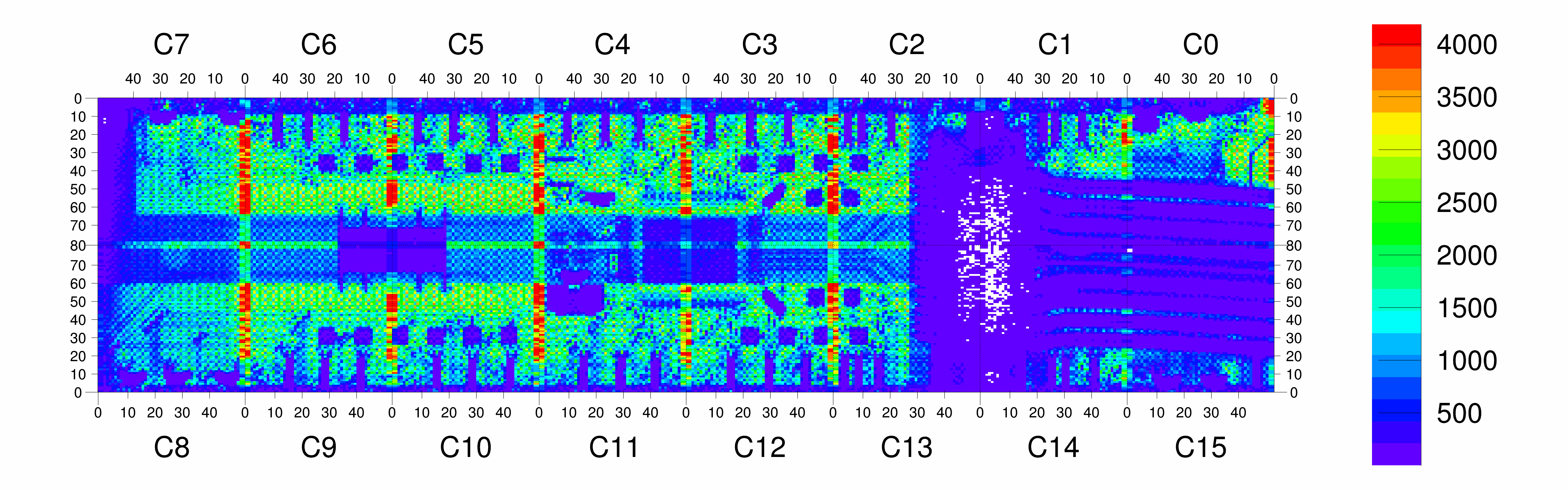

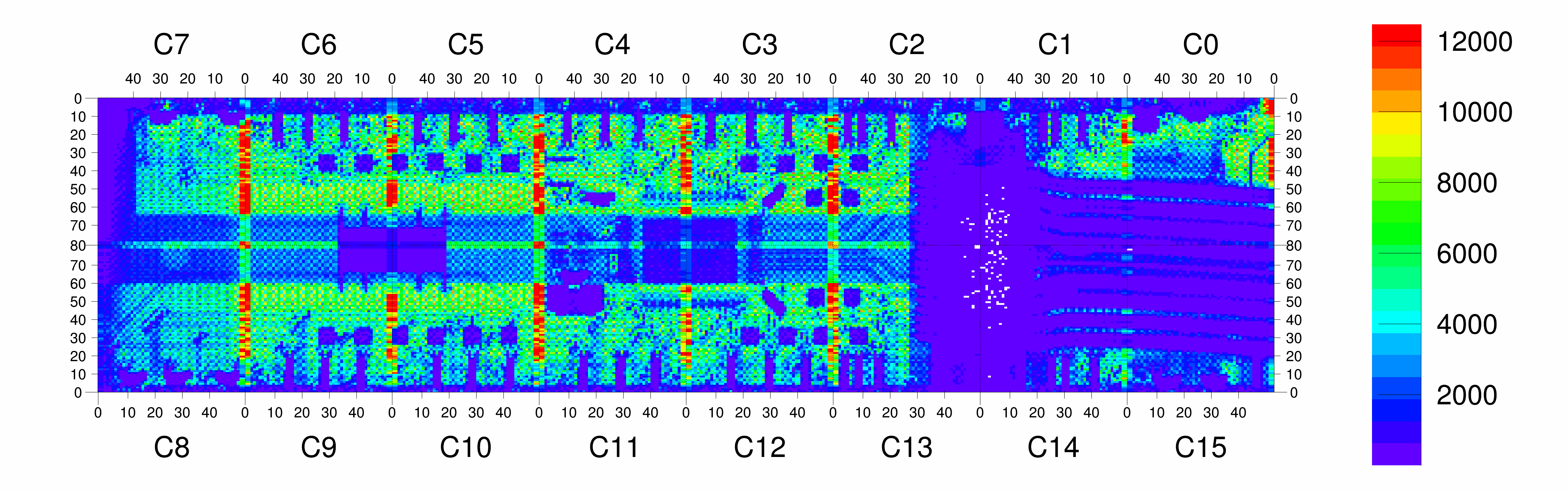

Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "40" | Rate "120" | BB def | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 99.95 | 99.87 | 99.58 | 0.07 | 20.3 | 60.9 | 0 | 0/0 | 0 |
|
Chip 1
|
A
|
33 | 99.96 | 99.88 | 99.62 | 0.12 | 12.6 | 37.9 | 33 | 0/0 | 0 |
|
Chip 2
|
A
|
5 | 99.94 | 99.90 | 99.77 | 0.44 | 21.1 | 63.4 | 5 | 0/0 | 0 |
|
Chip 3
|
A
|
1 | 99.95 | 99.88 | 99.63 | 0.11 | 32.8 | 98.1 | 1 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.96 | 99.88 | 99.60 | 0.18 | 35.0 | 104.7 | 0 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 99.95 | 99.91 | 99.75 | 0.08 | 35.5 | 106.0 | 0 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.96 | 99.89 | 99.65 | 0.12 | 35.4 | 105.8 | 0 | 0/0 | 0 |
|
Chip 7
|
A
|
0 | 99.96 | 99.88 | 99.63 | 0.08 | 24.2 | 72.6 | 0 | 0/0 | 0 |
|
Chip 8
|
A
|
0 | 99.96 | 99.86 | 99.56 | 0.21 | 24.0 | 72.0 | 0 | 0/0 | 0 |
|
Chip 9
|
A
|
0 | 99.95 | 99.88 | 99.67 | 0.14 | 32.6 | 97.7 | 0 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.95 | 99.89 | 99.69 | 0.09 | 32.6 | 97.5 | 0 | 0/0 | 0 |
|
Chip 11
|
A
|
0 | 99.95 | 99.87 | 99.58 | 0.19 | 26.4 | 79.2 | 0 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.95 | 99.87 | 99.62 | 0.12 | 27.8 | 83.3 | 0 | 0/0 | 0 |
|
Chip 13
|
A
|
10 | 99.95 | 99.88 | 99.64 | 0.10 | 16.9 | 50.8 | 10 | 0/0 | 0 |
|
Chip 14
|
A
|
47 | 99.95 | 99.34 | -1.00 | 0.02 | 6.0 | 18.1 | 47 | 0/0 | 0 |
|
Chip 15
|
A
|
1 | 99.95 | 99.44 | -1.00 | 0.03 | 6.9 | 20.9 | 1 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 27 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
