Test Date: 2016-05-27 10:38
Analysis date: 2016-08-11 12:24
Analysis date: 2016-08-11 12:24
M-N-3-17 XRayHRQualification
Summary
| Module | Module | M-N-3-17 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 98 | |

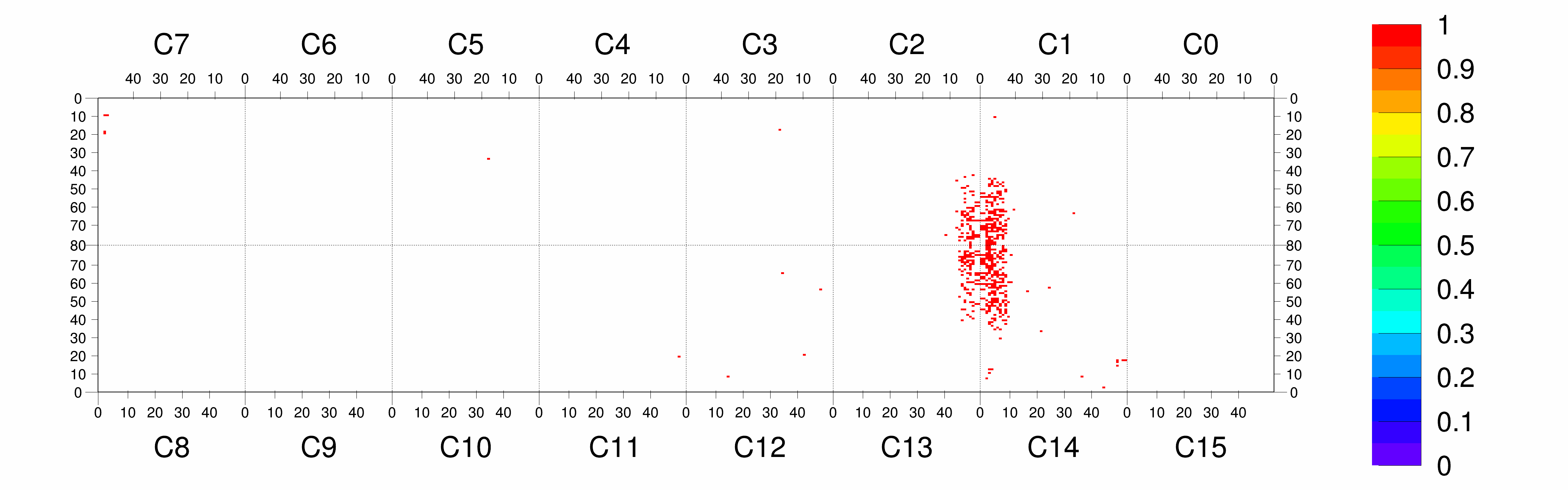

| BumpBondingDefects | Bump Bonding Defects | 98 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

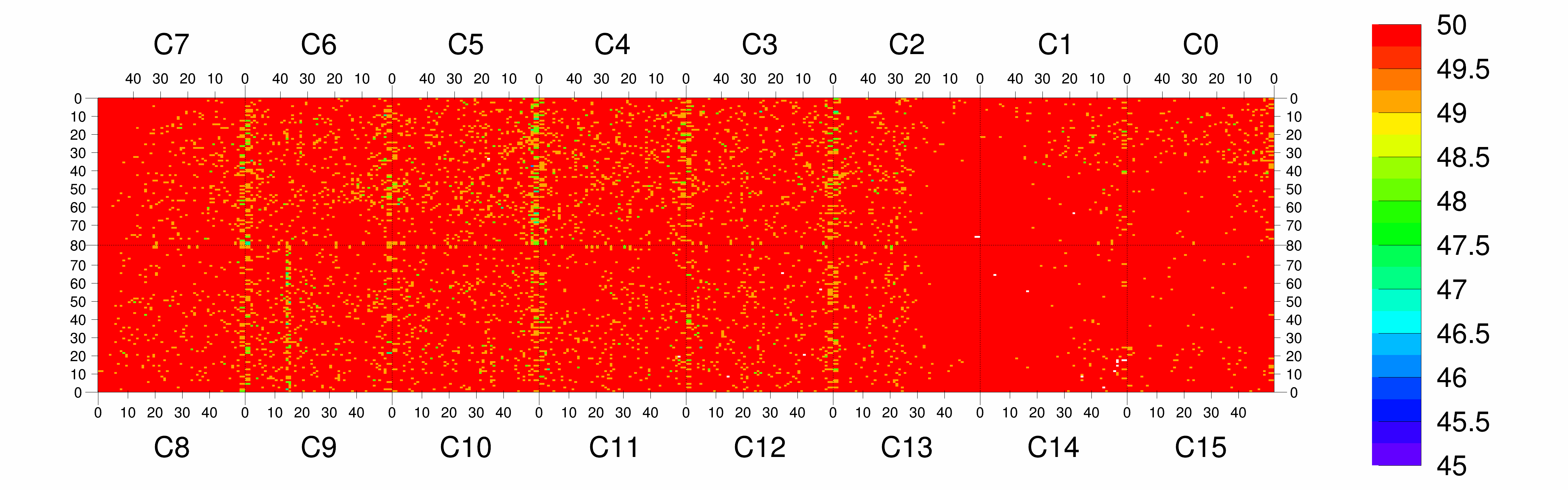

| Efficiency | Efficiency 20/50/80 | 99.96/99.83/99.66 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "40" | Rate "120" | BB def | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 99.96 | 99.89 | 99.66 | 0.09 | 19.7 | 61.2 | 0 | 0/0 | 0 |
|
Chip 1
|
A
|
27 | 99.96 | 99.89 | 99.66 | 0.06 | 13.3 | 41.2 | 27 | 0/0 | 0 |
|
Chip 2
|
A
|
6 | 99.96 | 99.89 | 99.67 | 0.12 | 19.7 | 61.1 | 6 | 0/0 | 0 |
|
Chip 3
|
A
|
1 | 99.96 | 99.90 | 99.70 | 0.13 | 32.5 | 100.8 | 1 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.95 | 99.90 | 99.72 | 0.09 | 34.9 | 107.9 | 0 | 0/0 | 0 |
|
Chip 5
|
A
|
1 | 99.94 | 99.87 | 99.65 | 0.15 | 33.0 | 101.9 | 1 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.97 | 99.90 | 99.68 | 0.12 | 32.4 | 100.3 | 0 | 0/0 | 0 |
|
Chip 7
|
A
|
0 | 99.97 | 99.91 | 99.70 | 0.12 | 22.4 | 69.5 | 0 | 0/0 | 0 |
|
Chip 8
|
A
|
0 | 99.97 | 99.89 | 99.66 | 0.12 | 20.7 | 64.3 | 0 | 0/0 | 0 |
|
Chip 9
|
A
|
0 | 99.92 | 99.86 | 99.65 | 3.09 | 27.7 | 85.9 | 0 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.95 | 99.87 | 99.61 | 0.16 | 27.7 | 85.8 | 0 | 0/0 | 0 |
|
Chip 11
|
A
|
1 | 99.95 | 99.88 | 99.63 | 0.12 | 23.8 | 73.9 | 1 | 0/0 | 0 |
|
Chip 12
|
A
|
4 | 99.95 | 99.87 | 99.60 | 0.12 | 25.5 | 79.0 | 4 | 0/0 | 0 |
|
Chip 13
|
A
|
12 | 99.97 | 99.89 | 99.64 | 0.11 | 15.3 | 47.6 | 12 | 0/0 | 0 |
|
Chip 14
|
A
|
46 | 99.95 | 99.37 | -1.00 | 0.02 | 7.0 | 21.7 | 46 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.96 | 99.53 | -1.00 | 0.03 | 8.6 | 26.8 | 0 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 32 | |
| nWarnings | # Warnings | 4 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 4 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 4 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
MoReWeb-v0.5.1-904-gd94b9f2 on branch master
