Test Date: 2016-06-08 15:21
Analysis date: 2016-06-10 13:12
Analysis date: 2016-06-10 13:12
M-K-1-08 XRayHRQualification
Summary
| Module | Module | M-K-1-08 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 55 | |
| BumpBondingDefects | Bump Bonding Defects | 55 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

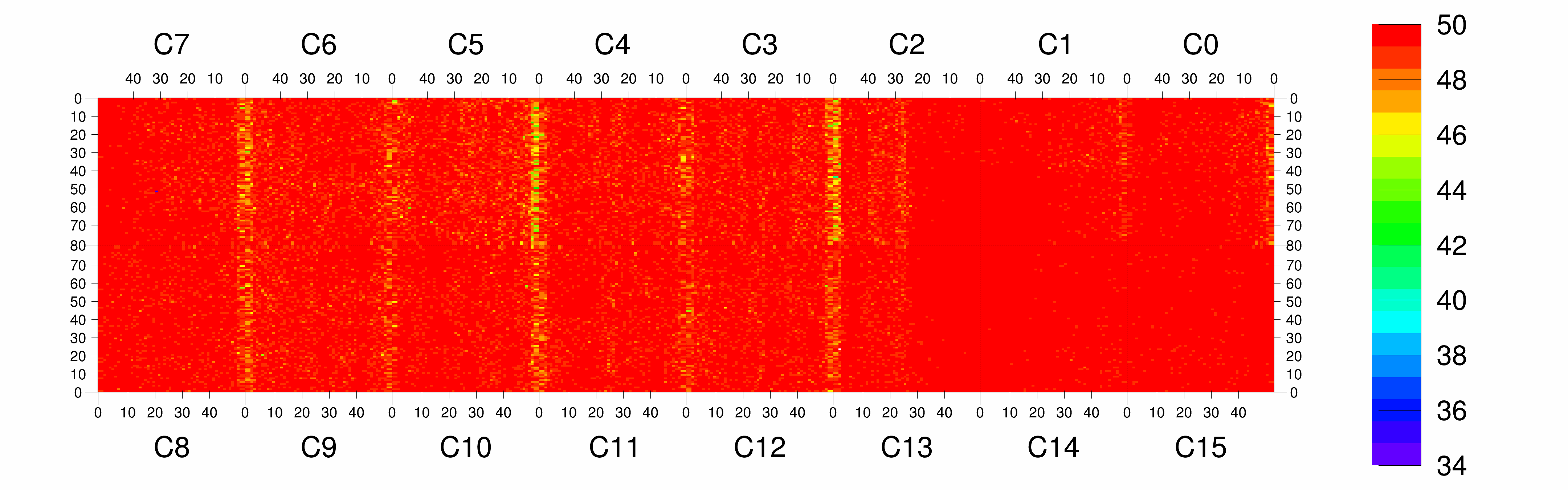

| Efficiency | Efficiency 20/50/80 | 99.96/99.85/99.67 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs

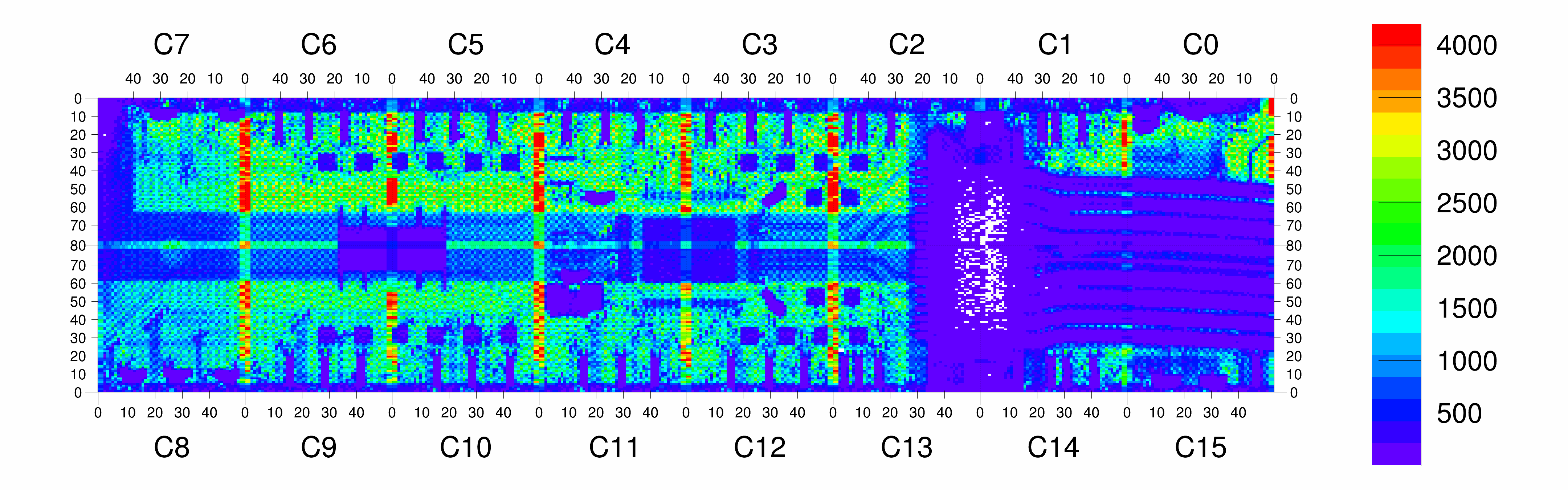

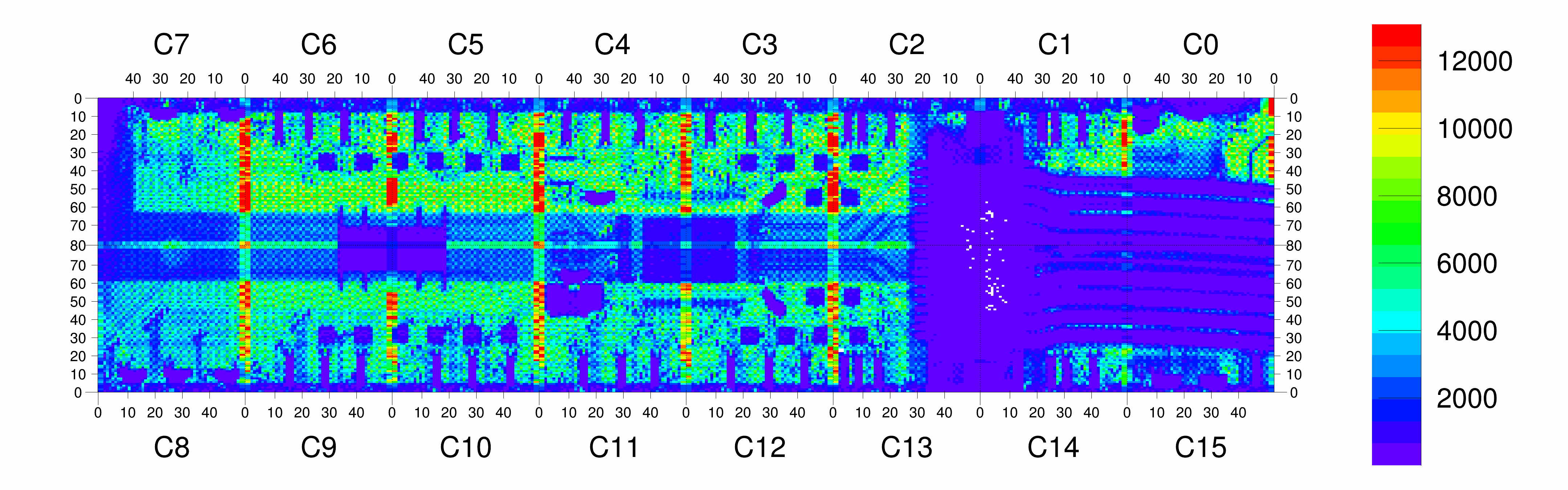

| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "40" | Rate "120" | BB def | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 99.95 | 99.88 | 99.62 | 0.12 | 19.3 | 60.2 | 0 | 0/0 | 0 |
|
Chip 1
|
A
|
13 | 99.96 | 99.86 | 99.53 | 0.12 | 13.7 | 42.9 | 13 | 0/0 | 0 |
|
Chip 2
|
A
|
4 | 99.96 | 99.89 | 99.64 | 0.09 | 21.6 | 67.3 | 4 | 0/0 | 0 |
|
Chip 3
|
A
|
0 | 99.96 | 99.91 | 99.73 | 0.08 | 32.8 | 101.8 | 0 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.96 | 99.92 | 99.78 | 0.07 | 36.0 | 112.0 | 0 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 99.95 | 99.88 | 99.65 | 0.07 | 36.9 | 114.9 | 0 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.95 | 99.92 | 99.81 | 0.10 | 37.1 | 115.3 | 0 | 0/0 | 0 |
|
Chip 7
|
A
|
0 | 99.95 | 99.90 | 99.73 | 0.13 | 26.0 | 81.0 | 0 | 0/0 | 0 |
|
Chip 8
|
A
|
0 | 99.96 | 99.90 | 99.69 | 0.07 | 24.9 | 77.7 | 0 | 0/0 | 0 |
|
Chip 9
|
A
|
0 | 99.95 | 99.88 | 99.65 | 0.09 | 30.1 | 93.8 | 0 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.96 | 99.91 | 99.73 | 0.12 | 29.0 | 90.5 | 0 | 0/0 | 0 |
|
Chip 11
|
A
|
0 | 99.96 | 99.88 | 99.63 | 0.11 | 25.4 | 79.2 | 0 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.96 | 99.88 | 99.61 | 0.17 | 27.0 | 84.4 | 0 | 0/0 | 0 |
|
Chip 13
|
A
|
8 | 99.96 | 99.88 | 99.63 | 0.14 | 15.9 | 49.8 | 8 | 0/0 | 0 |
|
Chip 14
|
A
|
30 | 99.96 | 99.50 | -1.00 | 0.03 | 6.7 | 21.0 | 30 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.97 | 99.66 | -1.00 | 0.02 | 7.8 | 24.5 | 0 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 22 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
