Test Date: 2016-02-23 15:45
Analysis date: 2016-05-24 09:59
Analysis date: 2016-05-24 09:59
M-J-3-25 XRayHRQualification
Summary
| Module | Module | M-J-3-25 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 16 | |
| BumpBondingDefects | Bump Bonding Defects | 16 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |

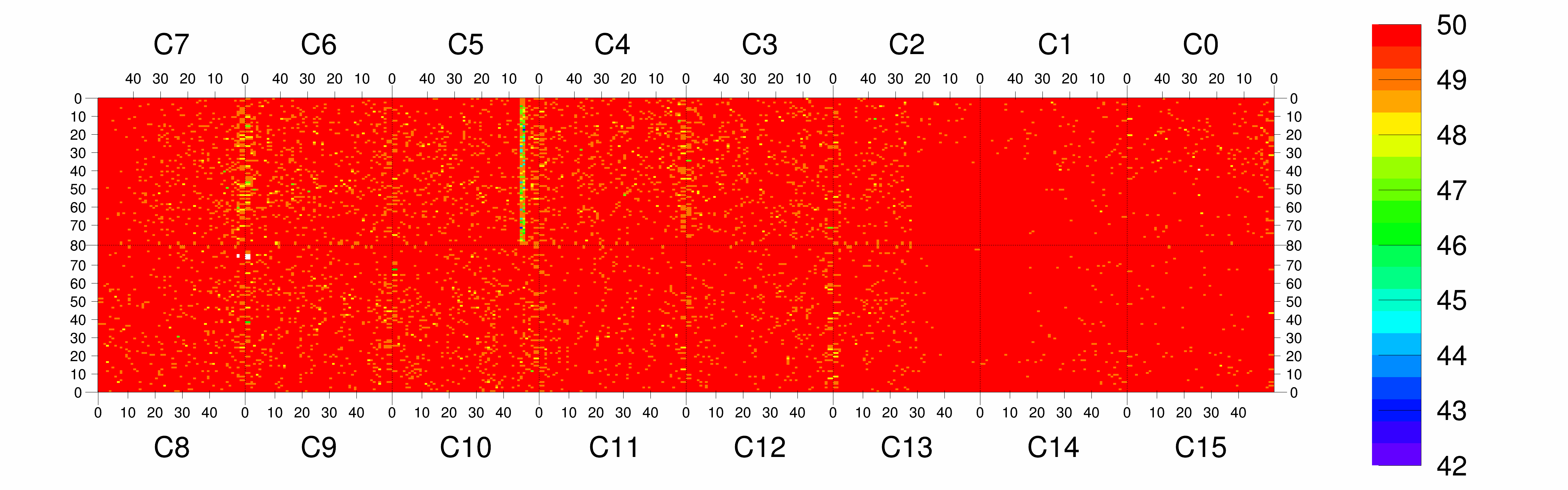

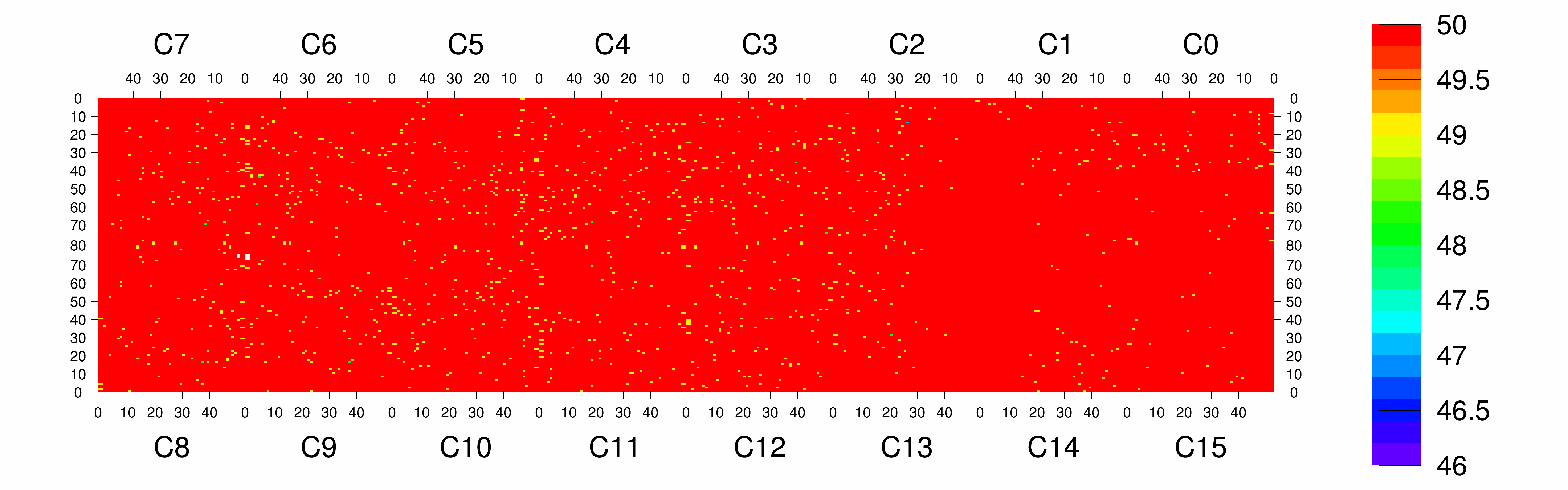

| Efficiency | Efficiency 20/50/80 | 99.96/99.82/99.60 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "120" | BB def | Rate "40" | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 99.96 | 99.86 | 99.51 | 0.07 | 36.1 | 2 | 13.4 | 0/0 | 0 |
|
Chip 1
|
A
|
0 | 99.97 | 99.89 | 99.63 | 0.06 | 24.3 | 0 | 9.0 | 0/0 | 0 |
|
Chip 2
|
A
|
0 | 99.96 | 99.91 | 99.75 | 0.09 | 42.6 | 0 | 15.8 | 0/0 | 0 |
|
Chip 3
|
A
|
0 | 99.96 | 99.87 | 99.59 | 0.12 | 60.4 | 0 | 22.6 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.95 | 99.88 | 99.64 | 0.17 | 67.0 | 0 | 25.0 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 99.99 | 99.77 | 99.07 | 30.94 | 64.3 | 0 | 24.1 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.96 | 99.88 | 99.60 | 0.11 | 65.3 | 0 | 24.4 | 0/0 | 0 |
|
Chip 7
|
A
|
0 | 99.96 | 99.89 | 99.67 | 0.08 | 54.4 | 0 | 20.2 | 0/0 | 0 |
|
Chip 8
|
A
|
10 | 99.96 | 99.89 | 99.67 | 0.09 | 53.0 | 10 | 19.7 | 0/0 | 0 |
|
Chip 9
|
A
|
3 | 99.96 | 99.89 | 99.64 | 0.10 | 60.6 | 3 | 22.5 | 0/0 | 0 |
|
Chip 10
|
C
|
0 | 99.93 | 99.86 | 99.65 | 1.27 | 60.3 | 0 | 22.8 | 0/0 | 2+47/0 |
|
Chip 11
|
A
|
0 | 99.96 | 99.91 | 99.74 | 0.13 | 52.5 | 0 | 19.5 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.95 | 99.87 | 99.60 | 0.11 | 48.0 | 0 | 17.9 | 0/0 | 0 |
|
Chip 13
|
A
|
0 | 99.96 | 99.89 | 99.65 | 0.09 | 30.9 | 0 | 11.5 | 0/0 | 0 |
|
Chip 14
|
A
|
1 | 99.95 | 99.35 | -1.00 | 0.03 | 15.7 | 1 | 5.8 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.96 | 99.56 | -1.00 | 0.03 | 17.4 | 0 | 6.5 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
Logfile
MoReWeb-v0.5.1-895-gd4c3d74 on branch master
