Test Date: 2016-02-29 10:49
Analysis date: 2016-05-22 02:15
Analysis date: 2016-05-22 02:15
M-I-3-39 XRayHRQualification
Summary
| Module | Module | M-I-3-39 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 2 | |

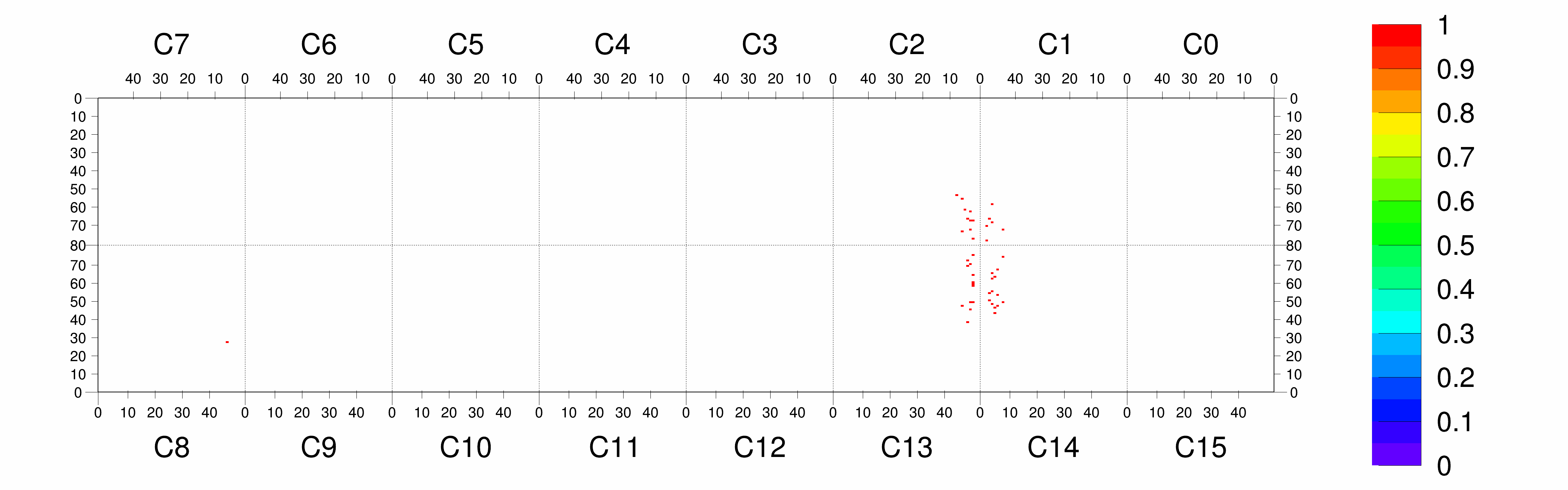

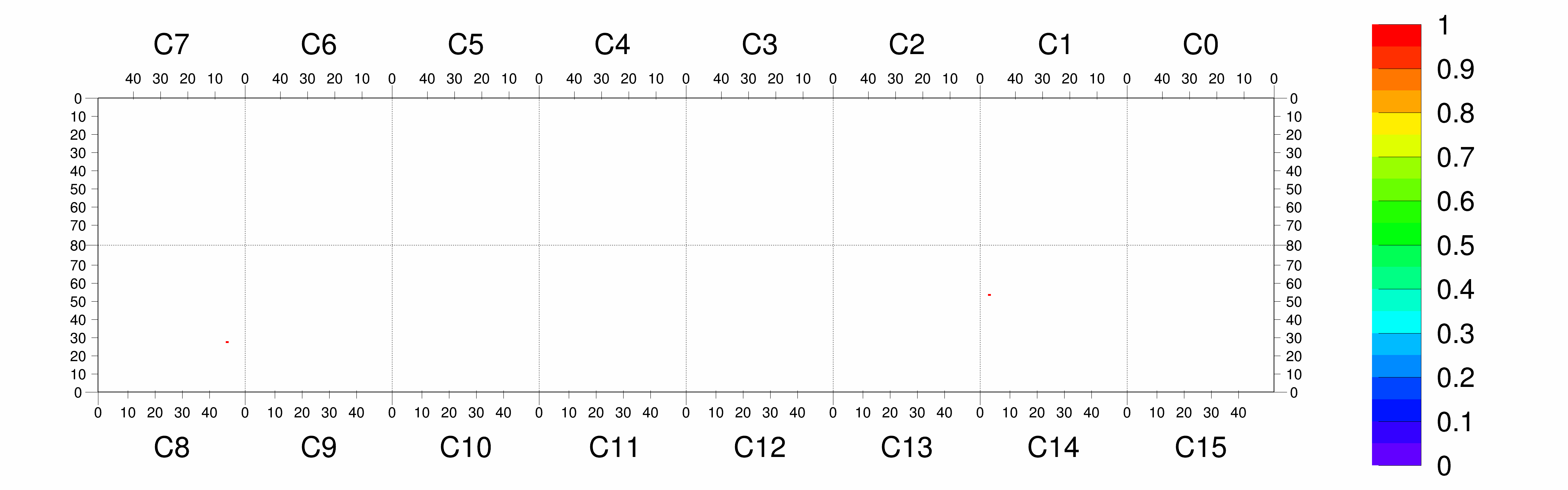

| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

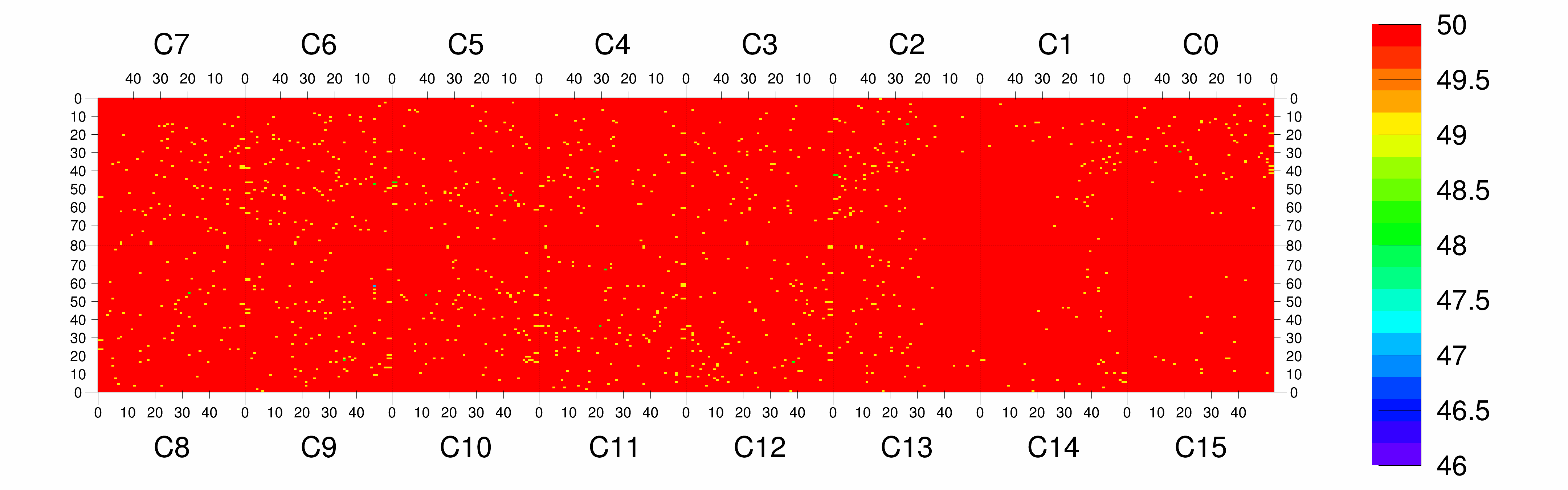

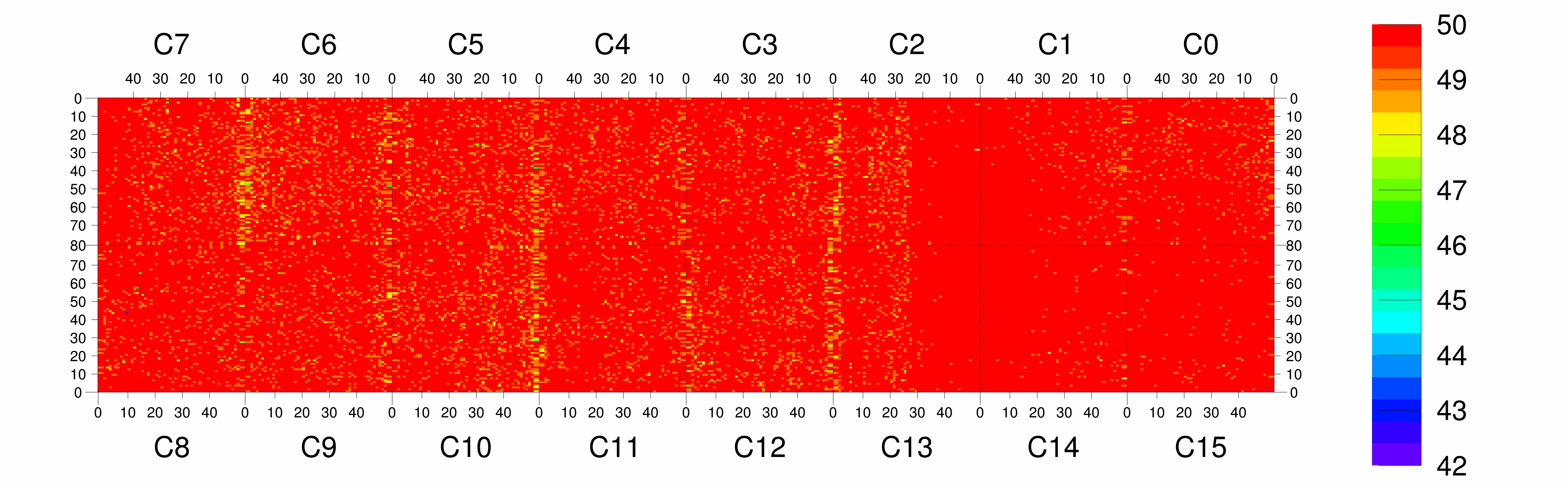

| Efficiency | Efficiency 20/50/80 | 99.96/99.84/99.66 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "120" | BB def | Rate "40" | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 99.96 | 99.89 | 99.66 | 0.10 | 52.3 | 0 | 15.0 | 0/0 | 0 |
|
Chip 1
|
A
|
0 | 99.96 | 99.89 | 99.66 | 0.07 | 36.4 | 0 | 10.4 | 0/0 | 0 |
|
Chip 2
|
A
|
0 | 99.95 | 99.90 | 99.73 | 0.12 | 51.5 | 0 | 14.8 | 0/0 | 0 |
|
Chip 3
|
A
|
0 | 99.95 | 99.88 | 99.62 | 0.13 | 63.1 | 0 | 18.3 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.96 | 99.88 | 99.62 | 0.15 | 70.7 | 0 | 20.5 | 0/0 | 0 |
|
Chip 5
|
A
|
0 | 99.97 | 99.90 | 99.68 | 0.11 | 88.7 | 0 | 25.5 | 0/0 | 0 |
|
Chip 6
|
A
|
0 | 99.95 | 99.88 | 99.65 | 0.12 | 89.2 | 0 | 25.7 | 0/0 | 0 |
|
Chip 7
|
A
|
0 | 99.96 | 99.89 | 99.67 | 0.11 | 70.5 | 0 | 20.3 | 0/0 | 0 |
|
Chip 8
|
A
|
1 | 99.96 | 99.89 | 99.66 | 0.14 | 64.7 | 1 | 18.6 | 0/0 | 0 |
|
Chip 9
|
A
|
0 | 99.96 | 99.90 | 99.70 | 0.09 | 76.6 | 0 | 22.1 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.96 | 99.89 | 99.64 | 0.09 | 79.6 | 0 | 22.9 | 0/0 | 0 |
|
Chip 11
|
A
|
0 | 99.95 | 99.89 | 99.70 | 0.09 | 65.3 | 0 | 18.7 | 0/0 | 0 |
|
Chip 12
|
A
|
0 | 99.95 | 99.88 | 99.64 | 0.12 | 72.1 | 0 | 20.6 | 0/0 | 0 |
|
Chip 13
|
A
|
0 | 99.96 | 99.88 | 99.62 | 0.05 | 41.4 | 0 | 11.8 | 0/0 | 0 |
|
Chip 14
|
A
|
1 | 99.94 | 99.27 | -1.00 | 0.02 | 20.6 | 1 | 5.8 | 0/0 | 0 |
|
Chip 15
|
A
|
0 | 99.97 | 99.76 | -1.00 | 0.03 | 21.8 | 0 | 6.2 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
Logfile
MoReWeb-v0.5.1-895-gd4c3d74 on branch master
