Test Date: 2016-02-23 16:03
Analysis date: 2016-05-24 23:34
Analysis date: 2016-05-24 23:34
M-I-1-44 XRayHRQualification
Summary
| Module | Module | M-I-1-44 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 36 | |

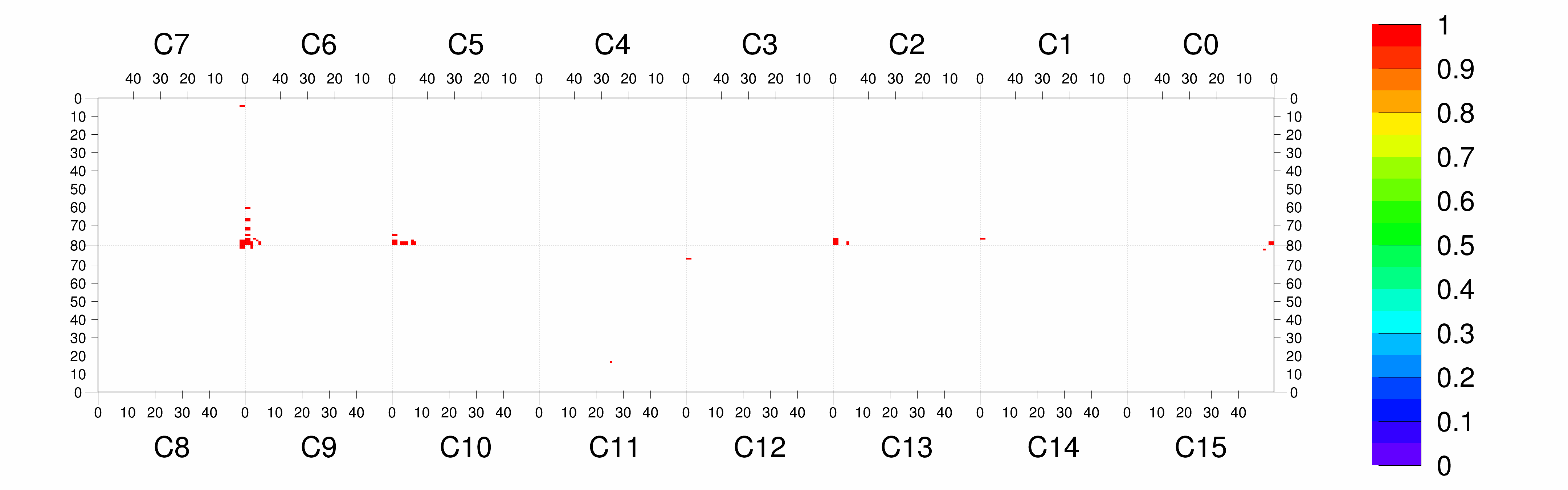

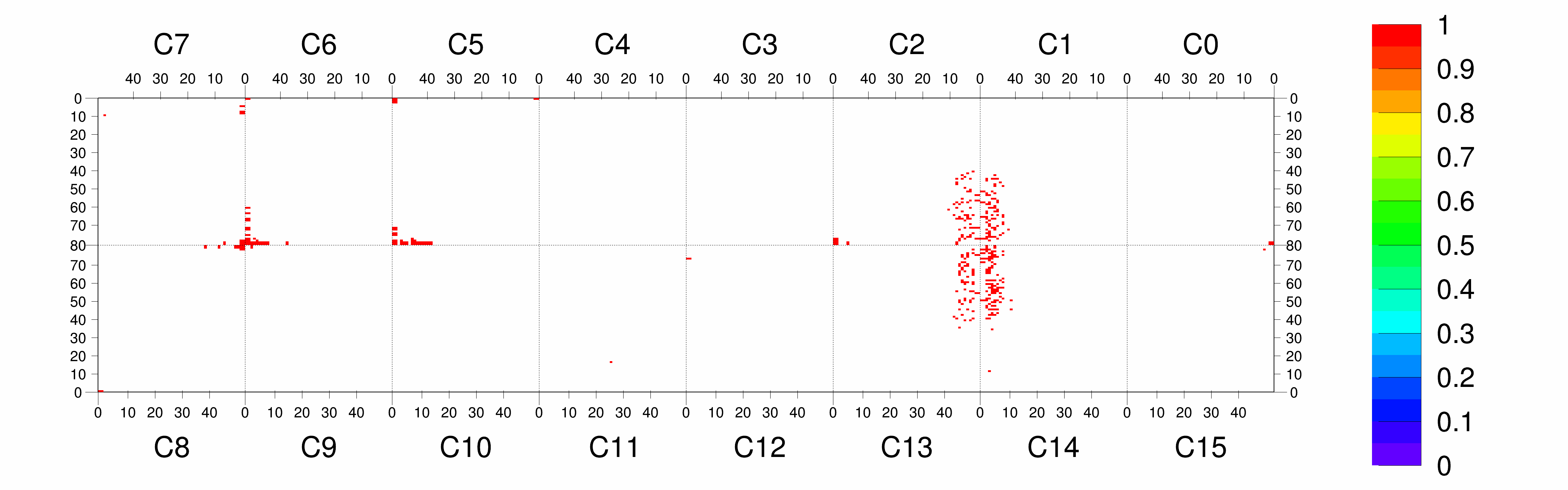

| BumpBondingDefects | Bump Bonding Defects | 36 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

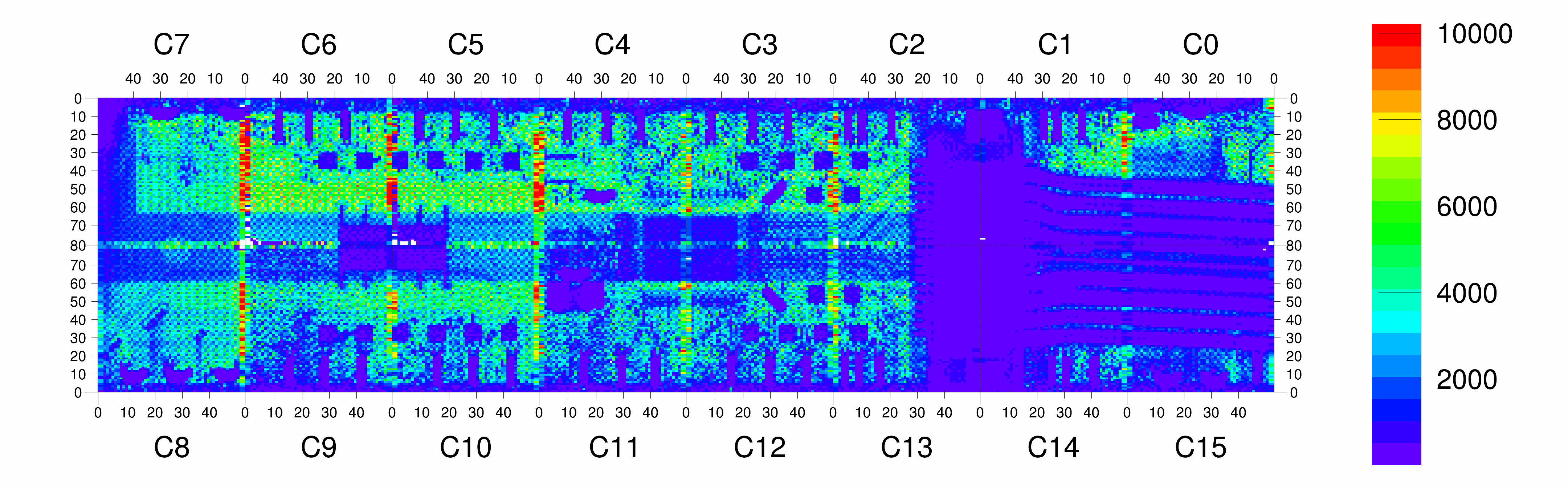

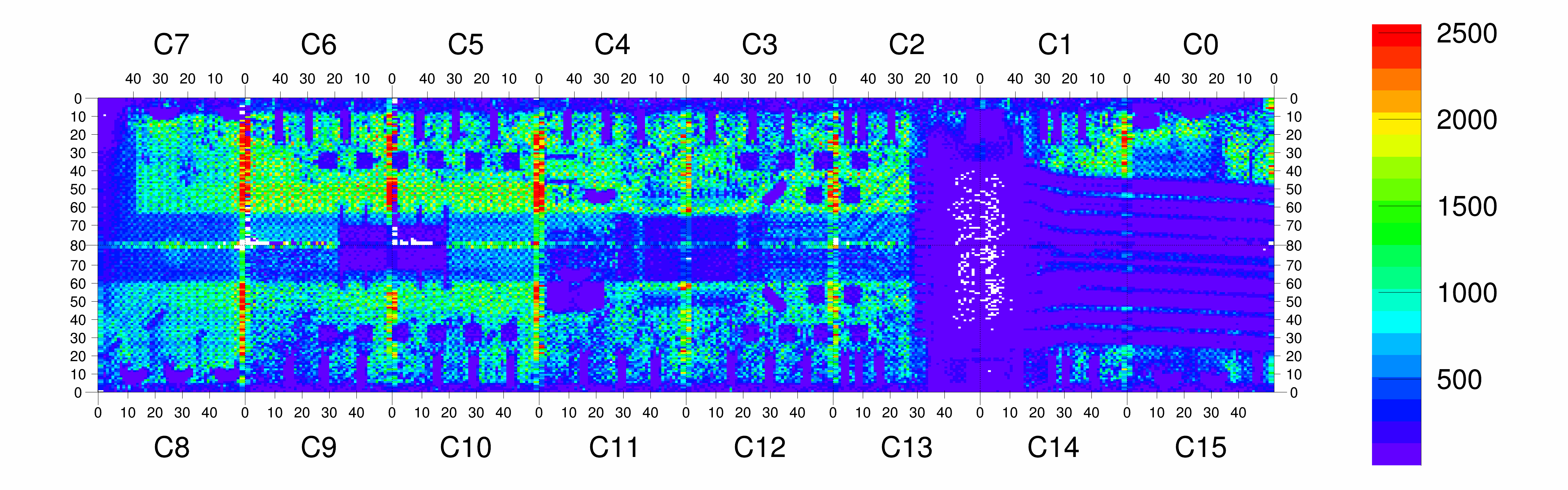

| Efficiency | Efficiency 20/50/80 | 99.96/99.80/99.59 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "40" | Rate "120" | BB def | RO prob | Unif. prob |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 99.97 | 99.88 | 99.58 | 0.05 | 10.1 | 40.2 | 1 | 0/0 | 0 |
|
Chip 1
|
A
|
1 | 99.97 | 99.85 | 99.45 | 0.07 | 7.8 | 31.8 | 1 | 0/0 | 0 |
|
Chip 2
|
A
|
4 | 99.96 | 99.88 | 99.61 | 0.06 | 11.6 | 46.5 | 4 | 0/0 | 0 |
|
Chip 3
|
A
|
0 | 99.96 | 99.89 | 99.67 | 0.13 | 16.2 | 64.3 | 0 | 0/0 | 0 |
|
Chip 4
|
A
|
0 | 99.96 | 99.88 | 99.61 | 0.13 | 18.5 | 73.2 | 0 | 0/0 | 0 |
|
Chip 5
|
A
|
9 | 99.96 | 99.89 | 99.66 | 0.13 | 20.5 | 81.2 | 9 | 0/0 | 0 |
|
Chip 6
|
A
|
13 | 99.95 | 99.87 | 99.63 | 0.13 | 23.1 | 91.7 | 13 | 0/0 | 0 |
|
Chip 7
|
A
|
3 | 99.96 | 99.88 | 99.60 | 0.11 | 16.4 | 65.5 | 3 | 0/0 | 0 |
|
Chip 8
|
A
|
1 | 99.96 | 99.91 | 99.72 | 0.12 | 16.3 | 65.1 | 1 | 0/0 | 0 |
|
Chip 9
|
A
|
1 | 99.96 | 99.86 | 99.55 | 0.08 | 14.2 | 55.7 | 1 | 0/0 | 0 |
|
Chip 10
|
A
|
0 | 99.96 | 99.90 | 99.70 | 0.10 | 16.8 | 66.5 | 0 | 0/0 | 0 |
|
Chip 11
|
A
|
1 | 99.94 | 99.81 | 99.39 | 0.78 | 11.9 | 47.1 | 1 | 0/0 | 0 |
|
Chip 12
|
A
|
1 | 99.96 | 99.86 | 99.54 | 0.11 | 12.6 | 50.0 | 1 | 0/0 | 0 |
|
Chip 13
|
A
|
0 | 99.97 | 99.87 | 99.52 | 0.06 | 8.5 | 34.2 | 0 | 0/0 | 0 |
|
Chip 14
|
A
|
0 | 99.93 | 99.06 | -1.00 | 0.02 | 3.6 | 14.9 | 0 | 0/0 | 0 |
|
Chip 15
|
A
|
1 | 99.96 | 99.55 | -1.00 | 0.02 | 4.7 | 19.4 | 1 | 0/0 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
Logfile
MoReWeb-v0.5.1-895-gd4c3d74 on branch master
