Test Date: 2016-01-06 15:14
Analysis date: 2016-05-25 17:00
Analysis date: 2016-05-25 17:00
M-G-3-46 ModuleFPIXTest_m20_1
_
Summary 1
| Module | Module | M-G-3-46 | |
| Grade | Grade | A | |
| ElectricalGrade | Electrical Grade | A | |
| IVGrade | IV Grade | A | |
| ManualGrade | Manual Grade | None | |
| PixelDefects | Pixel Defects - A/B/C | 8 - 16/0/0 | |
| DeadPixels | Dead Pixels | 0 | |
| AddressProblems | Address Problems | 0 | |
| ThresholdDefects | Threshold Defects | 2 | |
| MaskDefects | Mask Defects | 0 | |

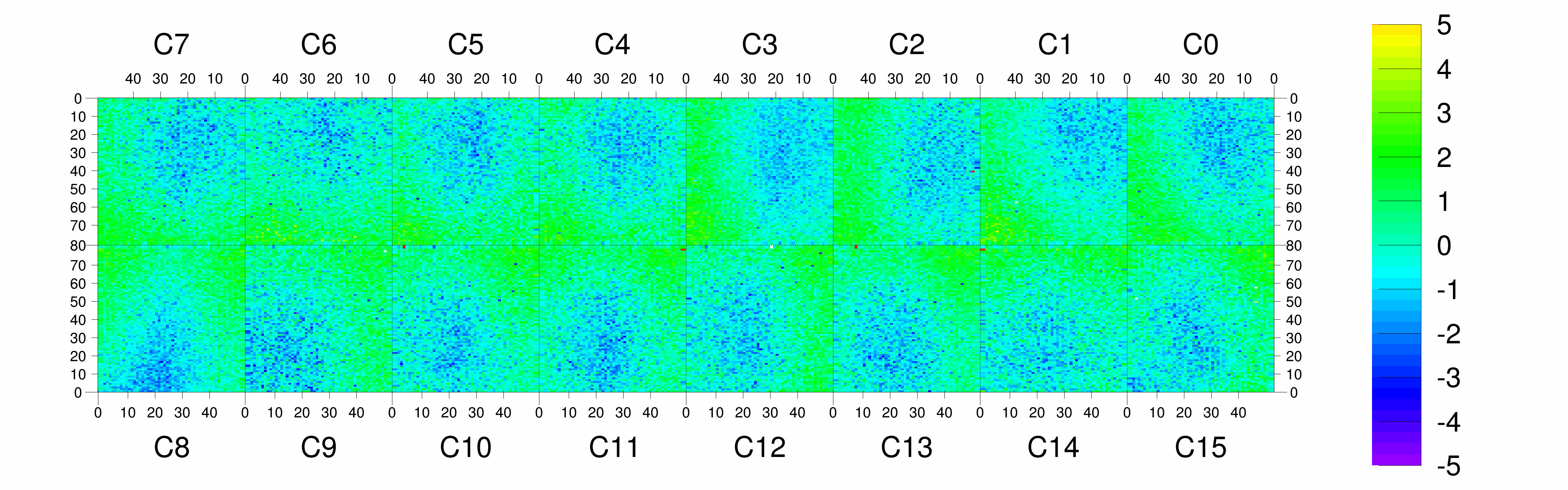

| DeadBumps | Dead Bumps | 5 | |
| NoisyPixels | Noise Defects | 0 | |
| TrimProblems | Trim Problems | 0 | |
| PHGainDefects | PH Gain Defects | 2 | |
| PHPedestalDefects | PH Pedestal Defects | 0 | |
| PHPar1Defects | PH Parameter1 Defects | 0 |
Summary 2
| TestCenter | Test Center | FNAL | |
| TestDate | Test Date | 2016-01-06 | |
| TestTime | Test Time | 15:14 | |
| TestDuration | Test Duration | 1:45:04 | |
| TempC | Temparature | -20 | °C |
| TrimPHCal | Trim / phCal | yes / yes | |
| TermCycl | Term. Cycl. | yes | |
| TBM1 | TBM1 | ok, 0xf8 0xe4 | |
| TBM2 | TBM2 | ok, 0x00 0xe4 | |
| PxarVersion | pXar | prod-12 | |
| ModuleIa | Module Ia | 381.9 | mA |
IVCurve
| CurrentAtVoltage150V | I_orig(150V) @ -20.0 °C | 0.00 | μA |
| Variation | I(150 V) / I(100 V) | 1.12 | |
| recalculatedCurrentAtVoltage150V | I_rec(150 V) @ 17°C | 0.09 | μA |
| recalculatedCurrentVariation | I_rec(150 V) / I_rec(100 V) | 1.12 |
Summary 3
| Noise | Noise | 103.91 | e |
| NoiseROCs | Noise grades | 16/0/0 | |
| VcalThrWidth | Vcal Thr. Width | 41.72 | e |
| VcalThrWidthROCs | Vcal Thr. W. grades | 16/0/0 | |
| RelGainWidth | Rel. Gain Width | 0.03 | % |
| RelGainWidthROCs | Rel. Gain W. grades | 16/0/0 | |
| PedestalSpread | Pedestal Spread | 1028.69 | e |
| PedestalSpreadROCs | Ped. Spread grades | 16/0/0 | |
| Parameter1 | Parameter1 | 0.63 | |
| Parameter1ROCs | Par1 grades | 16/0/0 | |
| CurrentAtVoltage150V | I_rec(150 V) @ 17°C | 0.09 | μA |
| CurrentAtVoltage150V_ORIG | I_orig(150V) @ -20.0 °C | 0.00 | μA |
| CurrentVariation | I(150 V) / I(100 V) | 1.12 |
Digital Current
| Duration | Duration | 1:45:04 | |
| MinCurrent | min. Current | 0.439 | A |
| MaxCurrent | max. Current | 0.475 | A |
Analog Current
| Duration | Duration | 1:45:04 | |
| MinCurrent | min. Current | 0.378 | A |
| MaxCurrent | max. Current | 0.384 | A |
| ModuleIa | Module Ia | 381.9 | mA |
IanaLoss
| IanaLossProblems | Iana problems | No | |
| Mean | mean | 19.35 | |
| Min | min | 18.50 | |
| Max | max | 20.10 |
Temperature
| Temperature | Temp. while test | -19.96 +/- 0.02 | °C |
| Duration | Duration of test | 0:05:29 |
Summary ROCs
| ROC | Grade | Total | Dead | Mask | Bumps | Trim(Bits) | Address | Noise | Thresh | Gain | Ped | Par1 | Mean noise | Thr [e-] | Thr width | Rel gain width | Ped spread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chip 0 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
99.00
|
1750 |
40
|
0.025
|
1137
|
| Chip 1 |
A
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
105.73
|
1750 |
42
|
0.028
|
1018
|
| Chip 2 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
98.83
|
1750 |
40
|
0.028
|
1060
|
| Chip 3 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
109.24
|
1750 |
42
|
0.031
|
1026
|
| Chip 4 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
93.37
|
1750 |
40
|
0.023
|
1014
|
| Chip 5 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
104.90
|
1748 |
42
|
0.025
|
1004
|
| Chip 6 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
94.45
|
1752 |
40
|
0.023
|
896
|
| Chip 7 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
100.95
|
1748 |
40
|
0.024
|
1106
|
| Chip 8 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
106.13
|
1750 |
40
|
0.025
|
1158
|
| Chip 9 |
A
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
1
|
0
|
0
|
115.25
|
1752 |
48
|
0.032
|
1166
|
| Chip 10 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
106.60
|
1750 |
41
|
0.026
|
1078
|
| Chip 11 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
110.56
|
1748 |
43
|
0.029
|
964
|
| Chip 12 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
107.20
|
1748 |
44
|
0.026
|
938
|
| Chip 13 |
A
|
2
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
1
|
0
|
0
|
103.63
|
1750 |
40
|
0.029
|
1004
|
| Chip 14 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
104.64
|
1750 |
44
|
0.020
|
1045
|
| Chip 15 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
102.09
|
1750 |
40
|
0.026
|
846
|
TBM
| nTBMs | n | 1 | |
| TBMType | Type | tbm08c | |
| Core0a_basea | Core 0a base a | 0xe4 | |
| Core0a_basee | Core 0a base e | 0xf8 | |
| Core0b_basea | Core 0b base a | 0xe4 | |
| Core0b_basee | Core 0b base e | 0x00 | |
| RocDelay_Ch0 | Roc Delay Ch0 | 4 | |
| RocDelay_Ch1 | Roc Delay Ch1 | 4 | |
| RocDelay_Ch2 | Roc Delay Ch2 | 4 | |
| RocDelay_Ch3 | Roc Delay Ch3 | 4 | |
| Phase400 | Phase 400 | 6 | |
| Phase160 | Phase 160 | 7 |
Errors
| nCriticals | # Criticals | 2 | |
| nErrors | # Errors | 525 | |
| nWarnings | # Warnings | 16 | |
| channel_0_count | Channel 0 | 40 | |
| channel_1_count | Channel 1 | 53 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 58 | |
| message_eventid_count | Event ID mismatch | 12 | |
| message_readback_count | Readback start marker | 16 | |
| message_notokenpass_count | has NoTokenPass | 7 | |
| message_datasize_count | Data size criticals | 1 | |
| message_missingevents_count | Missing Event criticals | 1 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
GradingParameters
| ModifiedGrading | Modified Grading | ? | |
| GradingParameters_XRayHighRateEfficiency_NInterpolationRates | XRayHighRateEfficiency_NInterpolationRates | 2 => 3 |
MoReWeb-v0.5.1-895-gd4c3d74 on branch master
