Test Date: 2016-01-04 13:03
Analysis date: 2016-05-24 04:11
Analysis date: 2016-05-24 04:11
M-G-3-03 ModulePurduetest_p17_1
_
Summary 1
| Module | Module | M-G-3-03 | |
| Grade | Grade | A | |
| ElectricalGrade | Electrical Grade | A | |
| IVGrade | IV Grade | A | |
| ManualGrade | Manual Grade | None | |
| PixelDefects | Pixel Defects - A/B/C | 9 - 16/0/0 | |
| DeadPixels | Dead Pixels | 3 | |
| AddressProblems | Address Problems | 0 | |

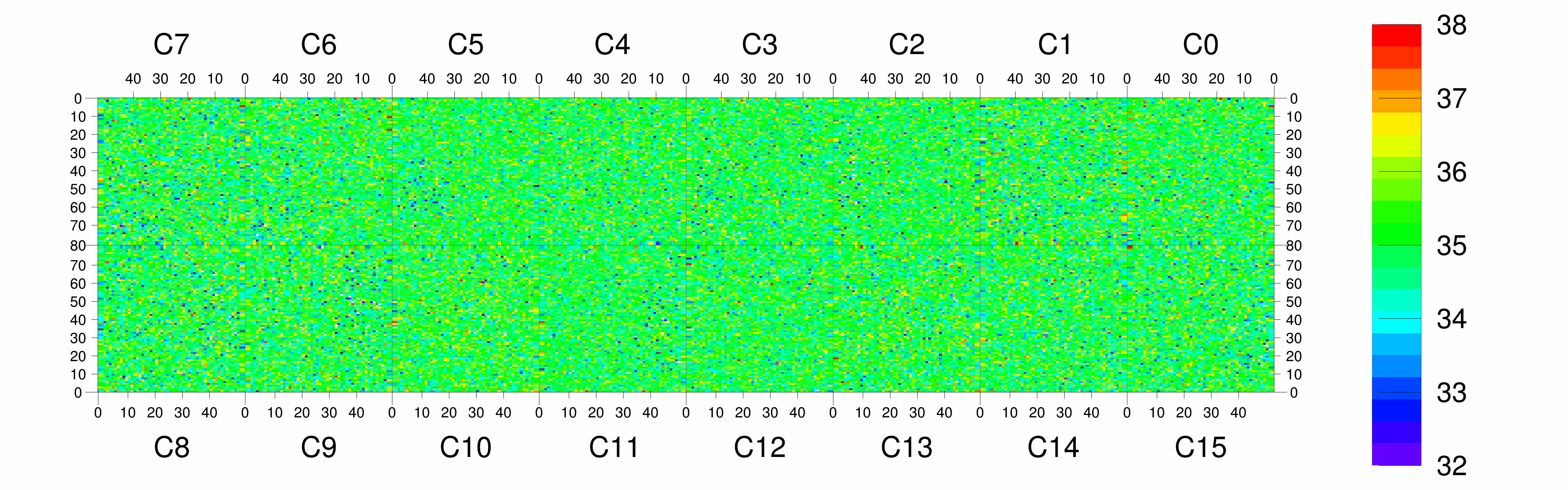

| ThresholdDefects | Threshold Defects | 0 | |
| MaskDefects | Mask Defects | 0 | |

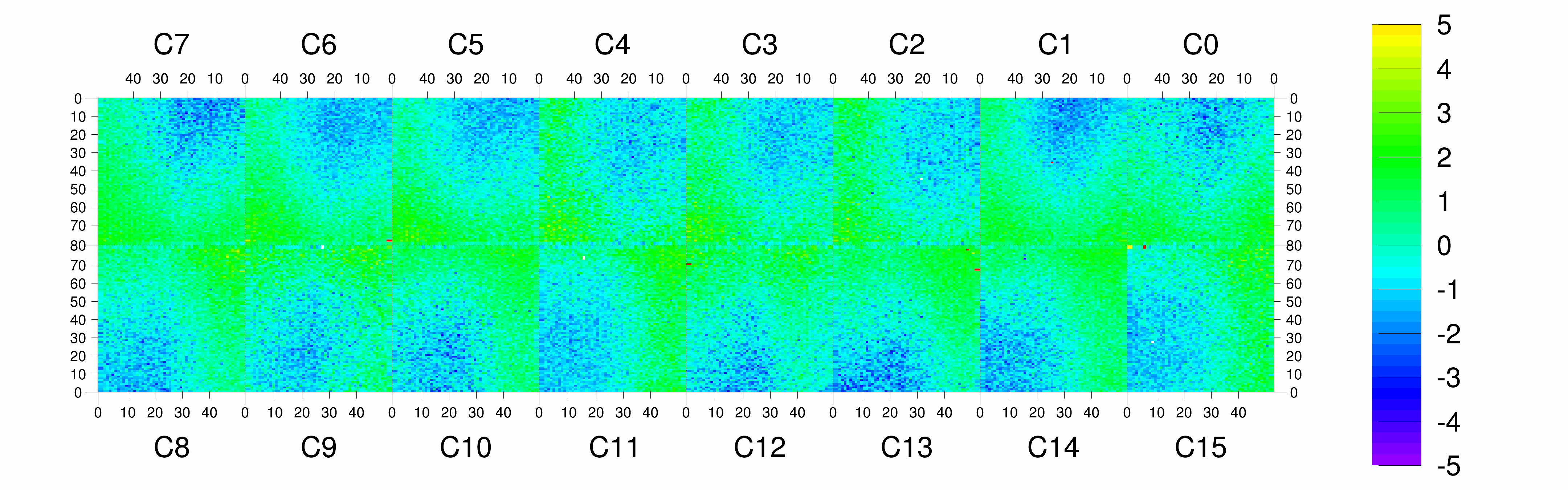

| DeadBumps | Dead Bumps | 6 | |
| NoisyPixels | Noise Defects | 0 | |
| TrimProblems | Trim Problems | 0 | |
| PHGainDefects | PH Gain Defects | 0 | |
| PHPedestalDefects | PH Pedestal Defects | 0 | |
| PHPar1Defects | PH Parameter1 Defects | 0 |
Summary 2
| TestCenter | Test Center | Purdue | |
| TestDate | Test Date | 2016-01-04 | |
| TestTime | Test Time | 13:03 | |
| TestDuration | Test Duration | 0:21:02 | |
| TempC | Temparature | 17 | °C |
| TrimPHCal | Trim / phCal | yes / yes | |
| TermCycl | Term. Cycl. | yes | |
| TBM1 | TBM1 | ok, 0xa8 0xd2 | |
| TBM2 | TBM2 | ok, 0x00 0xd2 | |
| PxarVersion | pXar | prod-10+4 g2cb6cc9 | |
| ModuleIa | Module Ia | 385.1 | mA |
IVCurve
Digital Current
| Duration | Duration | 0:21:02 | |
| MinCurrent | min. Current | 0.474 | A |
| MaxCurrent | max. Current | 0.503 | A |
Analog Current
| Duration | Duration | 0:21:02 | |
| MinCurrent | min. Current | 0.363 | A |
| MaxCurrent | max. Current | 0.388 | A |
| ModuleIa | Module Ia | 385.1 | mA |
TBM
| nTBMs | n | 1 | |
| TBMType | Type | tbm08c | |
| Core0a_basea | Core 0a base a | 0xd2 | |
| Core0a_basee | Core 0a base e | 0xa8 | |
| Core0b_basea | Core 0b base a | 0xd2 | |
| Core0b_basee | Core 0b base e | 0x00 | |
| RocDelay_Ch0 | Roc Delay Ch0 | 2 | |
| RocDelay_Ch1 | Roc Delay Ch1 | 2 | |
| RocDelay_Ch2 | Roc Delay Ch2 | 2 | |
| RocDelay_Ch3 | Roc Delay Ch3 | 2 | |
| Phase400 | Phase 400 | 2 | |
| Phase160 | Phase 160 | 5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 1432 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 3 | |
| channel_1_count | Channel 1 | 628 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 2 | |
| message_eventid_count | Event ID mismatch | 1 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 628 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
GradingParameters
| ModifiedGrading | Modified Grading | ? | |
| GradingParameters_XRayHighRateEfficiency_NInterpolationRates | XRayHighRateEfficiency_NInterpolationRates | 2 => 3 |
MoReWeb-v0.5.1-895-gd4c3d74 on branch master
