Test Date: 1973-11-29 16:33
Analysis date: 2016-07-26 16:49
Analysis date: 2016-07-26 16:49
M-G-2-13 XRayHRQualification
Summary
| Module | Module | M-G-2-13 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 0/0/0 | |
| PixelDefects | Total Pixel Defects | 0 | |
| BumpBondingDefects | Bump Bonding Defects | 0 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 20/50/80 | 99.94/99.79/99.69 | % |
| Noise | Mean Noise | -1 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 20 | Eff 50 | Eff 80 | Eff chi2 | Rate "40" | Rate "120" | BB def | RO prob | Unif. prob |
|---|

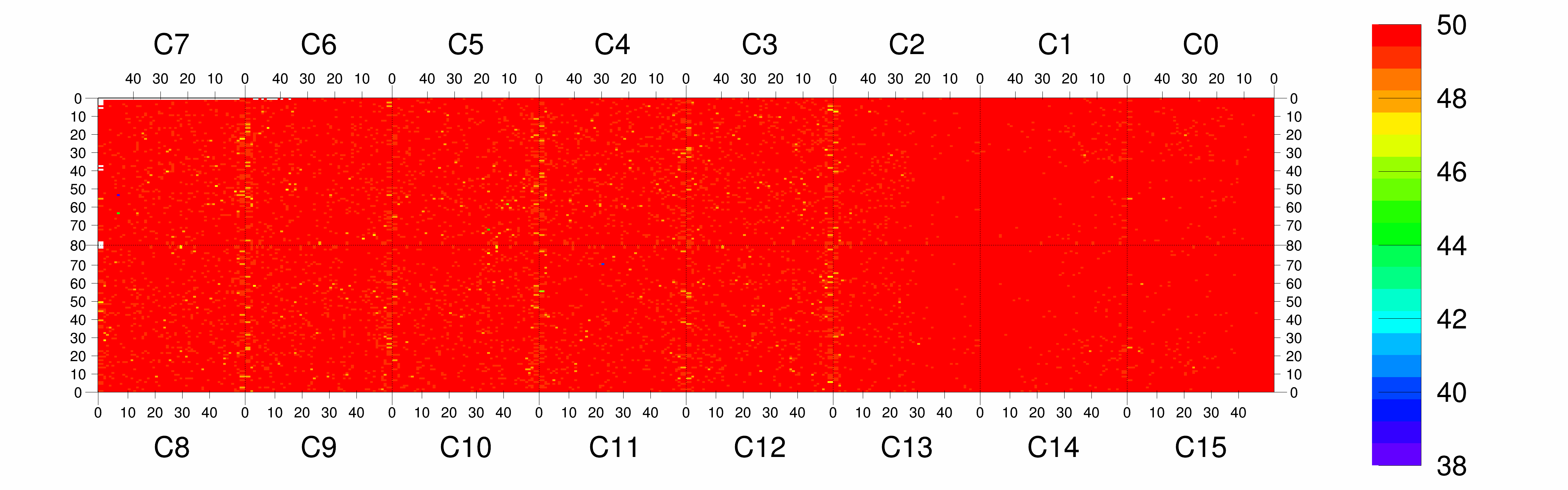

HitOverview

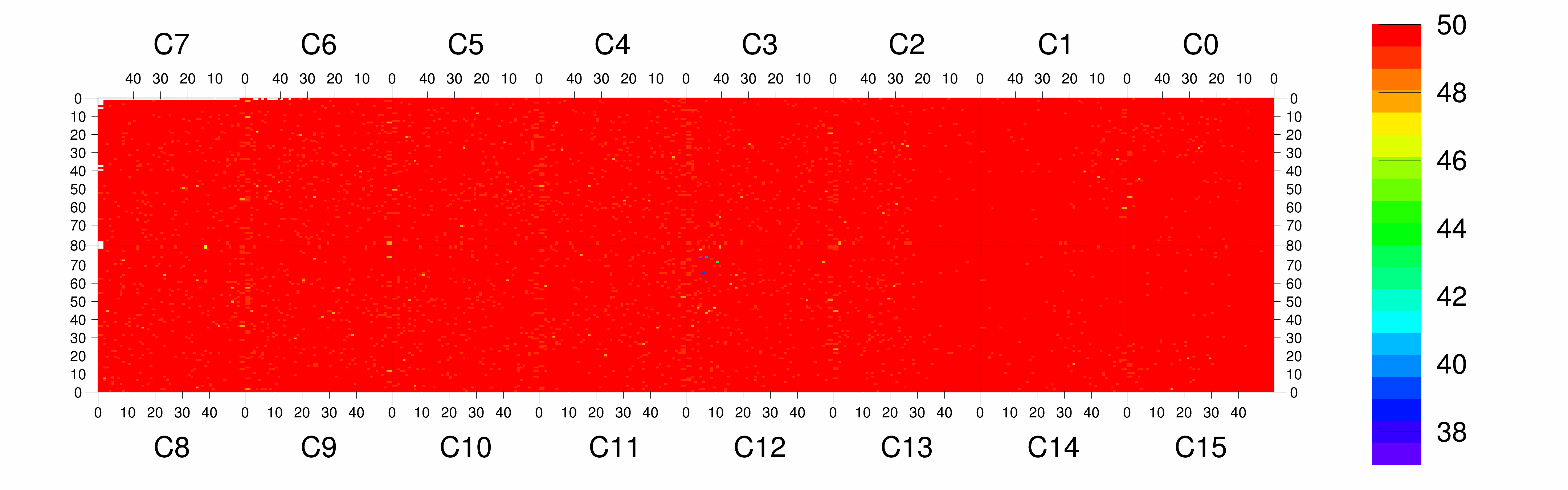

HitOverview
BumpBondingProblems
BumpBondingSummary
BumpBondingProblems
BumpBondingSummary
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
