Test Date: 2016-02-04 17:51
Analysis date: 2016-05-23 12:47
Analysis date: 2016-05-23 12:47
M-G-1-08 ModuleFPIXTest_m20_1
_
Summary 1
| Module | Module | M-G-1-08 | |
| Grade | Grade | C | |
| ElectricalGrade | Electrical Grade | C | |
| IVGrade | IV Grade | A | |
| ManualGrade | Manual Grade | None | |
| PixelDefects | Pixel Defects - A/B/C | 4559 - 11/4/1 | |

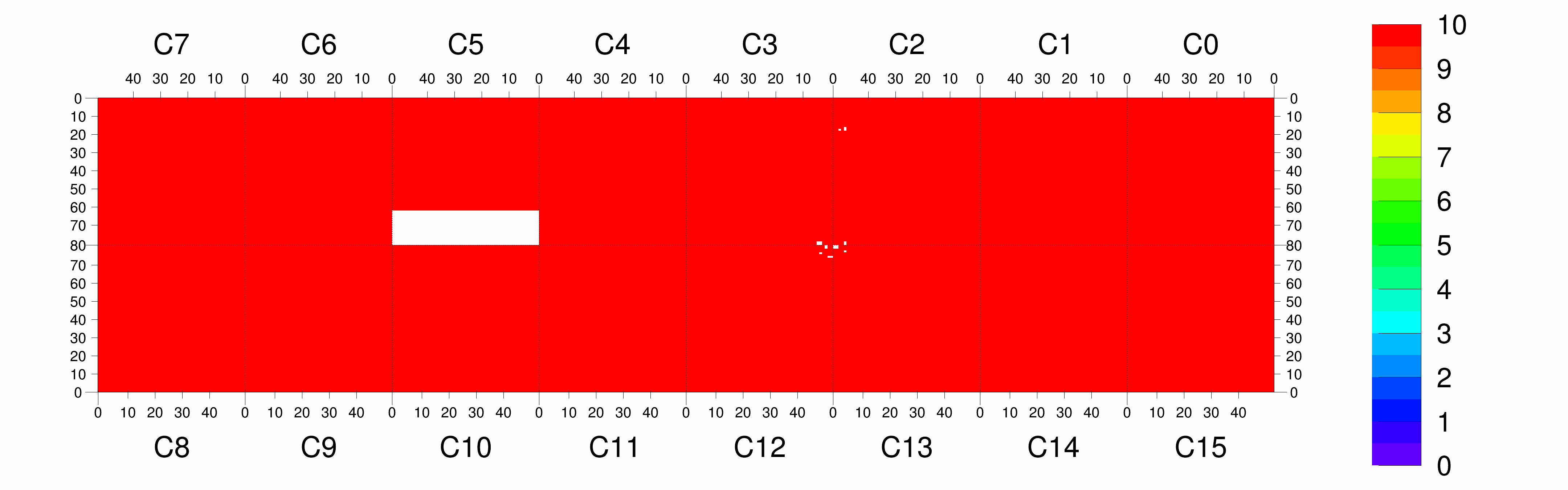

| DeadPixels | Dead Pixels | 947 | |
| AddressProblems | Address Problems | 0 | |

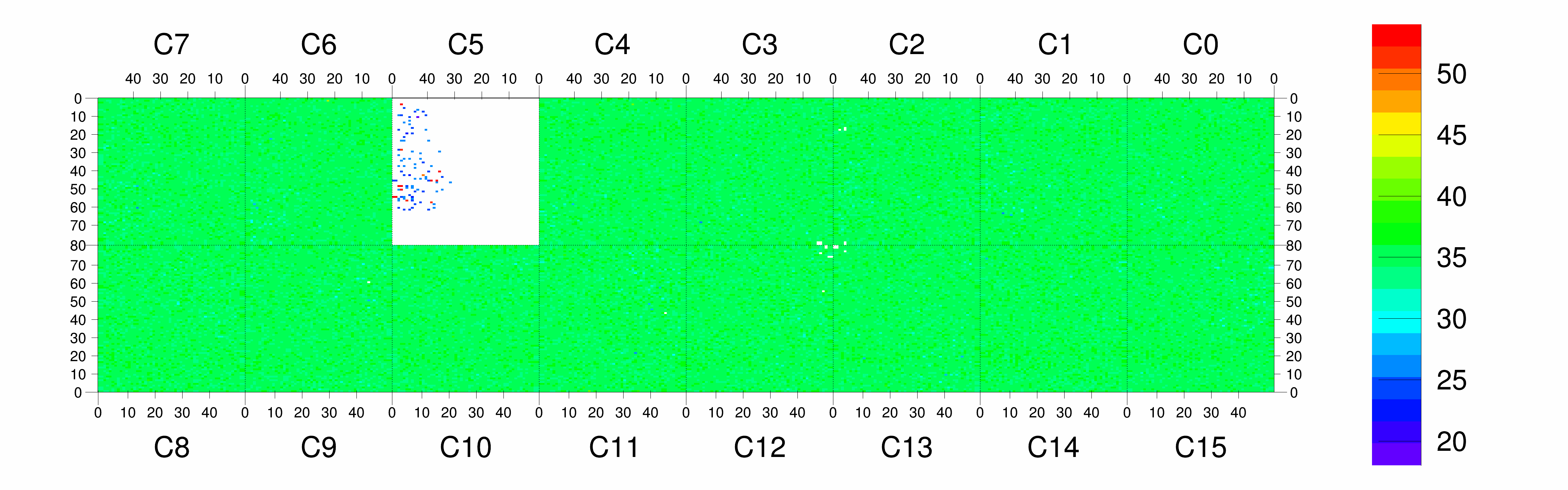

| ThresholdDefects | Threshold Defects | 3184 | |
| MaskDefects | Mask Defects | 0 | |

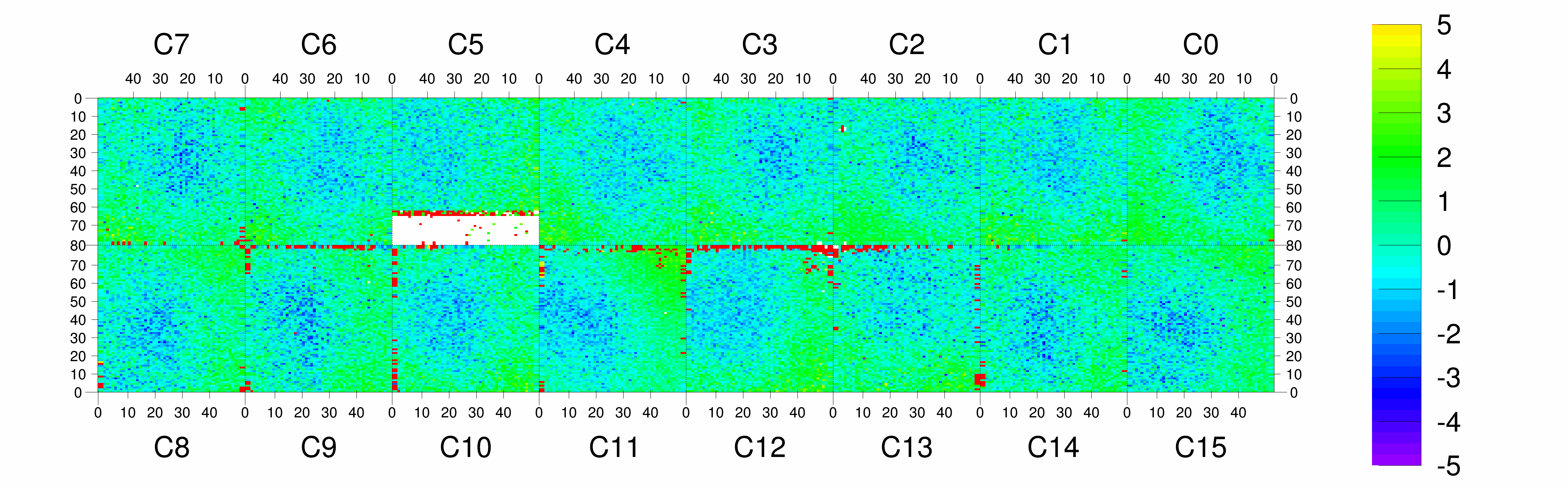

| DeadBumps | Dead Bumps | 385 | |
| NoisyPixels | Noise Defects | 0 | |
| TrimProblems | Trim Problems | 0 | |
| PHGainDefects | PH Gain Defects | 2247 | |
| PHPedestalDefects | PH Pedestal Defects | 0 | |
| PHPar1Defects | PH Parameter1 Defects | 1371 |
Summary 2
| TestCenter | Test Center | FNAL | |
| TestDate | Test Date | 2016-02-04 | |
| TestTime | Test Time | 17:51 | |
| TestDuration | Test Duration | 1:29:01 | |
| TempC | Temparature | -20 | °C |
| TrimPHCal | Trim / phCal | yes / yes | |
| TermCycl | Term. Cycl. | yes | |
| TBM1 | TBM1 | ok, 0x84 0x49 | |
| TBM2 | TBM2 | ok, 0x00 0x49 | |
| PxarVersion | pXar | prod-12 | |
| ModuleIa | Module Ia | 388.3 | mA |
IVCurve
| CurrentAtVoltage150V | I_orig(150V) @ -20.0 °C | 0.00 | μA |
| Variation | I(150 V) / I(100 V) | 1.24 | |
| recalculatedCurrentAtVoltage150V | I_rec(150 V) @ 17°C | 0.07 | μA |
| recalculatedCurrentVariation | I_rec(150 V) / I_rec(100 V) | 1.24 |
Summary 3
| Noise | Noise | 110.91 | e |
| NoiseROCs | Noise grades | 16/0/0 | |
| VcalThrWidth | Vcal Thr. Width | 71.34 | e |
| VcalThrWidthROCs | Vcal Thr. W. grades | 15/0/1 | |
| RelGainWidth | Rel. Gain Width | 0.04 | % |
| RelGainWidthROCs | Rel. Gain W. grades | 15/0/1 | |
| PedestalSpread | Pedestal Spread | 1156.19 | e |
| PedestalSpreadROCs | Ped. Spread grades | 15/1/0 | |
| Parameter1 | Parameter1 | 0.65 | |
| Parameter1ROCs | Par1 grades | 15/0/1 | |
| CurrentAtVoltage150V | I_rec(150 V) @ 17°C | 0.07 | μA |
| CurrentAtVoltage150V_ORIG | I_orig(150V) @ -20.0 °C | 0.00 | μA |
| CurrentVariation | I(150 V) / I(100 V) | 1.24 |
Digital Current
| Duration | Duration | 1:29:01 | |
| MinCurrent | min. Current | 0.531 | A |
| MaxCurrent | max. Current | 0.567 | A |
Analog Current
| Duration | Duration | 1:29:01 | |
| MinCurrent | min. Current | 0.366 | A |
| MaxCurrent | max. Current | 0.391 | A |
| ModuleIa | Module Ia | 388.3 | mA |
IanaLoss
| IanaLossProblems | Iana problems | No | |
| Mean | mean | 19.75 | |
| Min | min | 19.30 | |
| Max | max | 20.10 |
Temperature
| Temperature | Temp. while test | -19.99 +/- 0.09 | °C |
| Duration | Duration of test | 1:29:01 |
Summary ROCs
| ROC | Grade | Total | Dead | Mask | Bumps | Trim(Bits) | Address | Noise | Thresh | Gain | Ped | Par1 | Mean noise | Thr [e-] | Thr width | Rel gain width | Ped spread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chip 0 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
97.40
|
1750 |
40
|
0.033
|
728
|
| Chip 1 |
A
|
2
|
0
|
0
|
2
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
108.33
|
1749 |
44
|
0.028
|
989
|
| Chip 2 |
A
|
8
|
4
|
0
|
4
|
0
|
0
|
0
|
0
|
0
|
0
|
4
|
105.41
|
1748 |
44
|
0.026
|
1058
|
| Chip 3 |
A
|
4
|
2
|
0
|
2
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
104.50
|
1750 |
42
|
0.032
|
944
|
| Chip 4 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
103.28
|
1752 |
41
|
0.028
|
1160
|
| Chip 5 |
C
|
4160
|
936
|
0
|
0
|
0
|
0
|
0
|
3181
|
2245
|
0
|
1359
|
109.49
|
80 |
501
|
0.129
|
3583
|
| Chip 6 |
A
|
4
|
0
|
0
|
4
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
97.32
|
1750 |
39
|
0.023
|
866
|
| Chip 7 |
A
|
17
|
0
|
0
|
17
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
109.66
|
1748 |
42
|
0.030
|
882
|
| Chip 8 |
A
|
10
|
0
|
0
|
10
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
114.14
|
1748 |
45
|
0.026
|
1022
|
| Chip 9 |
B
|
51
|
0
|
0
|
50
|
0
|
0
|
0
|
1
|
0
|
0
|
1
|
121.25
|
1747 |
43
|
0.033
|
1136
|
| Chip 10 |
A
|
37
|
0
|
0
|
37
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
114.90
|
1748 |
42
|
0.029
|
940
|
| Chip 11 |
B
|
72
|
0
|
0
|
71
|
0
|
0
|
0
|
1
|
0
|
0
|
1
|
133.16
|
1748 |
46
|
0.041
|
1208
|
| Chip 12 |
B
|
110
|
3
|
0
|
106
|
0
|
0
|
0
|
1
|
1
|
0
|
3
|
128.52
|
1748 |
44
|
0.038
|
1132
|
| Chip 13 |
B
|
69
|
2
|
0
|
67
|
0
|
0
|
0
|
0
|
0
|
0
|
2
|
110.98
|
1749 |
42
|
0.034
|
905
|
| Chip 14 |
A
|
13
|
0
|
0
|
13
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
116.21
|
1751 |
46
|
0.025
|
935
|
| Chip 15 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
99.93
|
1750 |
42
|
0.026
|
1012
|
TBM
| nTBMs | n | 1 | |
| TBMType | Type | tbm08c | |
| Core0a_basea | Core 0a base a | 0x49 | |
| Core0a_basee | Core 0a base e | 0x84 | |
| Core0b_basea | Core 0b base a | 0x49 | |
| Core0b_basee | Core 0b base e | 0x00 | |
| RocDelay_Ch0 | Roc Delay Ch0 | 1 | |
| RocDelay_Ch1 | Roc Delay Ch1 | 1 | |
| RocDelay_Ch2 | Roc Delay Ch2 | 1 | |
| RocDelay_Ch3 | Roc Delay Ch3 | 1 | |
| Phase400 | Phase 400 | 1 | |
| Phase160 | Phase 160 | 4 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
GradingParameters
| ModifiedGrading | Modified Grading | ? | |
| GradingParameters_XRayHighRateEfficiency_NInterpolationRates | XRayHighRateEfficiency_NInterpolationRates | 2 => 3 |
MoReWeb-v0.5.1-895-gd4c3d74 on branch master
