Test Date: 2016-02-01 11:47
Analysis date: 2016-05-24 05:17
Analysis date: 2016-05-24 05:17
Chip 10

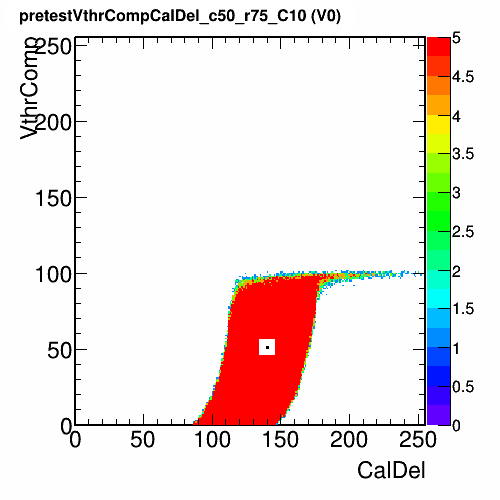

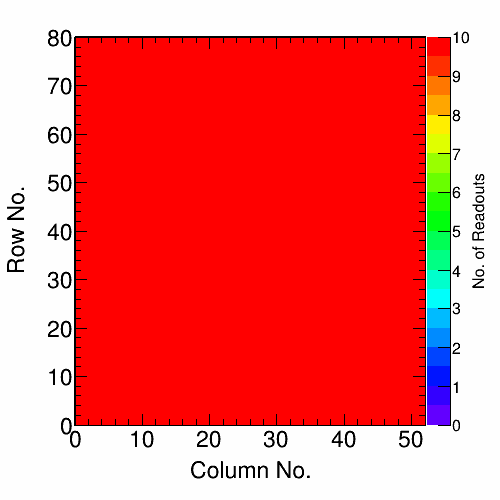

Pixel Map: C10
| NNotAlivePixels | Tot. Dead Pixels | 0 | |
| NDeadPixels | - N Dead Pixels | 0 | |
| NNoisyPixels | - N Noisy Pixels | 0 | |
| NMaskDefects | - N Mask Defects | 0 | |
| NInefficentPixels | - N Inefficent Pixels | 0 |
SCurveWidths
| N | N | 4160 | |
| mu | μ | 108.02 | |
| sigma | RMS | 6.17 | |
| NNoiseDefects | # Noise defects | 0 |

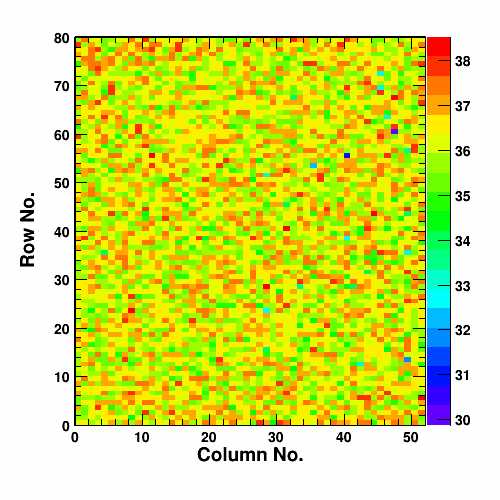

Vcal Threshold Trimmed
| N | N | 4160 | |
| mu | μ | 34.97 | |
| sigma | σ_fit | 0.85 | |
| NTrimProblems | N Trim Problems | 0 |

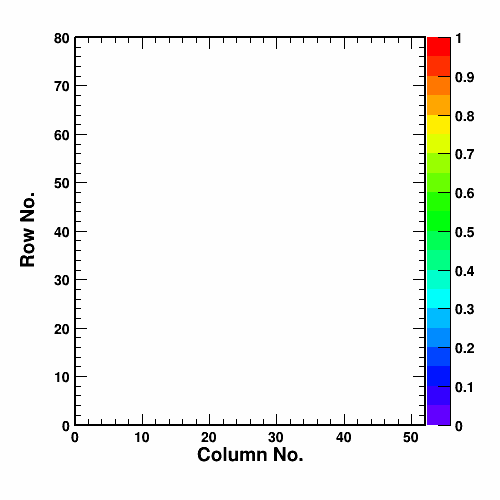

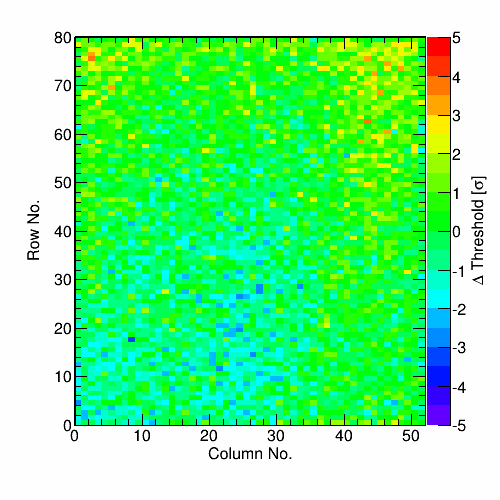

Bump Bonding: C10
| Mean | Mean | 0.03 | |
| RMS | RMS | 0.99 | |
| Threshold | Threshold | 5.0 | |
| nSigma | σ | 5.0 | |
| nBumpBondingProblems | N BumpProblems | 0.0 |
Summary
| Total | Total | 0 | |
| nDeadPixel | - Dead Pixels | 0 | |
| nMaskDefect | - Mask Defects | 0 | |
| nDeadBumps | - Dead Bumps | 0 | |
| nDeadTrimbits | - Dead Trimbits | 0 | |
| nAddressProblems | - Address Problems | 0 | |
| empty | |||
| nNoisy1Pixel | >100% efficiency in alive map | 0 | |
| nNoisy2Pixel | Noisy Pixels | 0 | |
| nThrDefect | Trim Problems | 0 | |
| nGainDefect | PH Gain defects | 0 | |
| nPedDefect | PH Pedestal defects | 0 | |
| nPar1Defect | PH Parameter1 Defects | 0 | |
| PixelDefectsGrade | Pixel Defects Grade ROC | 1 |

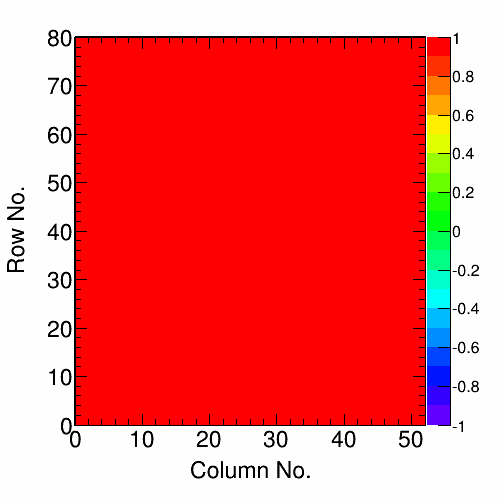

Address Decoding: C10

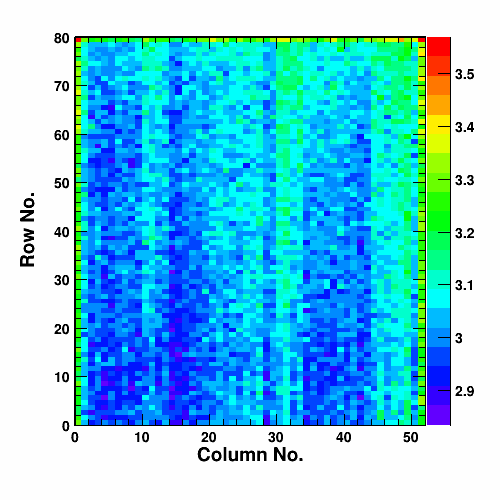

PHCalibrationGain
| N | N | 4160 | |
| mu | μ | 3.04 | |
| sigma | RMS | 0.08 | |
| NGainDefects | # Gain defects | 0 |
PHCalibrationParameter1
PHCalibrationPedestal
| N | N | 4160 | |
| mu | μ | 42.52 | |
| sigma | RMS | 17.75 | |
| mu_electrons | μ_electrons | 2126.10 | |
| sigma_electrons | σ_electrons | 887.75 |
OpParameters
| vcalTrim | vcalTrim | 35 | |
| Vana | Vana | 49 | |
| CalDel | CalDel | 140 | |
| VthrComp | VthrComp | 61 | |
| Vtrim | Vtrim | 81 | |
| PHScale | PHScale | 84 | |
| PHOffset | PHOffset | 161 |

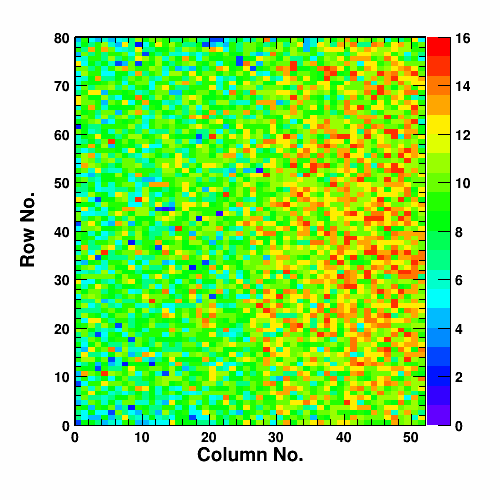

Trim Bit Problems
PerformanceParameters
| Noise | Noise | 108.02 | |
| Threshold | Threshold | 1748 | |
| ThresholdWidth | ThresholdWidth | 42 | |
| RelativeGainWidth | RelativeGainWidth | 0.026 | |
| TrimBits_mu | TrimBits_mu | 9.70 | |
| TrimBits_sigma | TrimBits_sigma | 2.57 |
ReadbackCal
| par0vd | par0vd | 1.00e+00 | |
| par1vd | par1vd | 1.00e+00 | |
| par0va | par0va | 1.00e+00 | |
| par1va | par1va | 1.00e+00 | |
| par0rbia | par0rbia | 1.00e+00 | |
| par1rbia | par1rbia | 1.00e+00 | |
| par0tbia | par0tbia | 1.00e+00 | |
| par1tbia | par1tbia | 1.00e+00 | |
| par2tbia | par2tbia | 1.00e+00 | |
| ReadbackCalibrated | Calibrated | False |
MoReWeb-v0.5.1-895-gd4c3d74 on branch master
