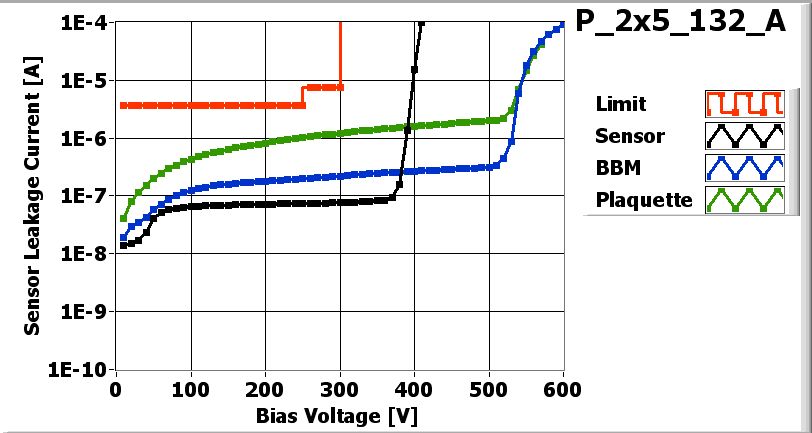

![[IMAGE] of](P_2x5_132_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 570 V |

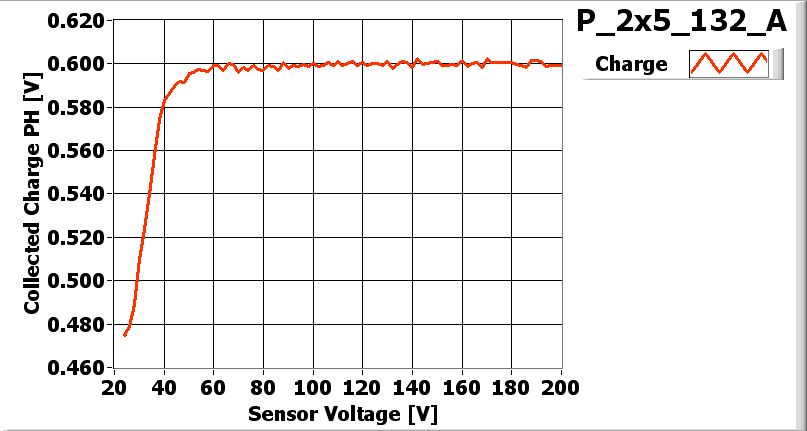

![[IMAGE] of](P_2x5_132_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_132-2x5 |
| VHDI | 2x5_610 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W45_D3LQFLT | 56A |
| ROC1 | W45_D3LQFLT | 55D |
| ROC2 | W45_D3LQFLT | 55C |
| ROC3 | W45_D3LQFLT | 55B |
| ROC4 | W45_D3LQFLT | 55A |
| ROC5 | W45_D3LQFLT | 37B |
| ROC6 | W45_D3LQFLT | 37C |
| ROC7 | W45_D3LQFLT | 38B |
| ROC8 | W45_D3LQFLT | 38C |
| ROC9 | W45_D3LQFLT | 38D |
Inspected by Lockwood Gale on date 6/5/2007
| LR_dev | 0.023 |
| LL_dev | 0.026 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/5/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/5/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/5/2007 by Kozak Brian
P_2x5_132_Aon 6/5/2007 5:38 PM
P_2x5_132_A-1on 6/5/2007 5:40 PM
P_2x5_132_A-2on 6/5/2007 5:42 PM
P_2x5_132_A-3on 6/5/2007 5:47 PM
P_2x5_132_A-3on 6/5/2007 5:47 PM
PLAQUETTE TESTED on 2007-06-05 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 152 | 156 | 154 | 148 | 158 | 146 | 158 | 150 | 150 | 164 | |
| Vana | 135 | 134 | 145 | 130 | 147 | 133 | 144 | 142 | 149 | 154 | |
| Cal_Del | 86 | 97 | 74 | 98 | 79 | 101 | 82 | 98 | 91 | 82 | |
| Vthrs_Comp | 90 | 84 | 86 | 82 | 91 | 76 | 90 | 82 | 86 | 92 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 4 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 4 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

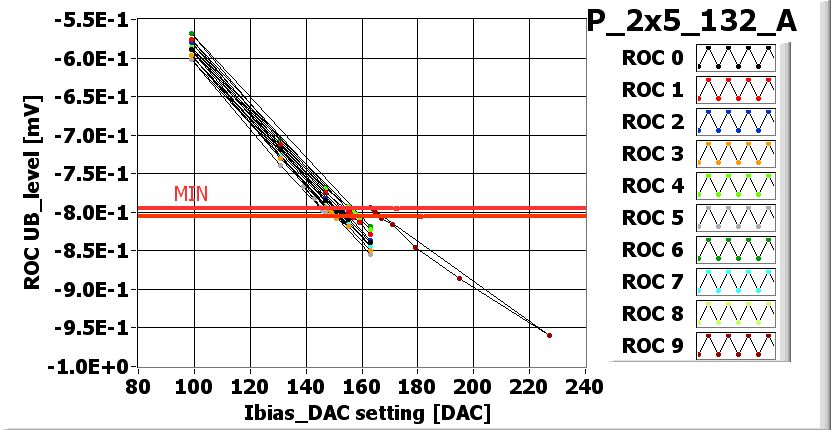

![[IMAGE] of](P_2x5_132_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

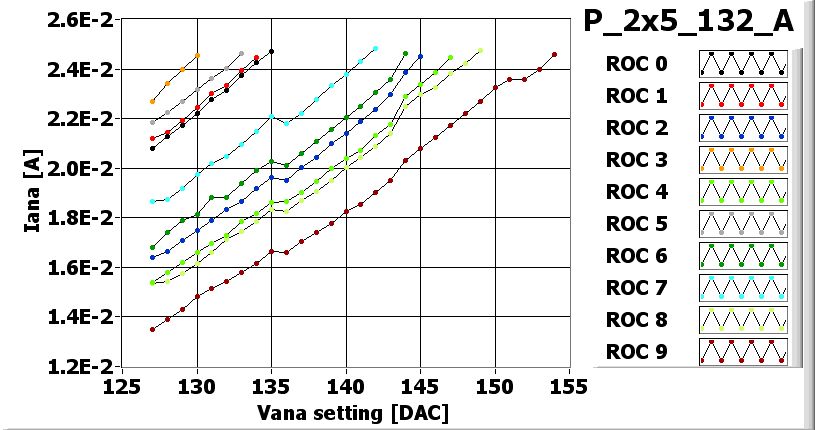

![[IMAGE] of](P_2x5_132_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_132_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_132_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_132_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_132_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 110 | 95 | 125 | 95 | 85 | 95 | 95 | 100 | 95 |
| Vsf | 140 | 140 | 140 | 140 | 145 | 145 | 145 | 150 | 150 | 145 |
| VoffsetOp | 90 | 85 | 85 | 90 | 110 | 95 | 90 | 110 | 100 | 110 |
| VIbias_PH | 100 | 105 | 105 | 100 | 100 | 95 | 100 | 95 | 95 | 105 |

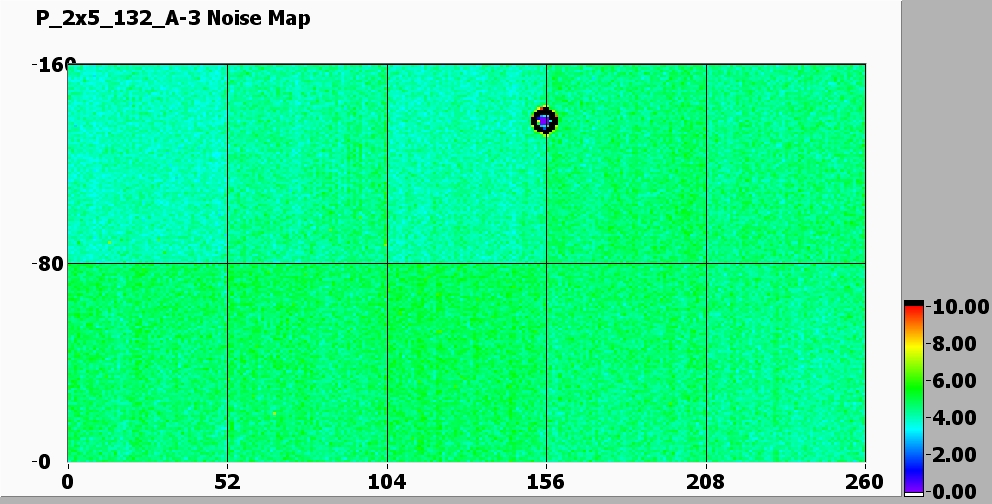

Noise MAP at VMAX
![[IMAGE] of](P_2x5_132_A-3-550-noise.jpg)

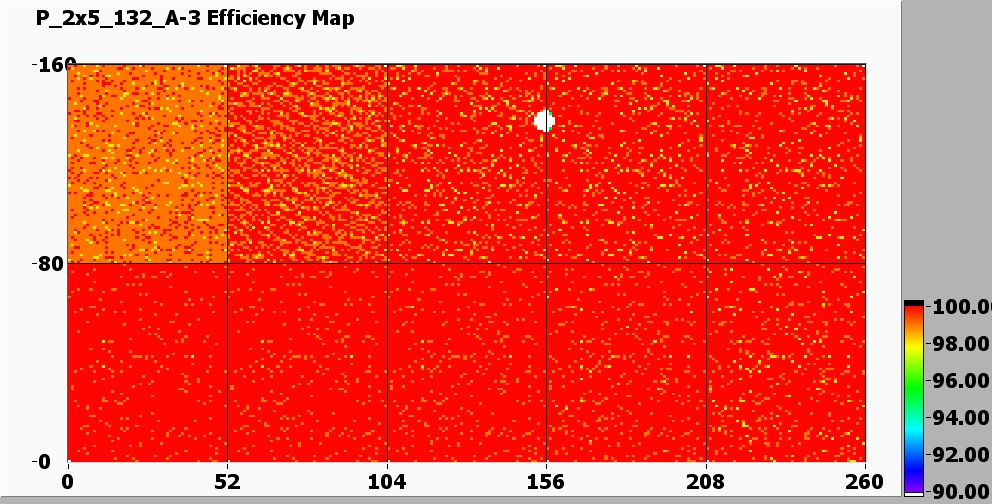

Efficiency MAP
![[IMAGE] of](P_2x5_132_A-3-550-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x5_132_A-3-200-noise.jpg)

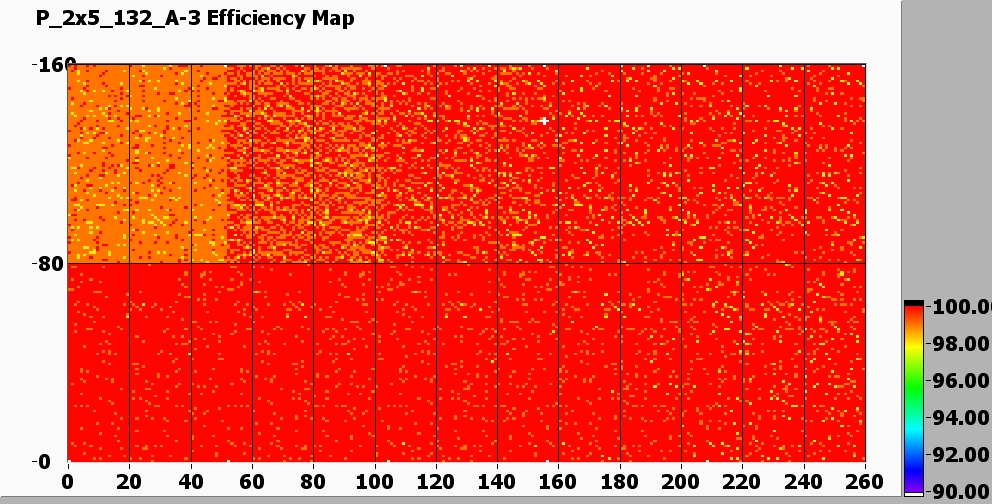

Efficiency MAP
![[IMAGE] of](P_2x5_132_A-3-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
