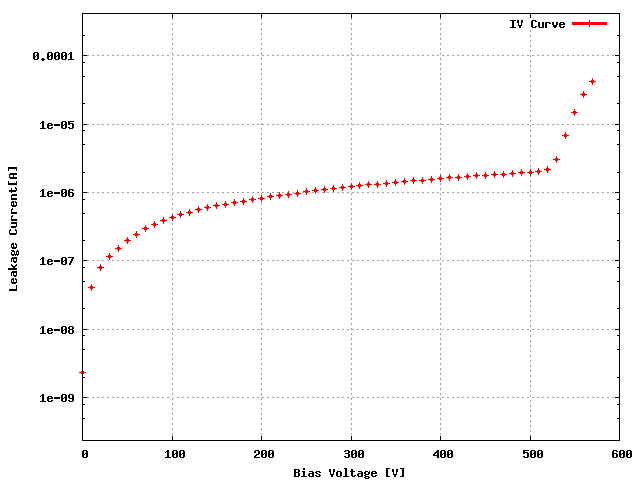

Sensor: S_2x5_132, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W45_D3LQFLT	56A
ROC1	W45_D3LQFLT	55D
ROC2	W45_D3LQFLT	55C
ROC3	W45_D3LQFLT	55B
ROC4	W45_D3LQFLT	55A
ROC5	W45_D3LQFLT	37B
ROC6	W45_D3LQFLT	37C
ROC7	W45_D3LQFLT	38B
ROC8	W45_D3LQFLT	38C
ROC9	W45_D3LQFLT	38D

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data	152	156	154	148	158	146	158	150	150	164
Vana, VanaData	135	134	145	130	147	133	144	142	149	154
CalDelData and plots	86	97	74	98	79	101	82	98	91	82
VthrCompData and plots	90	84	86	82	91	76	90	82	86	92
TestDdata ,TestD Plots	0	3	0	0	0	0	1	4	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

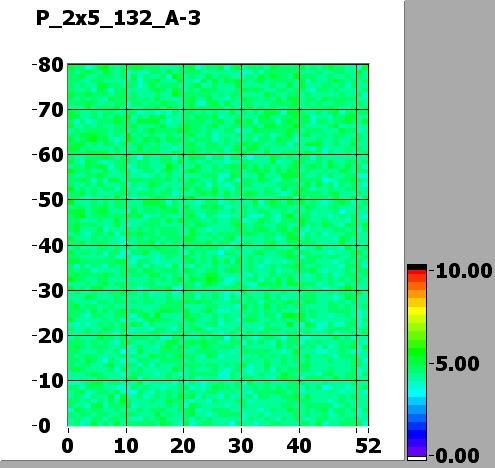

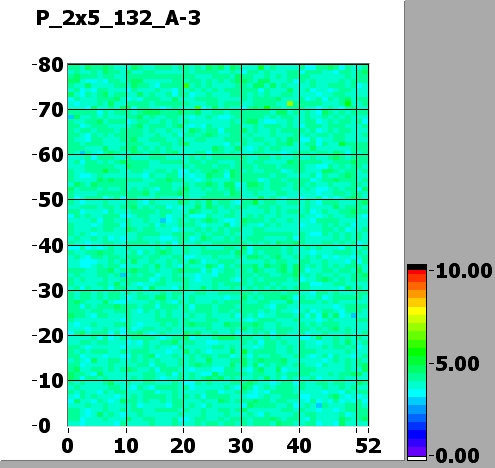

ROC0 NOISE			MEAN = 4.597474 SIGMA = 0.374579

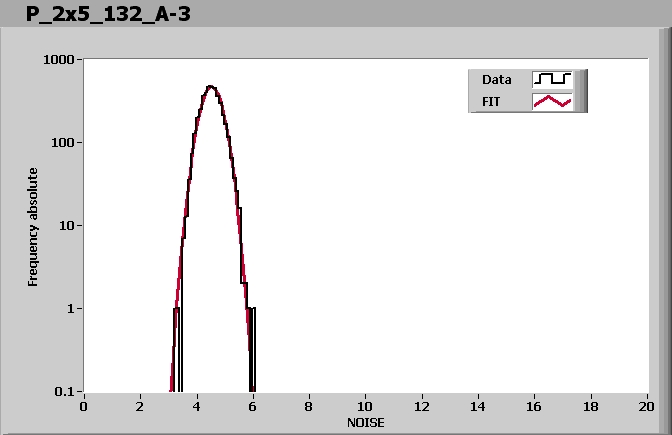

ROC1 NOISE			MEAN = 4.634163 SIGMA = 0.374439
ROC2 NOISE			MEAN = 4.726576 SIGMA = 0.361901
ROC3 NOISE			MEAN = 4.521412 SIGMA = 0.354249
ROC4 NOISE			MEAN = 4.343676 SIGMA = 0.336130
ROC5 NOISE			MEAN = 4.429325 SIGMA = 0.346117

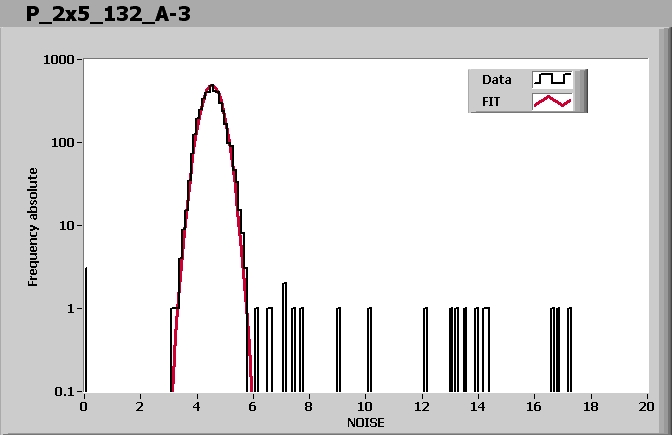

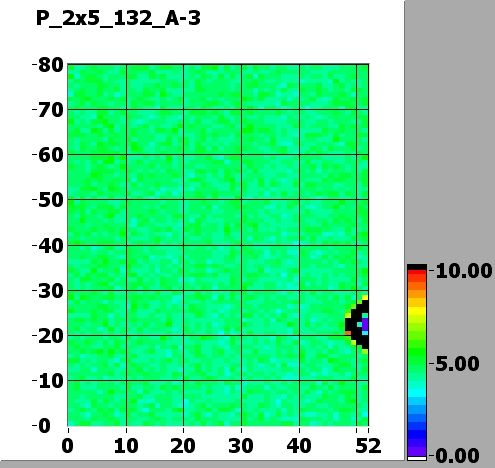

ROC6 NOISE			MEAN = 4.537542 SIGMA = 0.345390

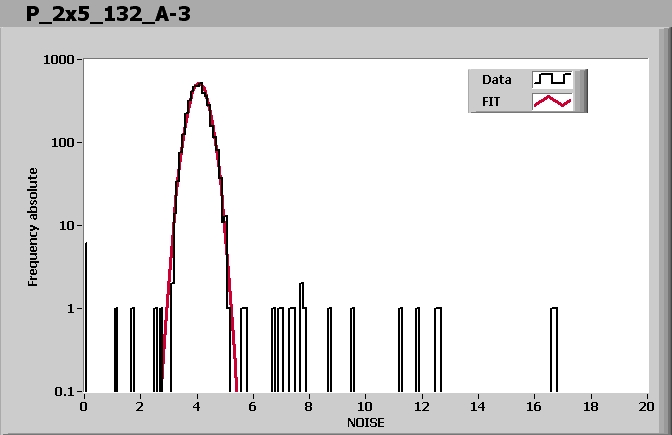

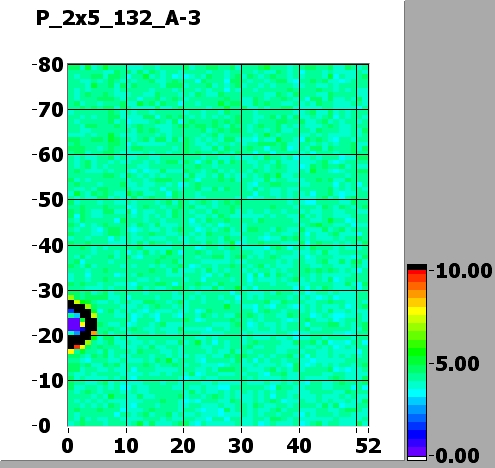

ROC7 NOISE			MEAN = 4.071458 SIGMA = 0.322891

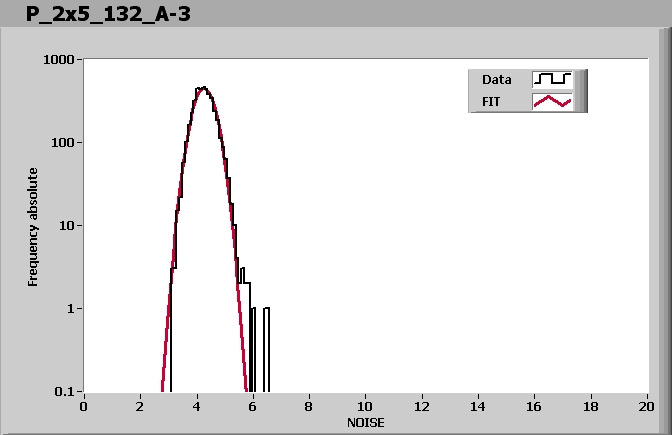

ROC8 NOISE			MEAN = 4.255461 SIGMA = 0.361735

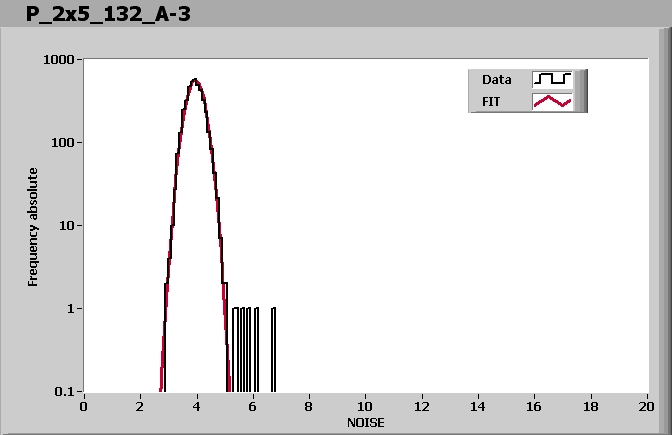

ROC9 NOISE			MEAN = 3.940801 SIGMA = 0.293926

Comment (if any):

P_2x5_132_A-1.html,

P_2x5_132_A-2.html,

P_2x5_132_A.html,

End testing time: 6:15 PM
