P_2x5_077

P_2x5_077_C-3

Production testing

Date:4/17/2007

Operator: Gino Bolla

start testing time:1:06 PM

Sensor: S_2x5_077, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 XW4KFXT 41B

ROC1 XW4KFXT 48B

ROC2 XW4KFXT 45D

ROC3 XW4KFXT 45C

ROC4 XW4KFXT 43D

ROC5 XW4KFXT 33D

ROC6 XW4KFXT 34C

ROC7 XW4KFXT 34D

ROC8 XW4KFXT 35D

ROC9 XW4KFXT 36D

ROC	ROC wafer	Label
ROC0	XW4KFXT	41B
ROC1	XW4KFXT	48B
ROC2	XW4KFXT	45D
ROC3	XW4KFXT	45C
ROC4	XW4KFXT	43D
ROC5	XW4KFXT	33D
ROC6	XW4KFXT	34C
ROC7	XW4KFXT	34D
ROC8	XW4KFXT	35D
ROC9	XW4KFXT	36D

Inspected by Lockwood Gale on date 4/11/2007

LR_dev 0.065

LL_dev 0.061

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

No assembly problems. Assembled at HALF-PRESSURE."ROC5 chn 33,34 and ROC9 chn 34 required two attempts to bond, otherwise no wirebonding problems."

PLAQUETTE made READY for ENCAPSULATION on 4/11/2007 by Lockwood Gale

PLAQUETTE encapsulated on 4/12/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 4/12/2007 by Ozhan Koybasi

P_2x5_077_C-1.html

P_2x5_077_C-2.html

P_2x5_077_C.html

PLAQUETTE TESTED on 2007-04-13 by Gino Bolla

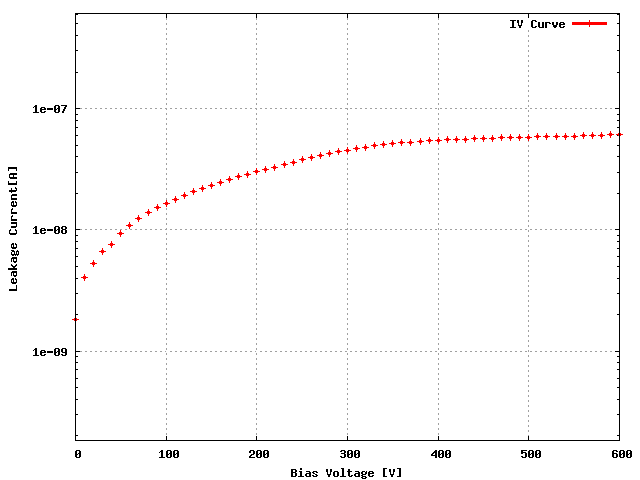

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	128	136	132	134	138	134	124	136	140	142
Vana	144	140	135	130	130	134	135	133	127	140
Cal_Del	89	77	81	93	82	81	102	84	102	92
Vthrs_Comp	74	84	71	69	73	66	74	71	66	73
Unbumped	0	1	0	0	0	0	2	1	1	0
Dead	0	0	0	0	1	31	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	1	0	0	1	31	2	1	1	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	85	100	110	125	125	100	100	130	150	80
Vsf	140	140	140	145	145	140	140	140	140	140
VoffsetOp	95	80	75	75	65	65	90	75	60	95
VIbias_PH	100	100	100	100	95	100	100	105	105	100

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 128 136 132 132 138 134 124 134 140 142

Vana, VanaData 144 140 135 130 129 135 135 133 126 140

CalDelData and plots 89 77 81 93 82 81 102 84 102 92

VthrCompData and plots 75 84 72 69 73 67 74 71 66 73

TestDdata ,TestD Plots 4160 4160 4159 4160 4160 4160 4160 4160 4160 4160

LightData ,Light Plots 0 1 0 0 0 0 2 1 1 0

Pass/Fail TestD BAD BAD BAD BAD BAD BAD BAD BAD BAD BAD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

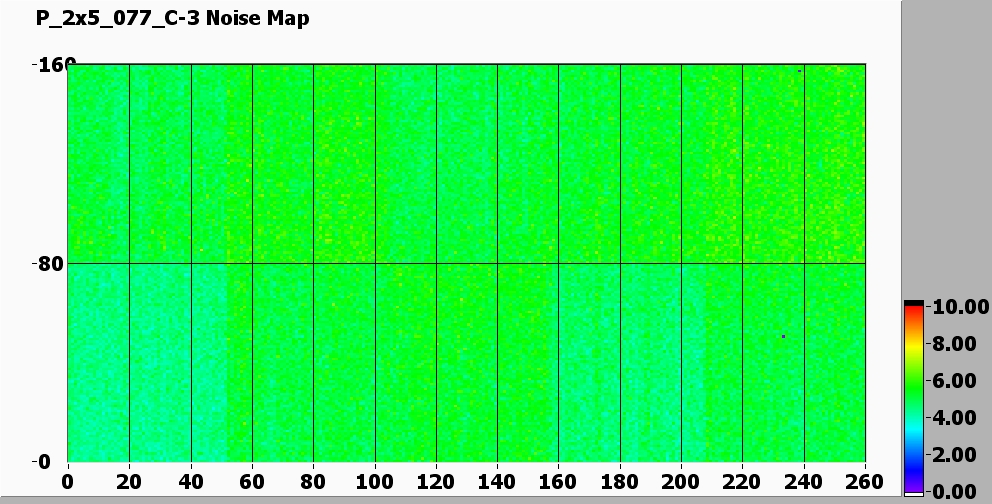

Noise MAP

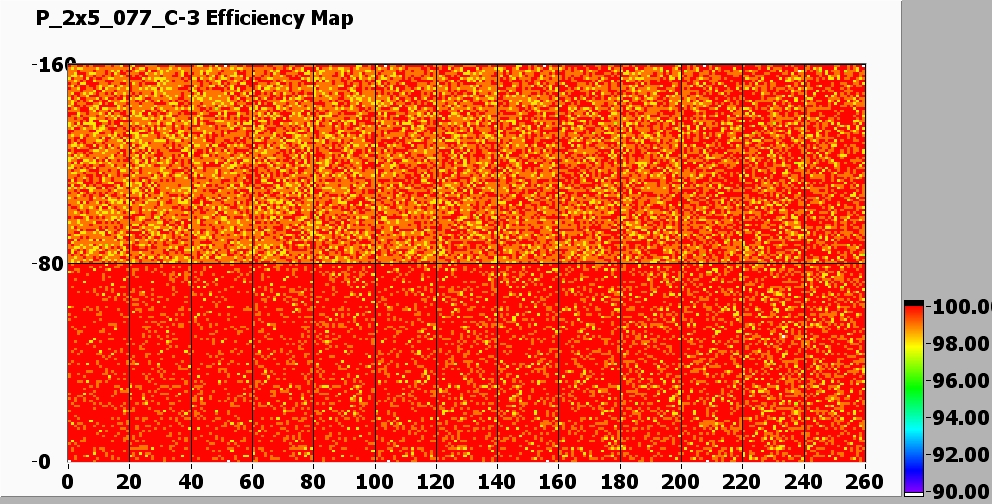

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	85	95	105	115	115	105	105	120	135	80
Vsf	140	140	140	140	140	145	140	135	140	140
VoffsetOp	95	80	75	75	65	65	90	80	60	95
VIbias_PH	100	100	100	100	95	100	100	95	105	100

ROC0 NOISE			MEAN = 4.417807 SIGMA = 0.346209

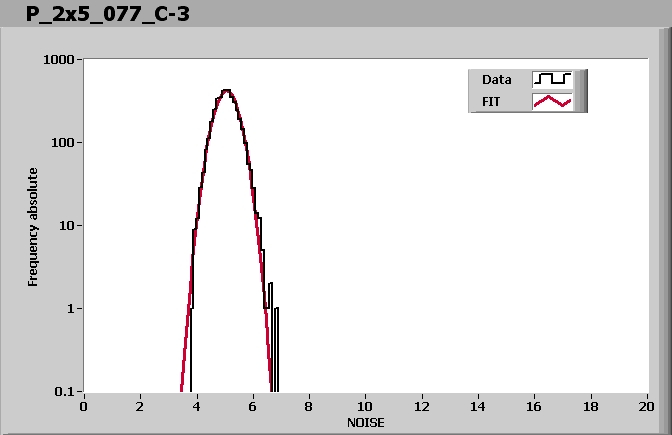

ROC1 NOISE			MEAN = 5.052790 SIGMA = 0.393137

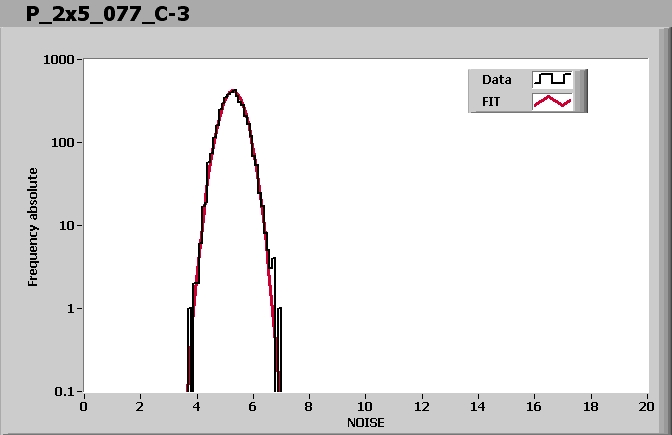

ROC2 NOISE			MEAN = 5.284057 SIGMA = 0.400886

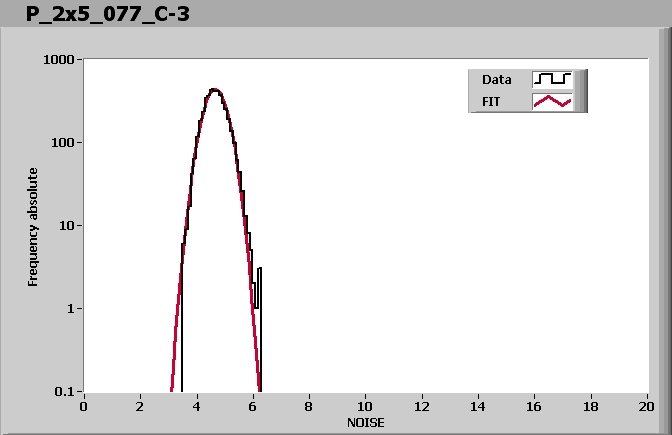

ROC3 NOISE			MEAN = 4.653117 SIGMA = 0.381740
ROC4 NOISE			MEAN = 5.078472 SIGMA = 0.399449

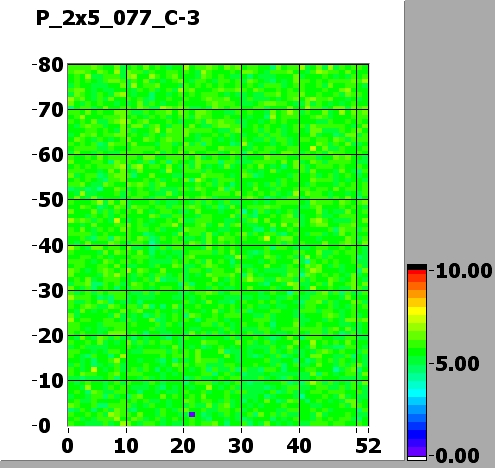

ROC5 NOISE			MEAN = 5.644023 SIGMA = 0.433814
ROC6 NOISE			MEAN = 5.291521 SIGMA = 0.450097
ROC7 NOISE			MEAN = 5.023050 SIGMA = 0.376550

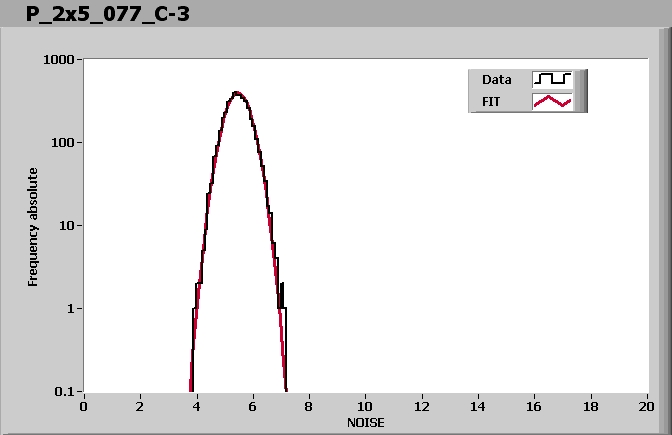

ROC8 NOISE			MEAN = 5.458556 SIGMA = 0.421771

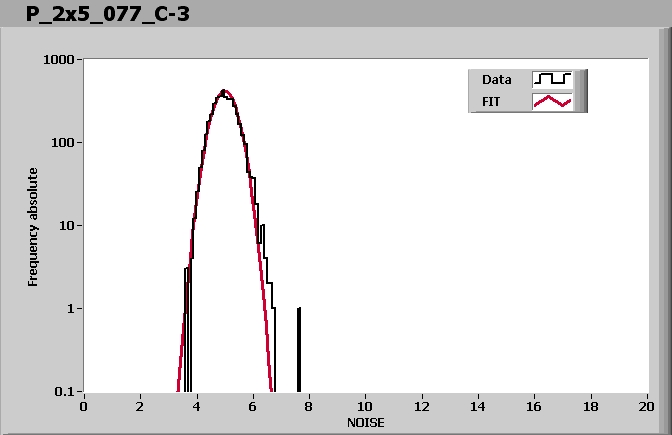

ROC9 NOISE			MEAN = 4.987933 SIGMA = 0.404687

Comment (if any):

This Device have been tested 3Times prior to this one and here are the links to the previous tests:

P_2x5_077_C-1.html,

P_2x5_077_C-2.html,

P_2x5_077_C.html,

End testing time: 1:27 PM

Ibias_DAC, Ibias_DAC Data	128	136	132	132	138	134	124	134	140	142
Vana, VanaData	144	140	135	130	129	135	135	133	126	140
CalDelData and plots	89	77	81	93	82	81	102	84	102	92
VthrCompData and plots	75	84	72	69	73	67	74	71	66	73
TestDdata ,TestD Plots	4160	4160	4159	4160	4160	4160	4160	4160	4160	4160
LightData ,Light Plots	0	1	0	0	0	0	2	1	1	0
Pass/Fail TestD	BAD	BAD	BAD	BAD	BAD	BAD	BAD	BAD	BAD	BAD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
