In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/26/2023
Apparatus, InPlane
Material, INPL25
Sample, 6
Length (mm), 44.13, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 13
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 26.0064, 25.4053, 24.7528, 24.0729, 23.4551, 22.7996
Cold Fluxmeter Temperatures (C), 14.7778, 14.1134, 13.4711, 12.8791, 12.2903, 11.5536
Hot Fluxmeter Temperature Uncertainties (C), 0.00147206, 0.00148366, 0.00146457, 0.00143269, 0.00117285, 0.00148718
Cold Fluxmeter Temperature Uncertainties (C), 0.000918179, 0.000989722, 0.000933056, 0.00119989, 0.000922579, 0.00104786
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.597911, -1.25309, -1.93269, -2.55334, -3.20812
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.663428, -1.30427, -1.89608, -2.48501, -3.22165
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00240296, 0.00210218, 0.00200701, 0.00193413, 0.00174968
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00174329, 0.00100773, 0.00170003, 0.00131314, 0.00125944

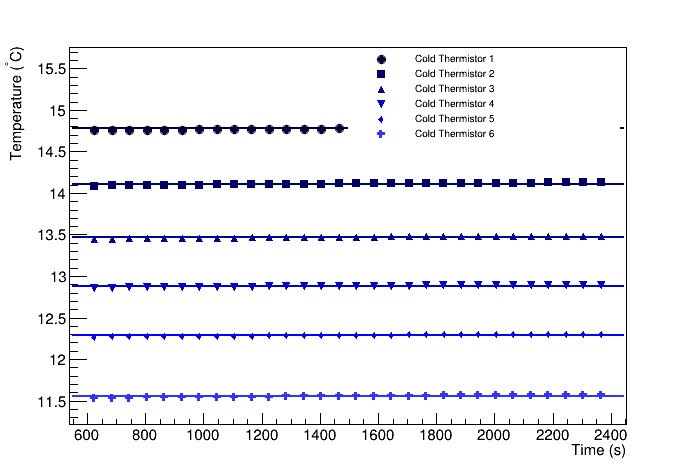

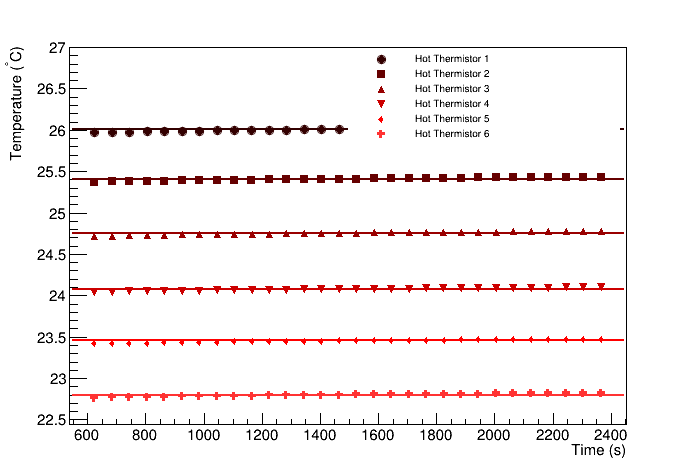

Heater Thermistors	Cooler Thermistors

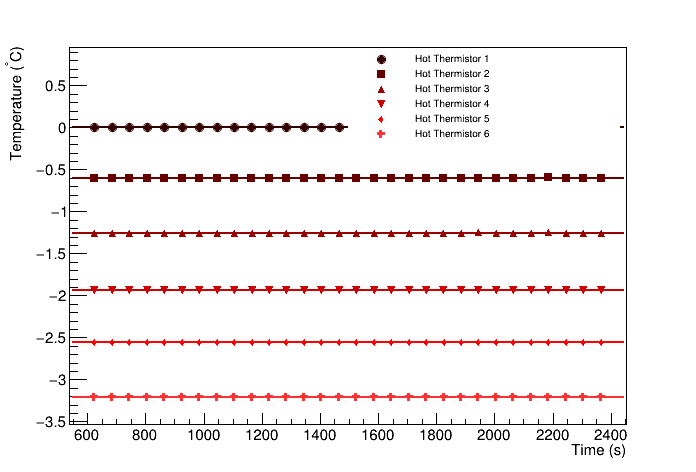

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 9/5/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 28643.3 +/- 1087.29
Cold fluxmeter flux (W/m^2), 28129.3 +/- 1068.12
Heat flux through sample (W/m^2), 28386.3 +/- 804.256
Heat flow through sample (W), 9.17128 +/- 0.259846
Temperature at hot end of sample (C), 22.1584 +/- 0.164476
Temperature at cold end of sample (C), 15.4013 +/- 0.0767978
deltaT (C), 6.75708 +/- 0.181522
R (K/W), 0.736765, 0.028766
RA (Km^2/W), 0.000151037, 6.17983e-06

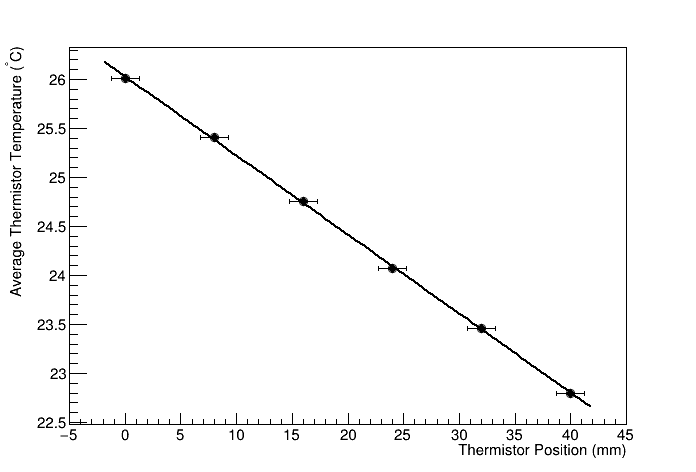

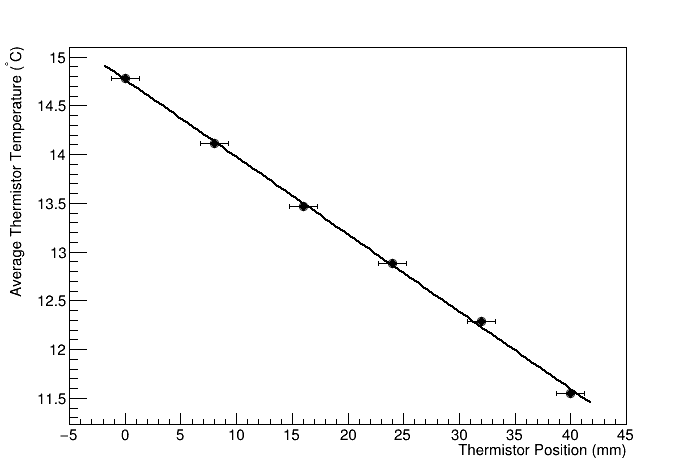

Hot flux meter fit	Cold flux meter fit

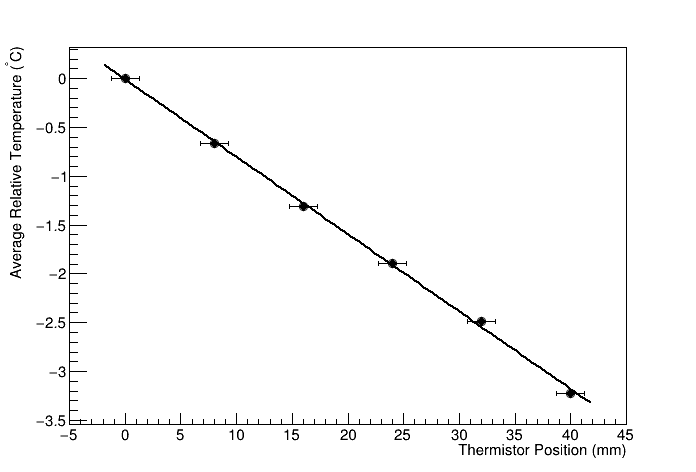

Hot flux meter difference fit	Cold flux meter difference fit
