In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/26/2023
Apparatus, InPlane
Material, INPL25
Sample, 4
Length (mm), 14.14, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 17.09
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 130
Hot Fluxmeter Temperatures (C), 28.3317, 27.3874, 26.4147, 25.442, 24.5275, 23.4603
Cold Fluxmeter Temperatures (C), 15.0757, 14.0698, 13.0846, 12.1352, 10.0688
Hot Fluxmeter Temperature Uncertainties (C), 0.00181047, 0.00192219, 0.0018586, 0.00196637, 0.00173811, 0.00177363
Cold Fluxmeter Temperature Uncertainties (C), 0.00121691, 0.00408359, 0.00128299, 0.00160569, 0.00181726
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.944458, -1.91683, -2.88995, -3.8042, -4.87143
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -1.00586, -1.99095, -2.9407, -5.00677
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00315691, 0.00260482, 0.00259294, 0.00273436, 0.00234443
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00517263, 0.0012403, 0.00231563, 0.00203213

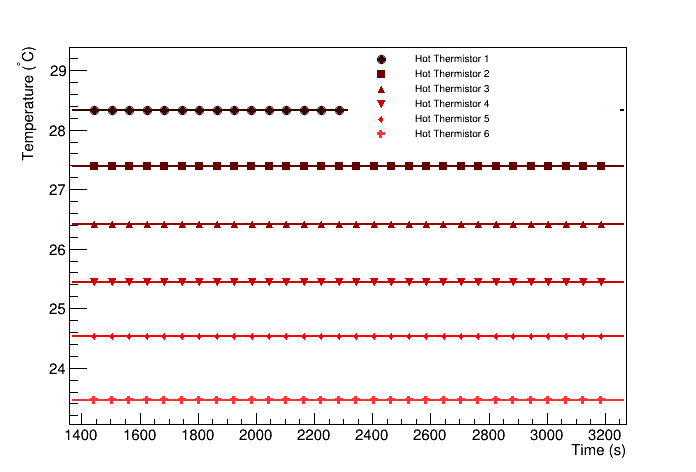

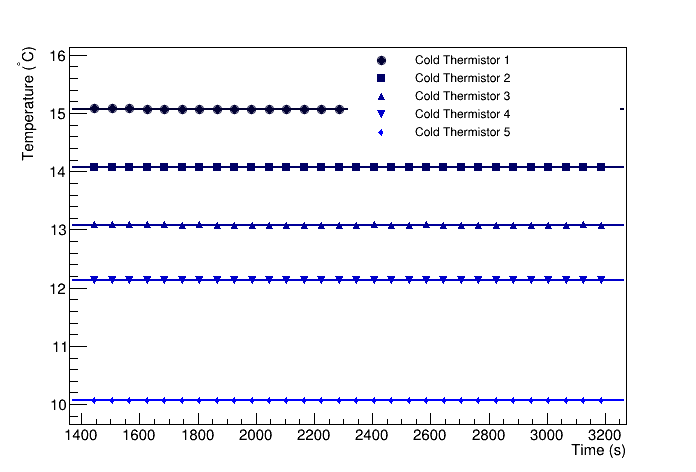

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, m
Analysis date, 9/7/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 43006.1 +/- 1632.5
Cold fluxmeter flux (W/m^2), 44282.9 +/- 1827.75
Heat flux through sample (W/m^2), 43644.5 +/- 1381.67
Heat flow through sample (W), 14.101 +/- 0.4464
Temperature at hot end of sample (C), 22.5352 +/- 0.247195
Temperature at cold end of sample (C), 16.0802 +/- 0.122187
deltaT (C), 6.45503 +/- 0.275745
R (K/W), 0.45777, 0.0243394
RA (Km^2/W), 9.38429e-05, 5.12e-06

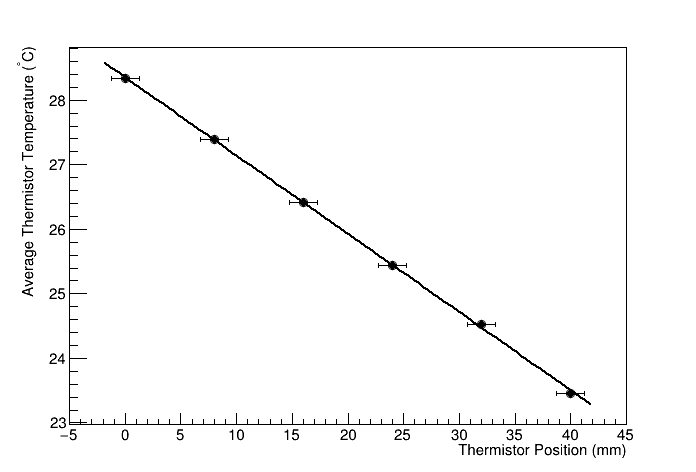

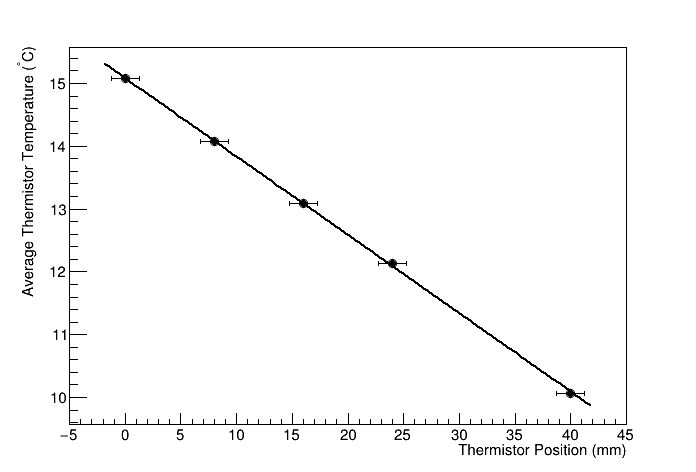

Hot flux meter fit	Cold flux meter fit

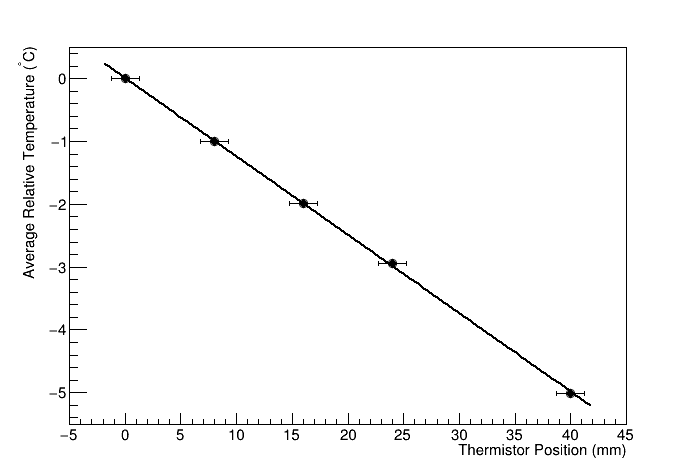

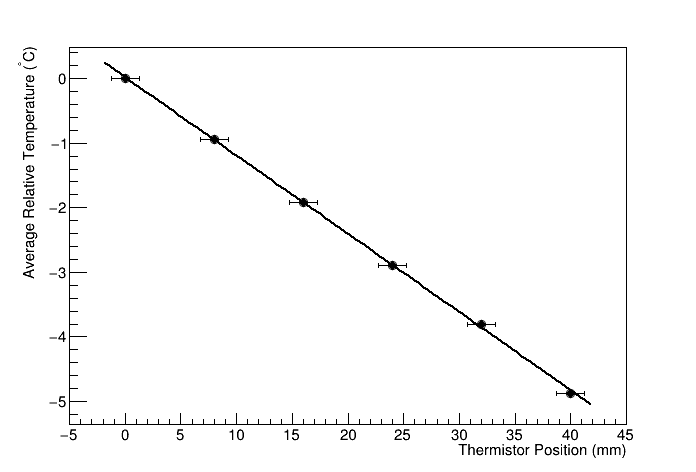

Hot flux meter difference fit	Cold flux meter difference fit
