In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/28/2023
Apparatus, InPlane
Material, INPL23
Sample, 7
Length (mm), 45.11, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 12.98
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 26.5368, 25.8235, 25.2649, 24.5813, 23.9723, 23.2416
Cold Fluxmeter Temperatures (C), 10.0571, 9.37445, 8.73509, 8.12279, 7.52159, 6.76721
Hot Fluxmeter Temperature Uncertainties (C), 0.00136203, 0.00157274, 0.00139367, 0.00132785, 0.00127237, 0.00138913
Cold Fluxmeter Temperature Uncertainties (C), 0.000786314, 0.000909545, 0.000816412, 0.00120029, 0.000857265, 0.00105952
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.713018, -1.27134, -1.95513, -2.56395, -3.29491
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.682396, -1.3217, -1.93409, -2.53524, -3.28966
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00248645, 0.0020421, 0.00190455, 0.00206585, 0.00189447
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00151131, 0.000922251, 0.00167391, 0.00117314, 0.00120366

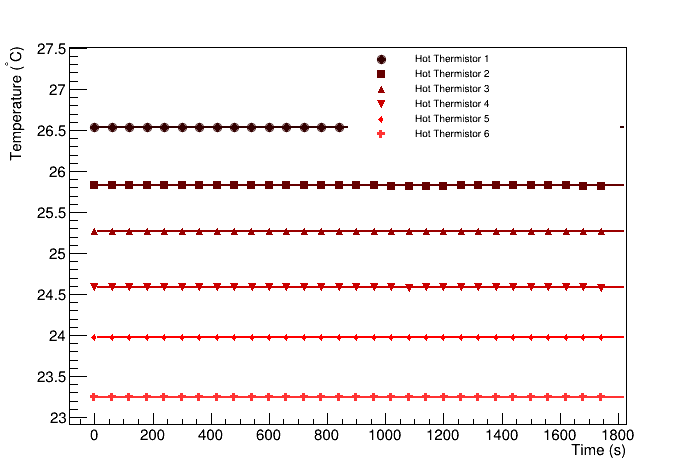

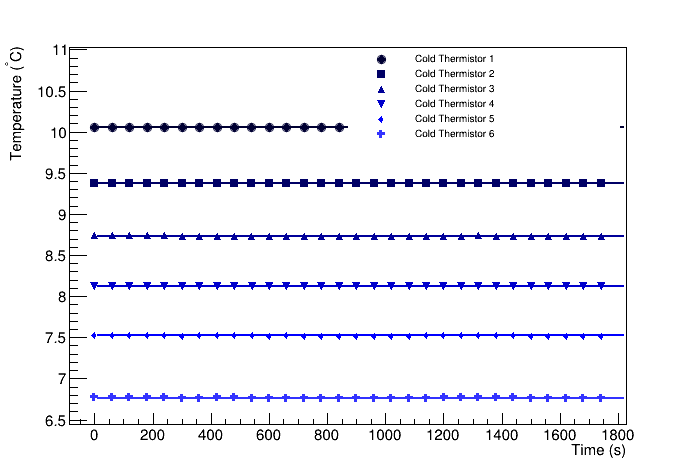

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 8/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 28824.8 +/- 1094.64
Cold fluxmeter flux (W/m^2), 28706.9 +/- 1090.09
Heat flux through sample (W/m^2), 28765.9 +/- 774.663
Heat flow through sample (W), 9.2939 +/- 0.250284
Temperature at hot end of sample (C), 22.6297 +/- 0.165764
Temperature at cold end of sample (C), 10.694 +/- 0.0783153
deltaT (C), 11.9357 +/- 0.183333
R (K/W), 1.28425, 0.039815
RA (Km^2/W), 0.000263272, 8.77478e-06

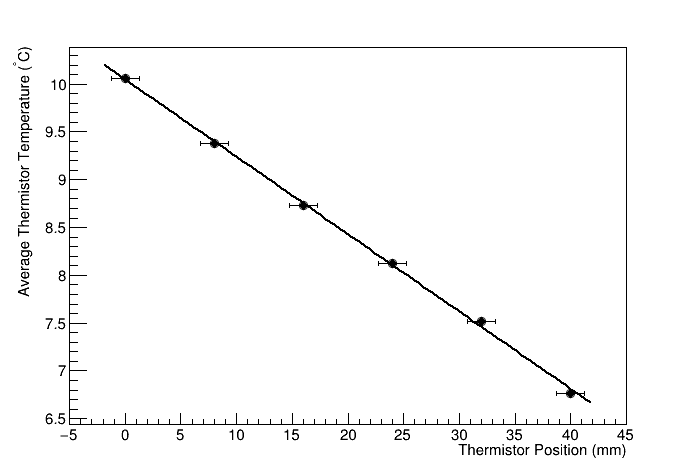

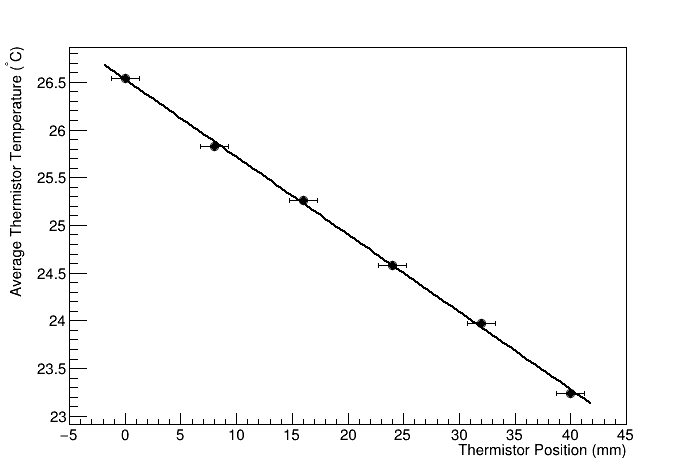

Hot flux meter fit	Cold flux meter fit

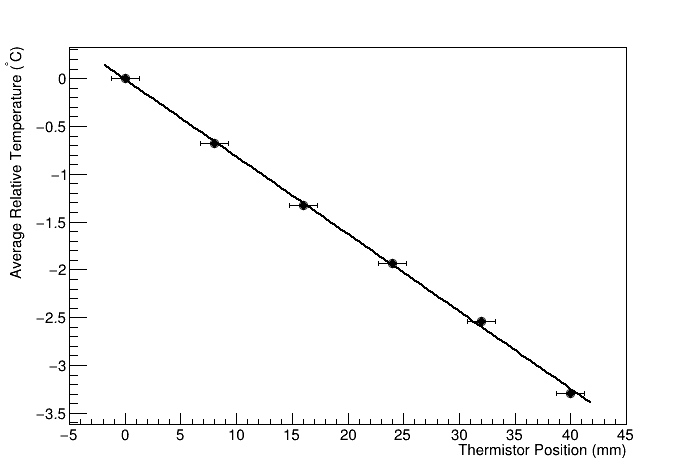

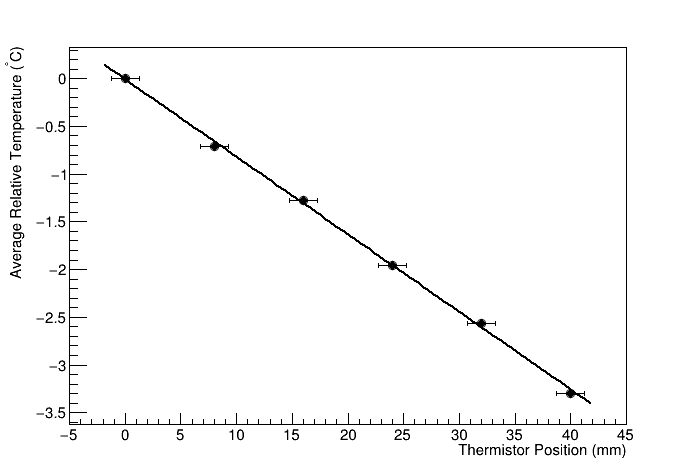

Hot flux meter difference fit	Cold flux meter difference fit
