In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/26/23
Apparatus, InPlane
Material, INPL24
Sample, 4
Length (mm), 19.67, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 16.19
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130

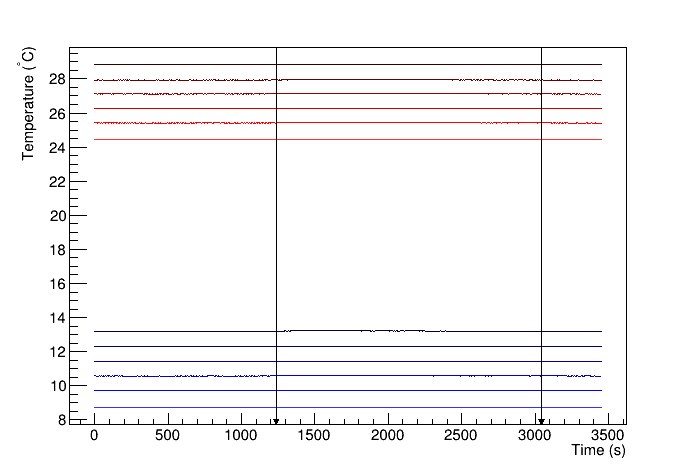

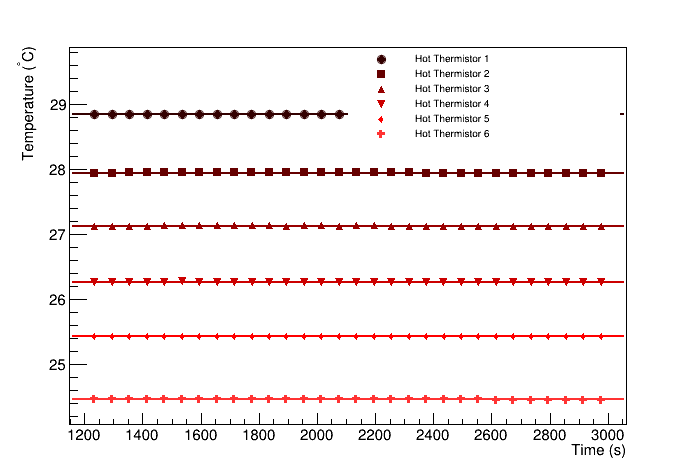

Hot Fluxmeter Temperatures (C), 28.8411, 27.9413, 27.1238, 26.258, 25.4223, 24.4514
Cold Fluxmeter Temperatures (C), 13.2147, 12.2958, 11.4301, 10.5824, 9.71595, 8.73356
Hot Fluxmeter Temperature Uncertainties (C), 0.00145056, 0.00148371, 0.00150512, 0.00139089, 0.00125883, 0.00135761
Cold Fluxmeter Temperature Uncertainties (C), 0.000846861, 0.000976439, 0.000888868, 0.00114931, 0.000877374, 0.000985325
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.899487, -1.71718, -2.58302, -3.41923, -4.3901
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.919486, -1.78508, -2.63274, -3.49881, -4.48204
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00238041, 0.00219483, 0.00203754, 0.00203886, 0.00181085
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.0016871, 0.000918623, 0.00167349, 0.001151, 0.00122171

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 9/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0

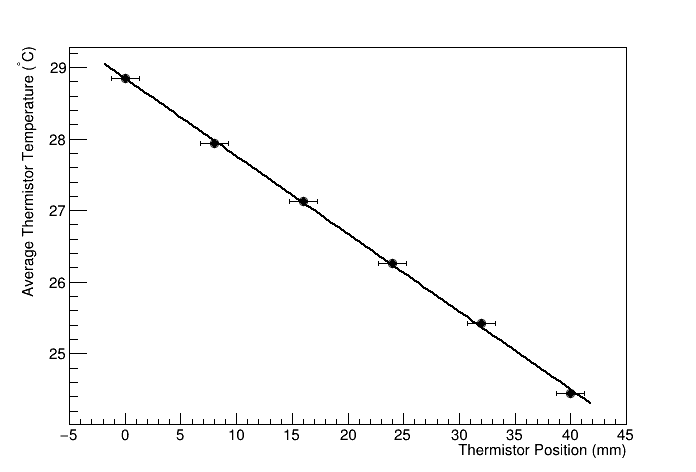

Hot fluxmeter flux (W/m^2), 38532.6 +/- 1462.81
Cold fluxmeter flux (W/m^2), 39317 +/- 1492.49
Heat flux through sample (W/m^2), 38924.8 +/- 1116.11
Heat flow through sample (W), 12.5761 +/- 0.3606
Temperature at hot end of sample (C), 23.6342 +/- 0.22147
Temperature at cold end of sample (C), 14.0962 +/- 0.107225
deltaT (C), 9.53805 +/- 0.246061
R (K/W), 0.758424, 0.0292529
RA (Km^2/W), 0.000155477, 6.29137e-06

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
