In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/28/2023
Apparatus, InPlane
Material, INPL23
Sample, 4
Length (mm), 14.83, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 17.14
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 31.1227, 30.0406, 29.1449, 28.1396, 27.1709, 26.0029
Cold Fluxmeter Temperatures (C), 14.8454, 13.8038, 12.8113, 11.8419, 10.8379, 9.7366
Hot Fluxmeter Temperature Uncertainties (C), 0.00128765, 0.00151504, 0.00156565, 0.00131639, 0.00123454, 0.00160651
Cold Fluxmeter Temperature Uncertainties (C), 0.000877124, 0.00105542, 0.000907947, 0.00118001, 0.00100209, 0.00107712
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -1.08054, -1.9756, -2.98188, -3.95067, -5.11828
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -1.04116, -2.03519, -3.00345, -4.00637, -5.10768
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00244508, 0.00200825, 0.00205541, 0.00199432, 0.00202676
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.0017208, 0.00101083, 0.00160288, 0.00130142, 0.00120703

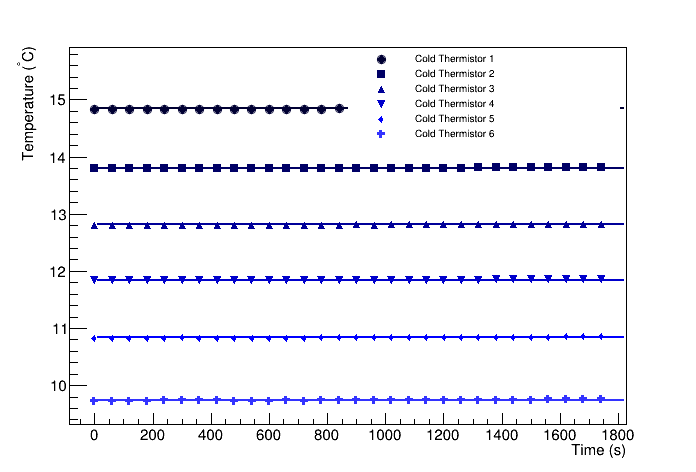

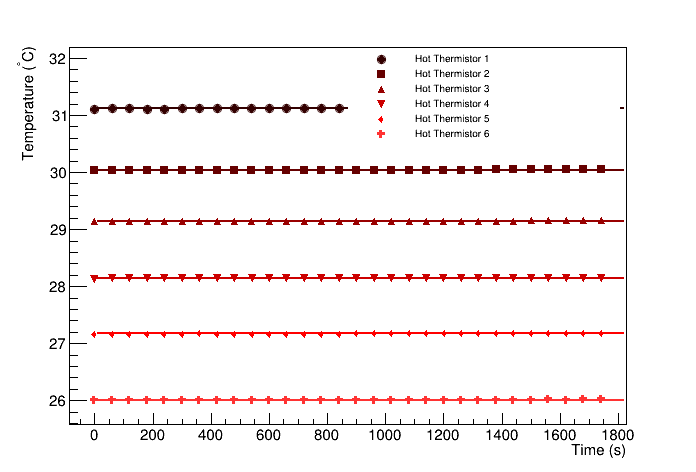

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 8/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 44692.4 +/- 1697.22
Cold fluxmeter flux (W/m^2), 44900.1 +/- 1704.28
Heat flux through sample (W/m^2), 44796.3 +/- 1207.09
Heat flow through sample (W), 14.4731 +/- 0.389997
Temperature at hot end of sample (C), 25.078 +/- 0.257045
Temperature at cold end of sample (C), 15.855 +/- 0.122478
deltaT (C), 9.22301 +/- 0.284733
R (K/W), 0.63725, 0.0261131
RA (Km^2/W), 0.000130636, 5.58675e-06

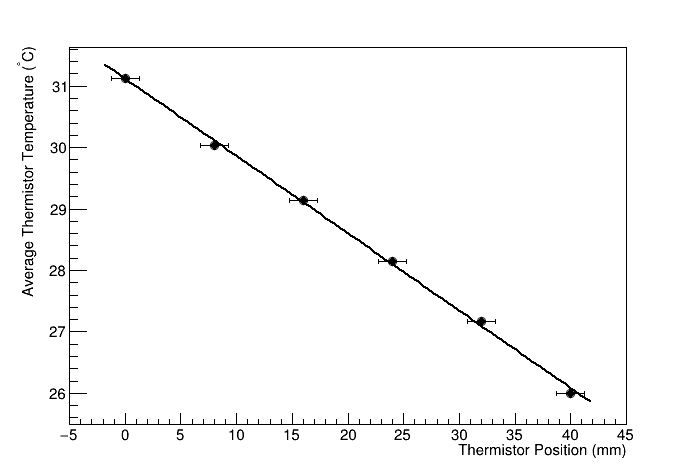

Hot flux meter fit	Cold flux meter fit

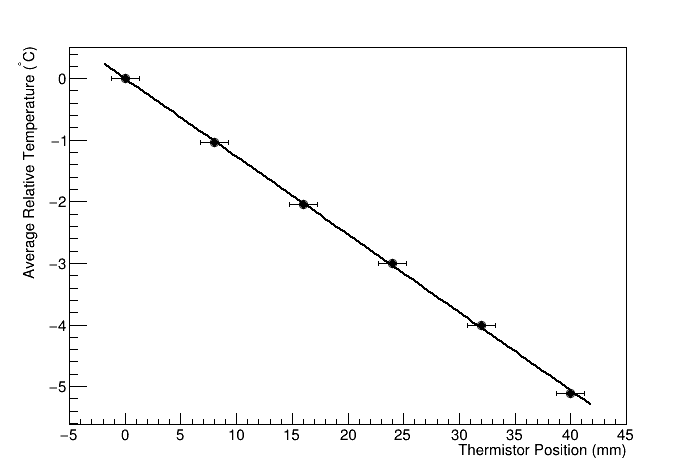

Hot flux meter difference fit	Cold flux meter difference fit
