In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/29/2023
Apparatus, InPlane
Material, INPL24
Sample, 7
Length (mm), 45.14, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 13
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 26.0929, 25.482, 24.8401, 24.1408, 23.5099, 22.8226
Cold Fluxmeter Temperatures (C), 10.0654, 9.38694, 8.73779, 8.12615, 7.5376, 6.77316
Hot Fluxmeter Temperature Uncertainties (C), 0.00117255, 0.00120146, 0.00124625, 0.00125849, 0.00102761, 0.00124118
Cold Fluxmeter Temperature Uncertainties (C), 0.00060594, 0.00074994, 0.000725772, 0.000995516, 0.000796104, 0.000875884
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.610953, -1.25277, -1.95205, -2.58298, -3.27012
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.67871, -1.32785, -1.93947, -2.52835, -3.29247
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00197379, 0.00171736, 0.00172143, 0.00177606, 0.00152339
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00122364, 0.000780965, 0.00134034, 0.00101573, 0.000979555

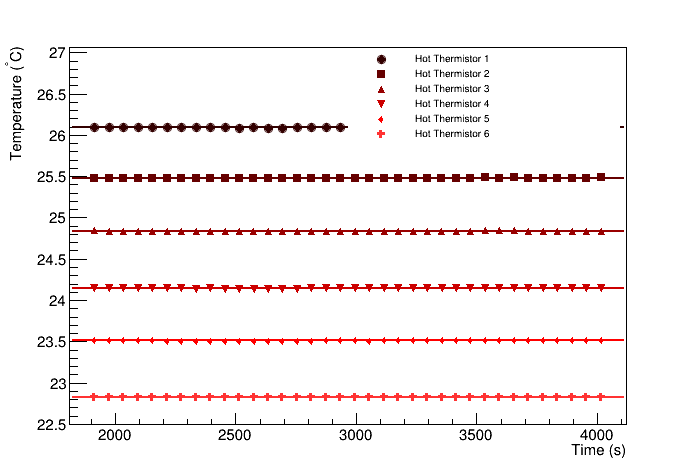

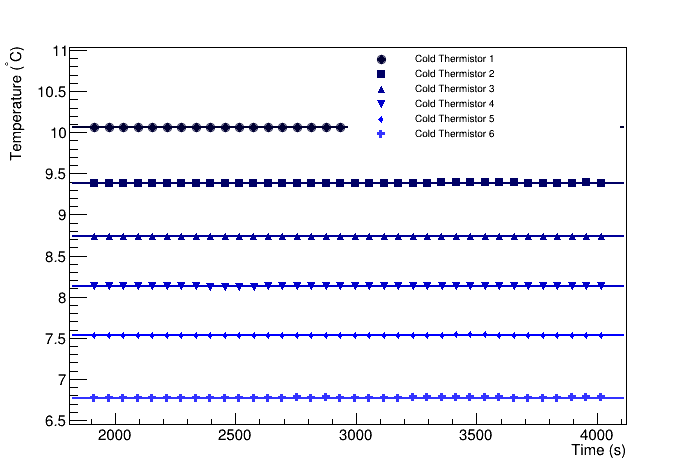

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 8/31/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 29127.9 +/- 1105.72
Cold fluxmeter flux (W/m^2), 28715.3 +/- 1090.43
Heat flux through sample (W/m^2), 28921.6 +/- 803.414
Heat flow through sample (W), 9.34423 +/- 0.259573
Temperature at hot end of sample (C), 22.1839 +/- 0.167436
Temperature at cold end of sample (C), 10.7025 +/- 0.0783327
deltaT (C), 11.4813 +/- 0.184853
R (K/W), 1.22871, 0.0394508
RA (Km^2/W), 0.000251885, 8.65479e-06

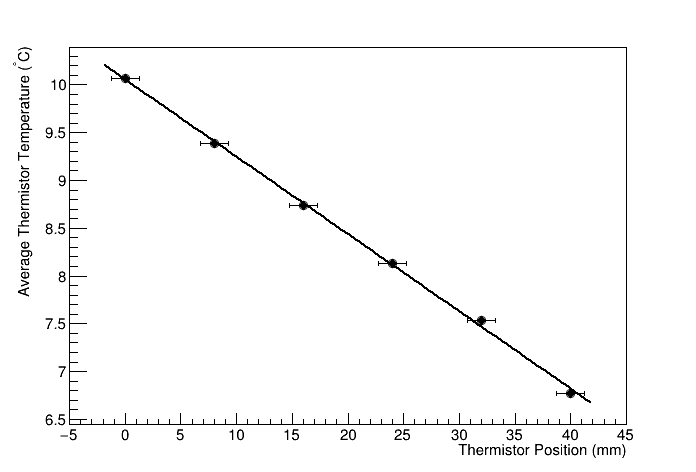

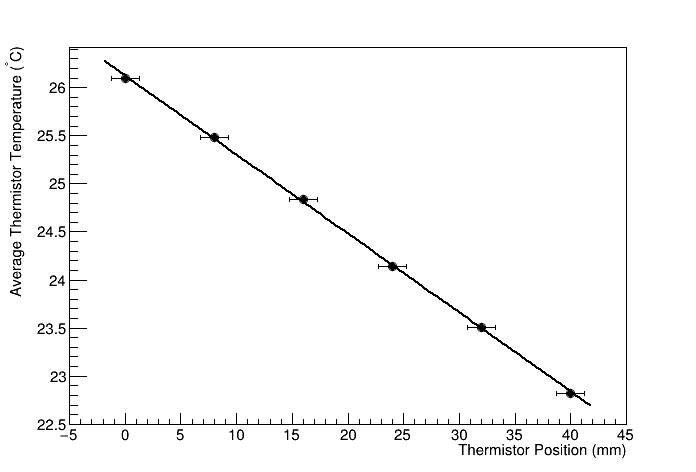

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
