In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/29/2023
Apparatus, InPlane
Material, INPL24
Sample, 6
Length (mm), 35.25, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 13.55
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 26.1614, 25.4958, 24.7958, 24.0528, 23.3333, 22.6769
Cold Fluxmeter Temperatures (C), 10.664, 9.93693, 9.25122, 8.59506, 7.95025, 7.1449
Hot Fluxmeter Temperature Uncertainties (C), 0.00133942, 0.00125828, 0.00137445, 0.00130492, 0.00116294, 0.00137244
Cold Fluxmeter Temperature Uncertainties (C), 0.000667948, 0.000849316, 0.000771058, 0.0011145, 0.000872382, 0.000928751
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.665672, -1.36551, -2.1083, -2.82843, -3.48456
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.726281, -1.4118, -2.06788, -2.71283, -3.51817
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00226594, 0.00185731, 0.00180604, 0.00203098, 0.00176118
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00138771, 0.000821653, 0.00151931, 0.00112238, 0.00108013

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 8/31/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 31267.4 +/- 1186.91
Cold fluxmeter flux (W/m^2), 30719.3 +/- 1166.41
Heat flux through sample (W/m^2), 30993.4 +/- 876.014
Heat flow through sample (W), 10.0136 +/- 0.283029
Temperature at hot end of sample (C), 21.9532 +/- 0.179719
Temperature at cold end of sample (C), 11.3472 +/- 0.0838168
deltaT (C), 10.6061 +/- 0.198303
R (K/W), 1.05917, 0.0358942
RA (Km^2/W), 0.000217129, 7.82326e-06

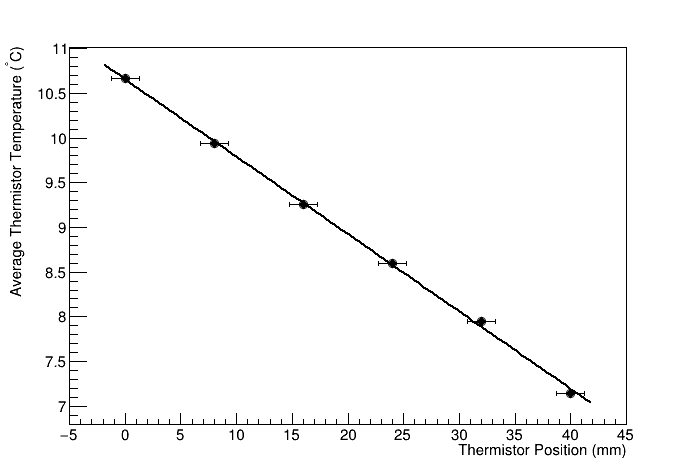

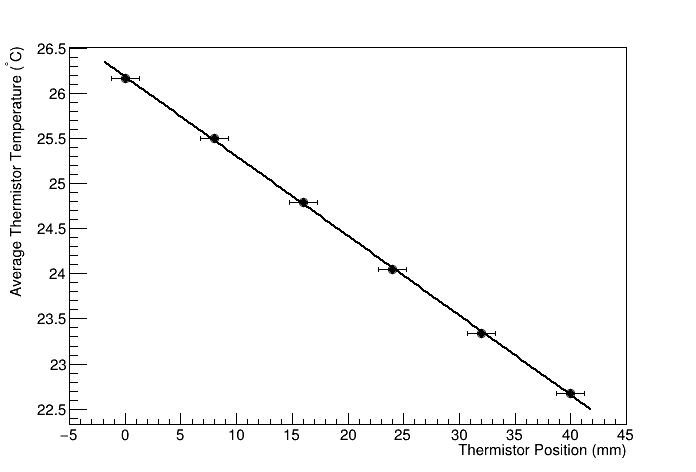

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
