In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/30/2023
Apparatus, InPlane
Material, INPL24
Sample, 5
Length (mm), 24.95, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 14.25
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 27.9661, 27.1252, 26.3565, 25.4699, 24.6879, 23.7847
Cold Fluxmeter Temperatures (C), 12.0945, 11.253, 10.4451, 9.6721, 8.89253, 7.98123
Hot Fluxmeter Temperature Uncertainties (C), 0.00125941, 0.00138022, 0.00139548, 0.00143693, 0.00122998, 0.00132653
Cold Fluxmeter Temperature Uncertainties (C), 0.000747181, 0.000858194, 0.000771626, 0.00111986, 0.000888737, 0.000951914
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.840738, -1.60889, -2.49322, -3.27671, -4.17973
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.842522, -1.65118, -2.42331, -3.20209, -4.1122
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00202973, 0.00177989, 0.00187821, 0.00191802, 0.00159617
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00143448, 0.000877609, 0.0015608, 0.00117045, 0.00112432

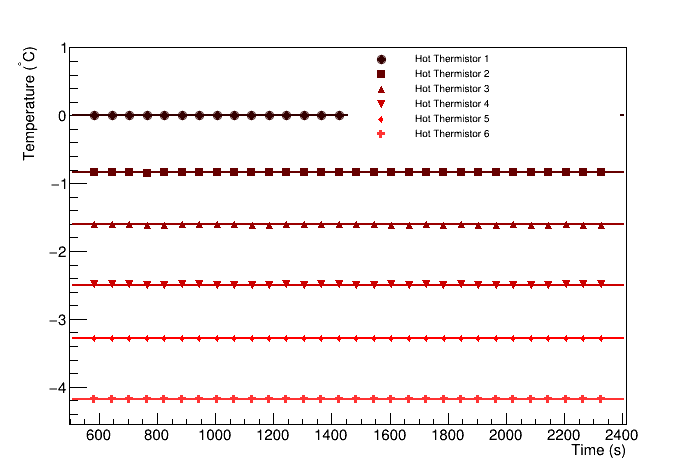

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 8/31/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 36898.5 +/- 1400.68
Cold fluxmeter flux (W/m^2), 36041.6 +/- 1368.21
Heat flux through sample (W/m^2), 36470.1 +/- 1068.66
Heat flow through sample (W), 11.783 +/- 0.34527
Temperature at hot end of sample (C), 22.9866 +/- 0.212203
Temperature at cold end of sample (C), 12.9 +/- 0.0983359
deltaT (C), 10.0866 +/- 0.233881
R (K/W), 0.856025, 0.0319869
RA (Km^2/W), 0.000175485, 6.89993e-06

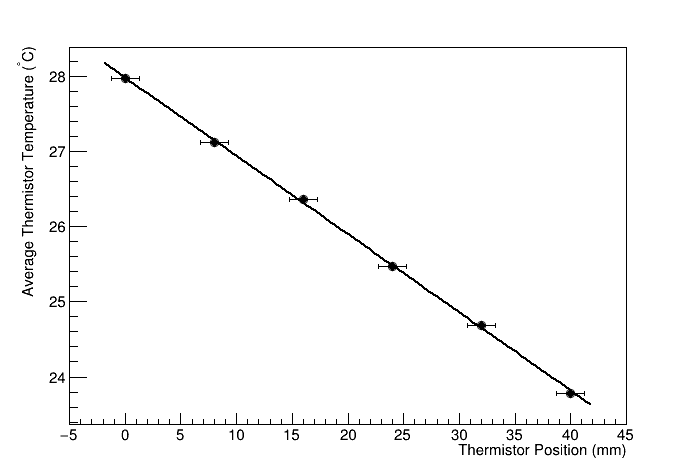

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
