In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/26/2023
Apparatus, InPlane
Material, INPL23
Sample, 2
Length (mm), 9.9, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 17.5
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 29.9219, 28.8441, 27.8987, 26.8469, 25.8781, 24.735
Cold Fluxmeter Temperatures (C), 15.2246, 14.1544, 13.136, 12.1325, 11.1095, 9.97919
Hot Fluxmeter Temperature Uncertainties (C), 0.00149915, 0.00148907, 0.00155355, 0.0015173, 0.00133602, 0.00150707
Cold Fluxmeter Temperature Uncertainties (C), 0.000883465, 0.00103917, 0.000967049, 0.00112615, 0.000872099, 0.00107584
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -1.07728, -2.0231, -3.07496, -4.04361, -5.18708
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -1.07004, -2.08849, -3.09191, -4.11487, -5.2449
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00235848, 0.00225418, 0.00209237, 0.00218717, 0.00192151
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00170734, 0.00103148, 0.00159168, 0.00130528, 0.00129504

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 9/1/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 45524.2 +/- 1728.22
Cold fluxmeter flux (W/m^2), 46117.5 +/- 1750.54
Heat flux through sample (W/m^2), 45820.8 +/- 1265.22
Heat flow through sample (W), 14.8042 +/- 0.408776
Temperature at hot end of sample (C), 23.7637 +/- 0.26168
Temperature at cold end of sample (C), 16.2603 +/- 0.12578
deltaT (C), 7.50332 +/- 0.29034
R (K/W), 0.506839, 0.0240934
RA (Km^2/W), 0.000103902, 5.10014e-06

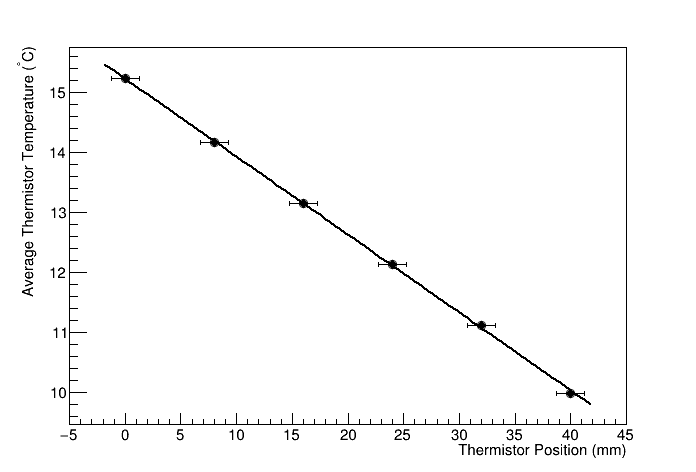

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
