In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/26/2023
Apparatus, InPlane
Material, INPL24
Sample, 1
Length (mm), 4.92, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 17.5
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130

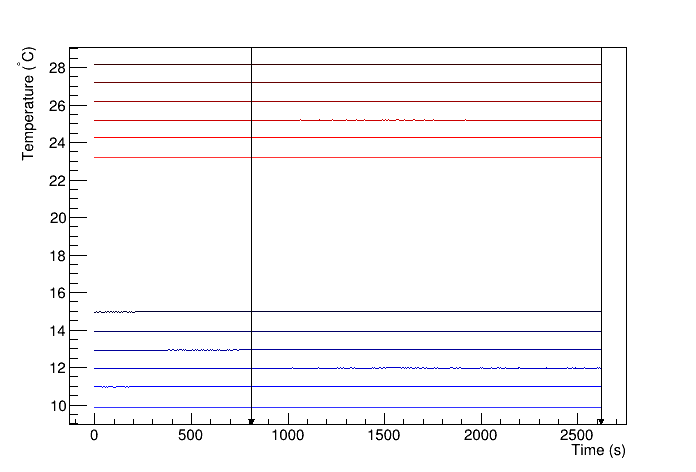

Hot Fluxmeter Temperatures (C), 28.1606, 27.2021, 26.197, 25.1985, 24.2827, 23.2061
Cold Fluxmeter Temperatures (C), 14.9807, 13.9356, 12.946, 11.9726, 10.9797, 9.88021
Hot Fluxmeter Temperature Uncertainties (C), 0.00135332, 0.00135012, 0.00144511, 0.00148952, 0.00120728, 0.00145315
Cold Fluxmeter Temperature Uncertainties (C), 0.000926682, 0.00101474, 0.000871101, 0.00112311, 0.000925873, 0.00100693
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.958785, -1.96477, -2.96269, -3.87898, -4.95516
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -1.04548, -2.03475, -3.0083, -4.00109, -5.10031
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00231517, 0.00209515, 0.0019789, 0.00205672, 0.00176857
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00175168, 0.00100121, 0.00170394, 0.00132921, 0.00127705

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasen
Analysis date, 9/1/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 43797 +/- 1662.42
Cold fluxmeter flux (W/m^2), 44823.5 +/- 1701.41
Heat flux through sample (W/m^2), 44310.3 +/- 1295.39
Heat flow through sample (W), 14.3161 +/- 0.418526
Temperature at hot end of sample (C), 22.2539 +/- 0.251693
Temperature at cold end of sample (C), 15.9846 +/- 0.12225
deltaT (C), 6.26927 +/- 0.279811
R (K/W), 0.437917, 0.0233648
RA (Km^2/W), 8.9773e-05, 4.91413e-06

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
