In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 5/29/2023
Apparatus, InPlane
Material, INPL22
Sample, 6
Length (mm), 35.2, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.11, 0.05
Heater Voltage, 14.48
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 28.1962, 27.4156, 26.8025, 26.0034, 25.1144, 24.4667
Cold Fluxmeter Temperatures (C), 11.0275, 10.2316, 9.50032, 8.78355, 8.04895, 7.22194
Hot Fluxmeter Temperature Uncertainties (C), 0.00129728, 0.00136911, 0.00139627, 0.00140529, 0.00137607, 0.00150345
Cold Fluxmeter Temperature Uncertainties (C), 0.00117209, 0.00092527, 0.00116595, 0.00119949, 0.00100463, 0.00105026
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.780482, -1.39319, -2.19222, -3.08174, -3.72924
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.795511, -1.52666, -2.24352, -2.97858, -3.80574
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00203395, 0.00199417, 0.00195223, 0.00189667, 0.00185403
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00187556, 0.00110034, 0.00162305, 0.00152814, 0.00126214

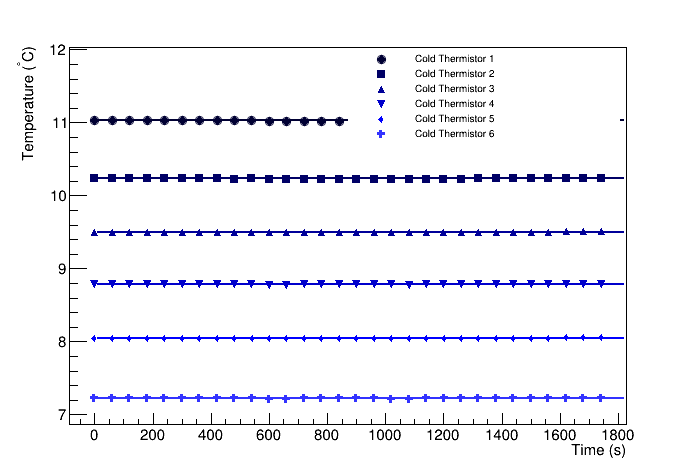

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 7/18/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 33480.1 +/- 1272.13
Cold fluxmeter flux (W/m^2), 33354 +/- 1266.17
Heat flux through sample (W/m^2), 33417.1 +/- 899.64
Heat flow through sample (W), 10.7966 +/- 0.290663
Temperature at hot end of sample (C), 23.6924 +/- 0.192625
Temperature at cold end of sample (C), 11.7661 +/- 0.0909654
deltaT (C), 11.9262 +/- 0.213024
R (K/W), 1.10462, 0.0356883
RA (Km^2/W), 0.000227, 7.83993e-06

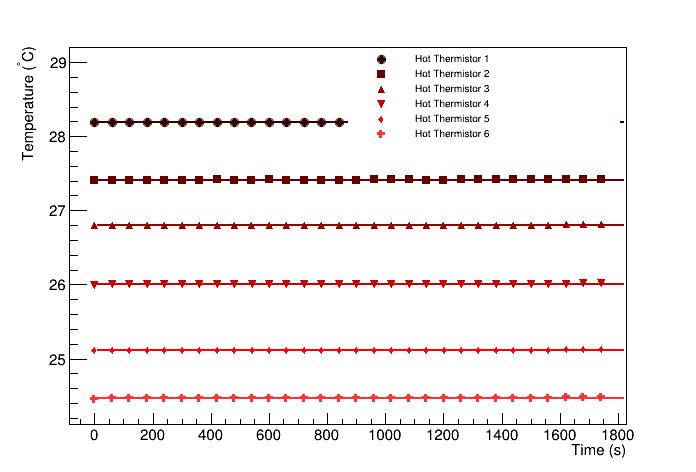

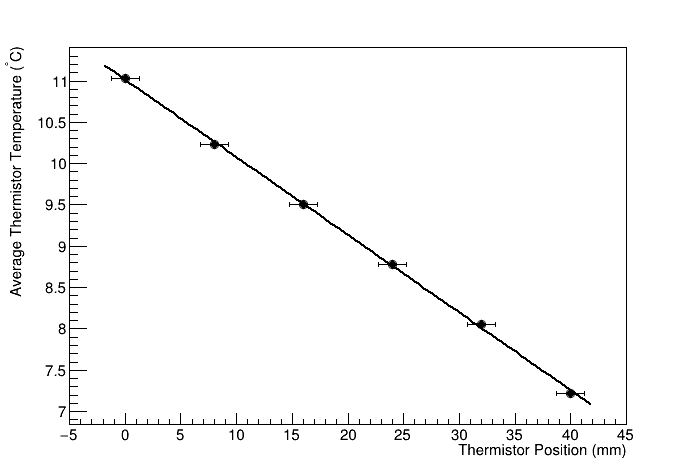

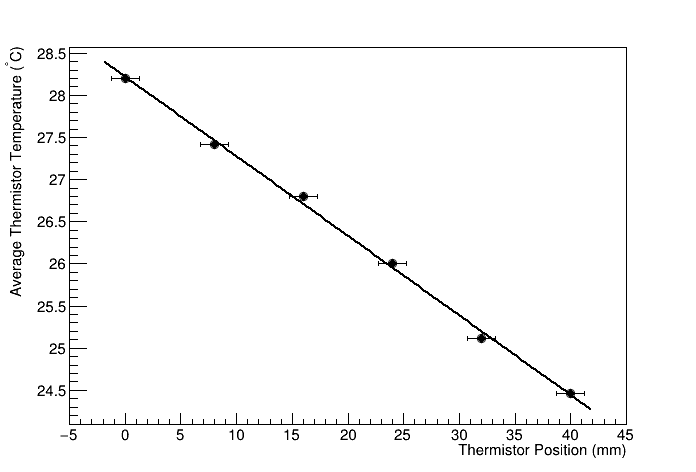

Hot flux meter fit	Cold flux meter fit

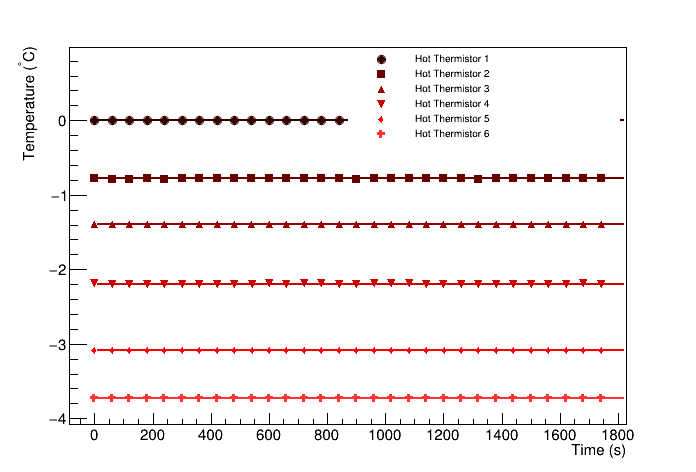

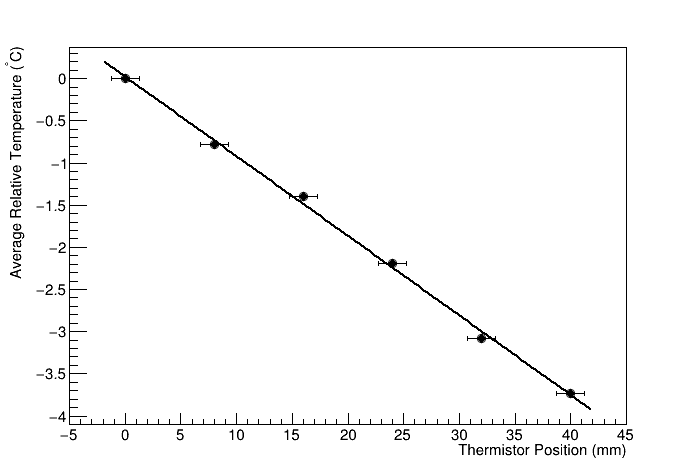

Hot flux meter difference fit	Cold flux meter difference fit
