In-plane thermal conductivity measurement
Experimentalist, Near Han
Date of measurement, 11/04/2022
Apparatus, InPlane
Material, INPL21
Sample, 3
Length (mm), 28.50, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 4.03, 0.05
Heater Voltage, 9.0
Cooler Voltage, 0.68
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 24.9561, 24.6359, 24.3731, 24.0029, 23.6758, 23.3662
Cold Fluxmeter Temperatures (C), 18.081, 17.7399, 17.4169, 17.1502, 16.9323, 16.5193
Hot Fluxmeter Temperature Uncertainties (C), 0.000781272, 0.000819077, 0.000858975, 0.000799062, 0.000903488, 0.000871396
Cold Fluxmeter Temperature Uncertainties (C), 0.000659881, 0.000654931, 0.000778833, 0.000797987, 0.000658858, 0.000824396
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.32153, -0.584217, -0.95298, -1.28249, -1.59286
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.340995, -0.663966, -0.930155, -1.14923, -1.56187
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00114699, 0.00123818, 0.00110194, 0.00122026, 0.00112695
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00108742, 0.000986919, 0.00109522, 0.00100949, 0.000898291

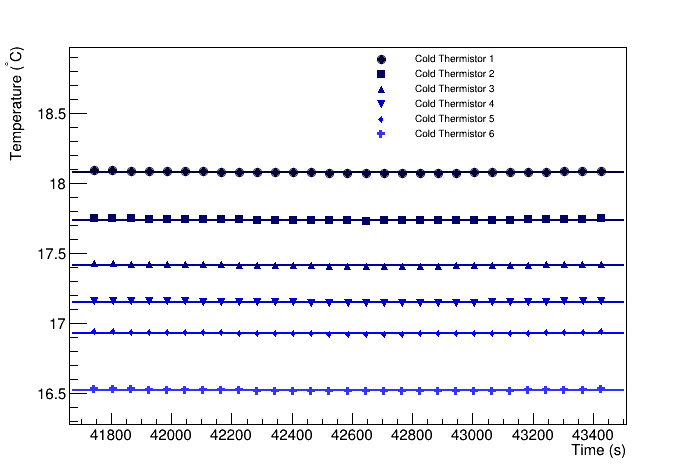

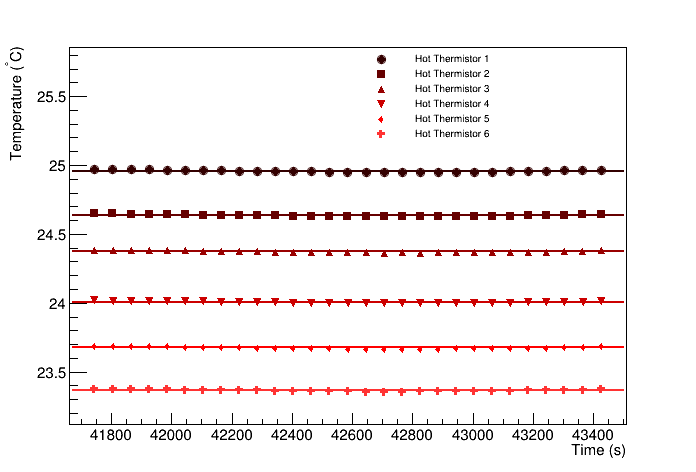

Heater Thermistors	Cooler Thermistors

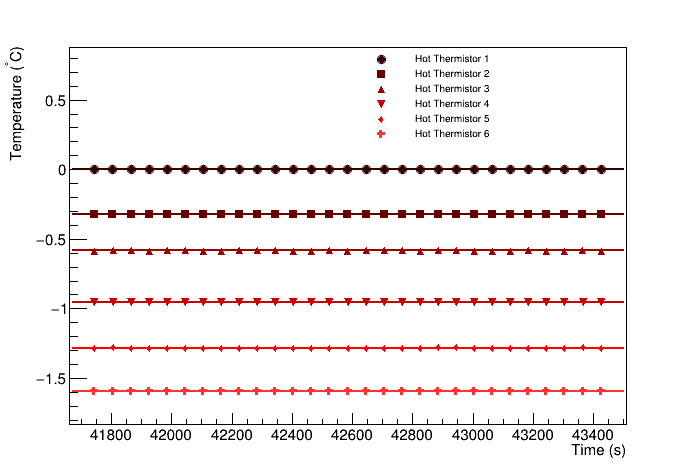

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/27/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 14239.9 +/- 540.892
Cold fluxmeter flux (W/m^2), 13393.4 +/- 509.924
Heat flux through sample (W/m^2), 13816.6 +/- 563.286
Heat flow through sample (W), 4.46398 +/- 0.181991
Temperature at hot end of sample (C), 23.0468 +/- 0.0817838
Temperature at cold end of sample (C), 18.3628 +/- 0.0366029
deltaT (C), 4.68397 +/- 0.0896012
R (K/W), 1.04928, 0.0472528
RA (Km^2/W), 0.00021143, 9.87845e-06

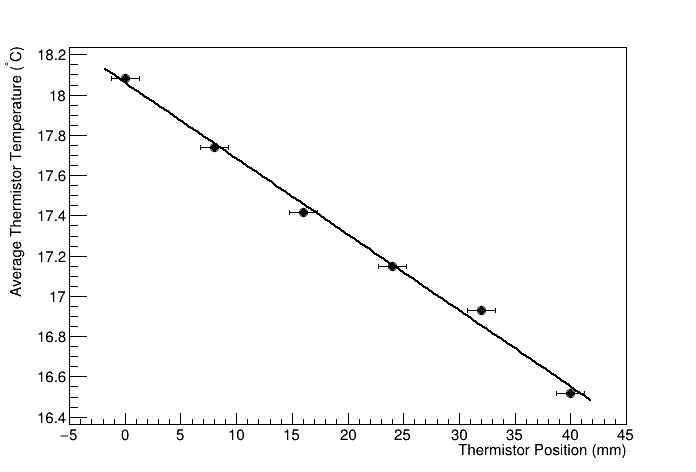

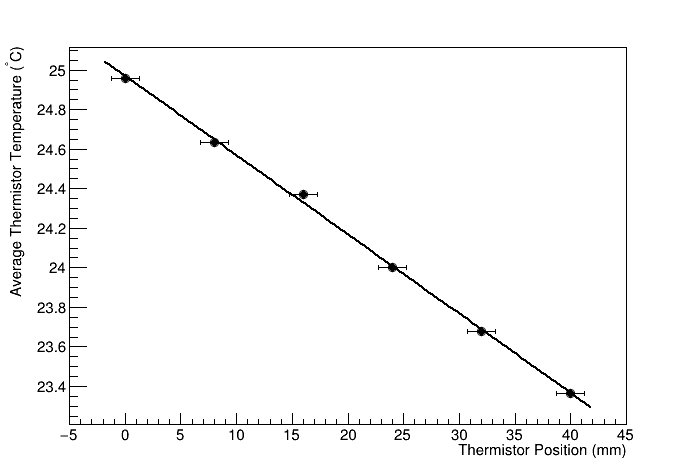

Hot flux meter fit	Cold flux meter fit

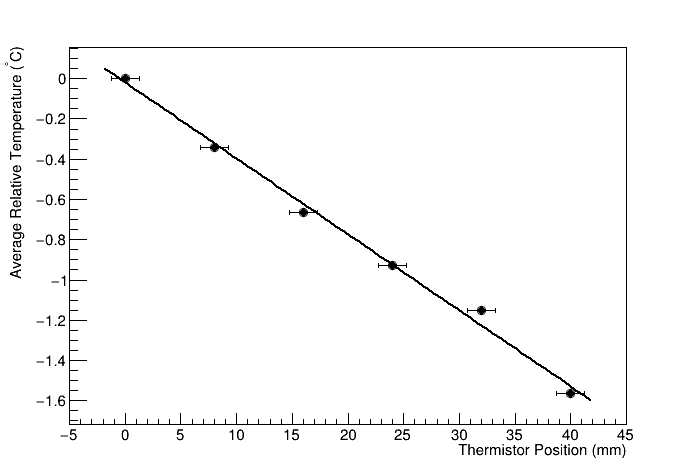

Hot flux meter difference fit	Cold flux meter difference fit
