In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 05/09/2022
Apparatus, InPlane
Material, INPL21
Sample, 6
Length (mm), 45.11, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 4.03, 0.05
Heater Voltage, 8.29
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 22.3456, 22.1051, 21.9013, 21.6581, 21.4103, 21.2299
Cold Fluxmeter Temperatures (C), 16.1504, 15.8865, 15.6896, 15.4413, 15.3402, 14.9754
Hot Fluxmeter Temperature Uncertainties (C), 0.00137293, 0.00149367, 0.00137877, 0.00136164, 0.00124816, 0.00130692
Cold Fluxmeter Temperature Uncertainties (C), 0.00142314, 0.00131004, 0.0013955, 0.0013207, 0.00124513, 0.00107184
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.245281, -0.432939, -0.696208, -0.930241, -1.13169
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.271001, -0.462699, -0.70772, -0.82532, -1.18157
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00163357, 0.00161153, 0.00138646, 0.00146269, 0.00128351
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00192461, 0.00126465, 0.00169107, 0.00157251, 0.00092922

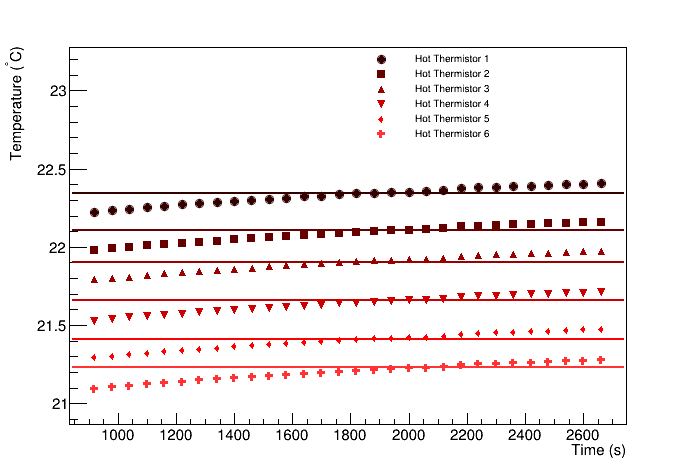

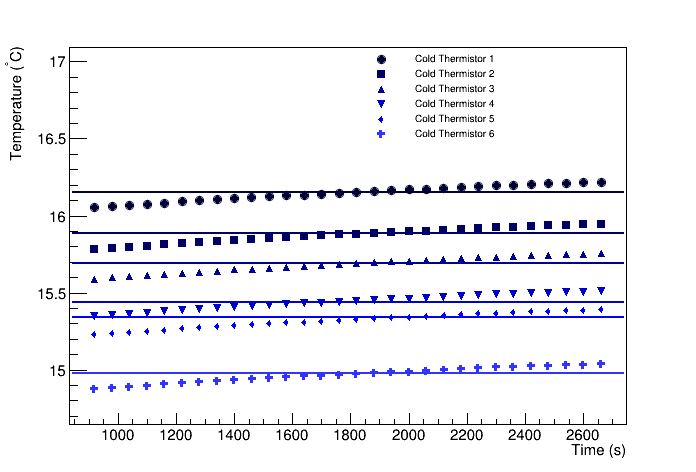

Heater Thermistors	Cooler Thermistors

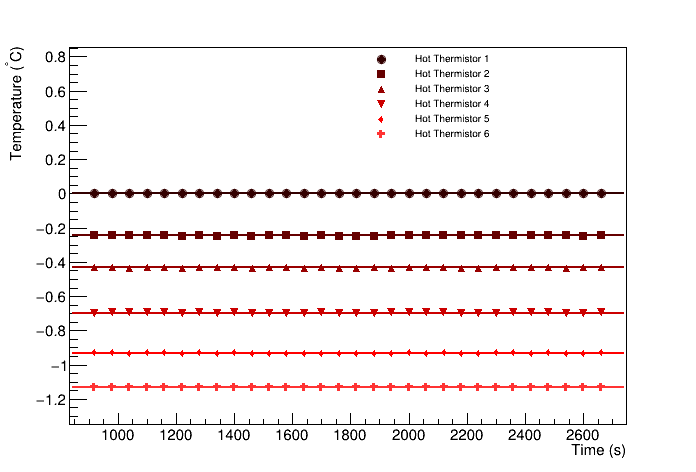

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/27/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 10128.1 +/- 384.851
Cold fluxmeter flux (W/m^2), 10036.9 +/- 383.536
Heat flux through sample (W/m^2), 10082.5 +/- 275.466
Heat flow through sample (W), 3.25754 +/- 0.0889998
Temperature at hot end of sample (C), 20.9832 +/- 0.0577743
Temperature at cold end of sample (C), 16.3684 +/- 0.0274059
deltaT (C), 4.61487 +/- 0.0639449
R (K/W), 1.41667, 0.0433984
RA (Km^2/W), 0.00028546, 9.43908e-06

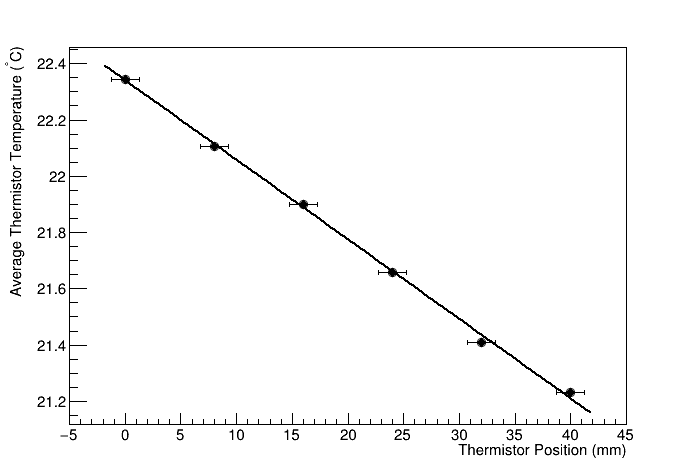

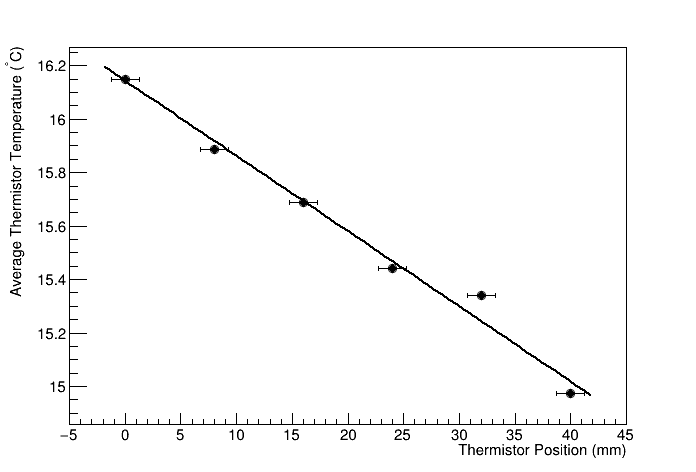

Hot flux meter fit	Cold flux meter fit

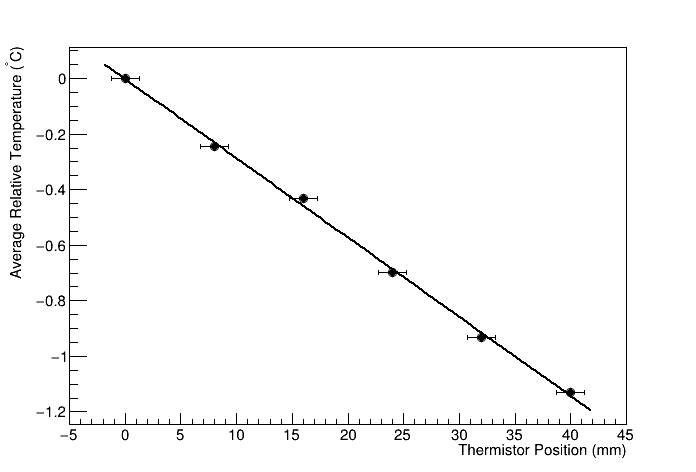

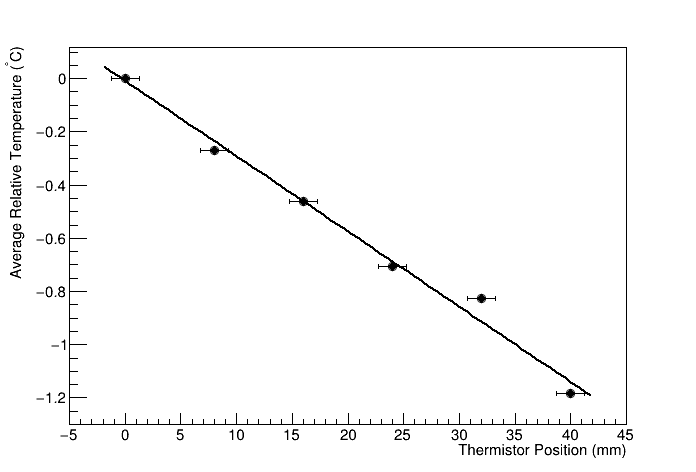

Hot flux meter difference fit	Cold flux meter difference fit
