In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 06/28/2022
Apparatus, InPlane
Material, INPL21
Sample, 2
Length (mm), 15.60, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 4.03, 0.05
Heater Voltage, 9.20
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 23.8942, 23.549, 23.3022, 22.9718, 22.6403, 22.3611
Cold Fluxmeter Temperatures (C), 19.1357, 18.7975, 18.4905, 18.2206, 17.985, 17.5993
Hot Fluxmeter Temperature Uncertainties (C), 0.00152575, 0.00169778, 0.00165168, 0.0012978, 0.00147705, 0.00125649
Cold Fluxmeter Temperature Uncertainties (C), 0.000970088, 0.00107138, 0.0010264, 0.00107392, 0.000943014, 0.000694781
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.347153, -0.595514, -0.926775, -1.2591, -1.53521
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.336671, -0.647238, -0.915487, -1.15486, -1.5418
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00131847, 0.00131852, 0.0012391, 0.00158508, 0.00153292
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00134083, 0.00100787, 0.00130032, 0.00118774, 0.000994525

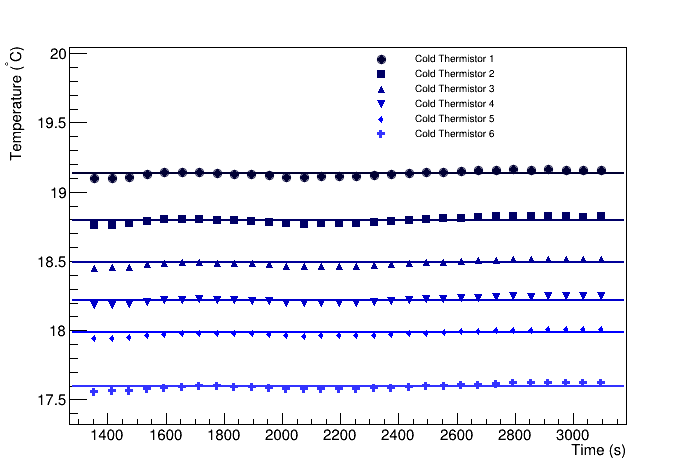

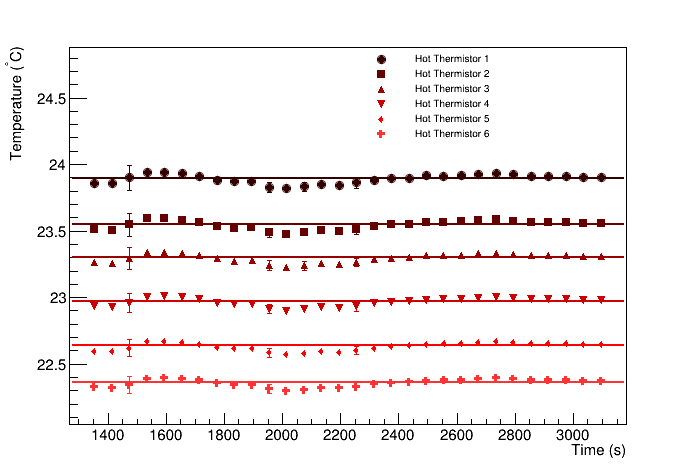

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/27/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 13640.5 +/- 518.205
Cold fluxmeter flux (W/m^2), 13277.2 +/- 504.965
Heat flux through sample (W/m^2), 13458.8 +/- 404.809
Heat flow through sample (W), 4.34838 +/- 0.130789
Temperature at hot end of sample (C), 22.0461 +/- 0.0783205
Temperature at cold end of sample (C), 19.4145 +/- 0.0361244
deltaT (C), 2.63158 +/- 0.0862501
R (K/W), 0.605186, 0.0269213
RA (Km^2/W), 0.000121945, 5.63301e-06

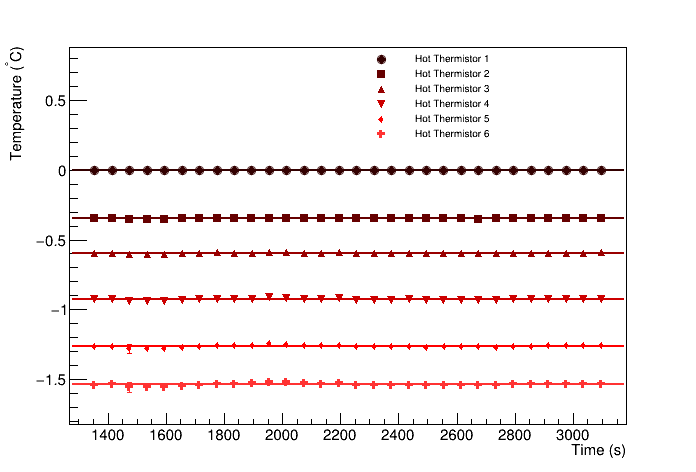

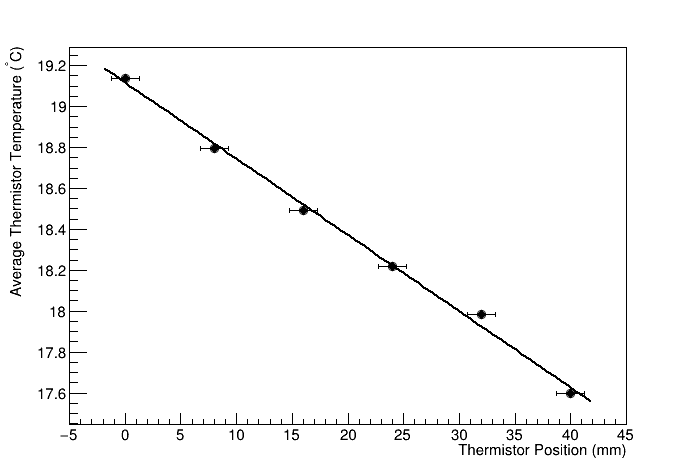

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
