In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 11/11/2021
Apparatus, InPlane
Material, INPL17
Sample, 4
Length (mm), 35.15, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 3.08, 0.05
Heater Voltage, 6.00
Cooler Voltage, 0.0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 21.9944, 21.8328, 21.7156, 21.5484, 21.4111, 21.2781
Cold Fluxmeter Temperatures (C), 18.2183, 18.0388, 17.896, 17.7796, 17.6289, 17.4901
Hot Fluxmeter Temperature Uncertainties (C), 0.00286277, 0.00287845, 0.00262381, 0.00257303, 0.00200187, 0.00248906
Cold Fluxmeter Temperature Uncertainties (C), 0.00260369, 0.00284263, 0.00235371, 0.00246276, 0.00238644, 0.00248177
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.161281, -0.277715, -0.446358, -0.585961, -0.715255
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.18023, -0.323839, -0.43878, -0.590937, -0.730519
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.0050968, 0.0035719, 0.00380324, 0.00403422, 0.00291153
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00535943, 0.00215255, 0.00403764, 0.00381002, 0.00240092

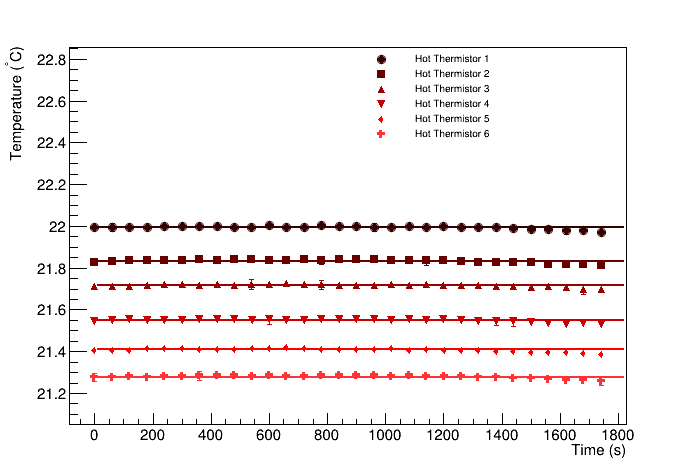

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 6375.06 +/- 244.068
Cold fluxmeter flux (W/m^2), 6363.03 +/- 243.355
Heat flux through sample (W/m^2), 6369.05 +/- 172.435
Heat flow through sample (W), 2.05776 +/- 0.0557117
Temperature at hot end of sample (C), 21.128 +/- 0.03686
Temperature at cold end of sample (C), 18.3422 +/- 0.0174276
deltaT (C), 2.78579 +/- 0.0407723
R (K/W), 1.3538, 0.0416653
RA (Km^2/W), 0.000208484, 7.25735e-06

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
