In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 11/10/2021
Apparatus, InPlane
Material, INPL17
Sample, 3
Length (mm), 25.15, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 3.08, 0.05
Heater Voltage, 7.00
Cooler Voltage, 0.0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 23.6179, 23.4258, 23.2741, 23.0639, 22.8847, 22.7102
Cold Fluxmeter Temperatures (C), 19.5724, 19.3639, 19.1806, 19.0422, 18.8533, 18.6784
Hot Fluxmeter Temperature Uncertainties (C), 0.00265662, 0.00283334, 0.00286998, 0.00301466, 0.00271435, 0.00284492
Cold Fluxmeter Temperature Uncertainties (C), 0.00272691, 0.00266805, 0.00253102, 0.00282137, 0.00286997, 0.00270077
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.192355, -0.344872, -0.555405, -0.73438, -0.908811
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.20846, -0.390607, -0.529176, -0.71832, -0.893179
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00487194, 0.00368125, 0.00374379, 0.00420693, 0.00265717
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00508681, 0.00240709, 0.00386051, 0.00457652, 0.00236553

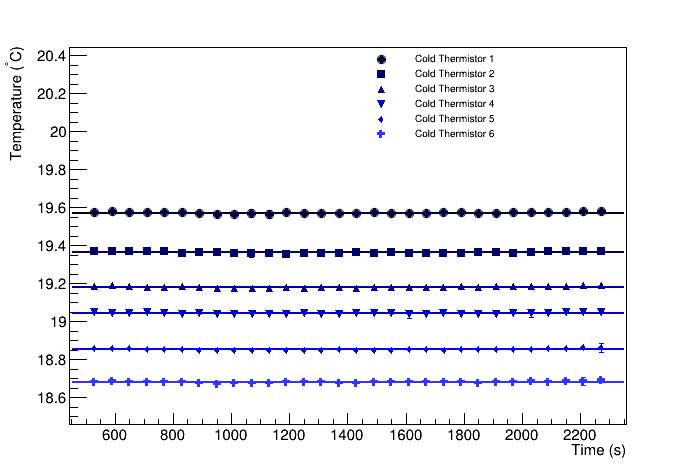

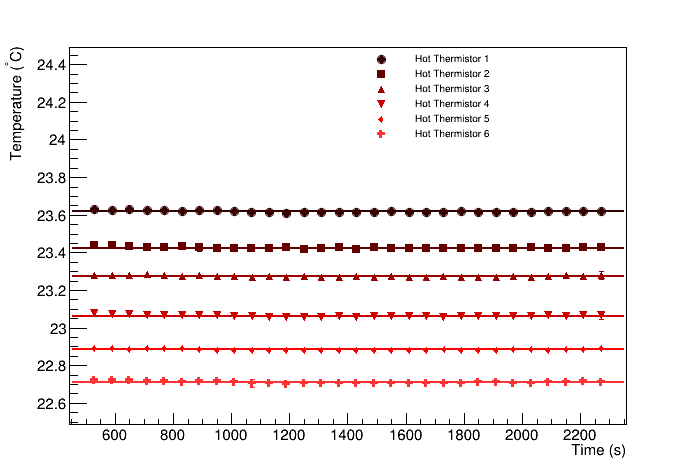

Heater Thermistors	Cooler Thermistors

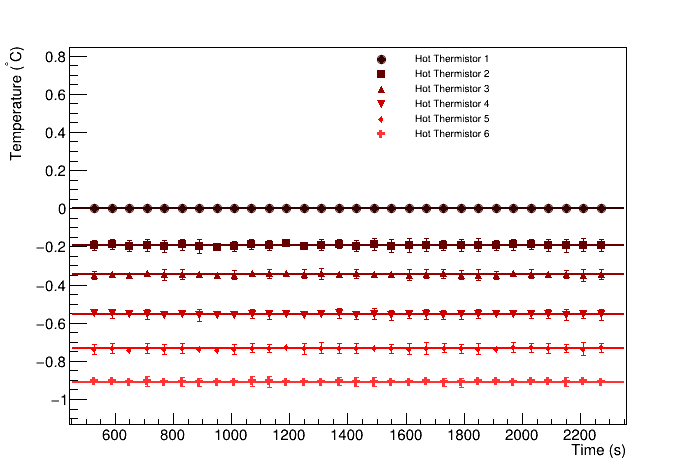

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 8098.08 +/- 308.97
Cold fluxmeter flux (W/m^2), 7797.54 +/- 297.638
Heat flux through sample (W/m^2), 7947.81 +/- 261.905
Heat flow through sample (W), 2.56784 +/- 0.0846182
Temperature at hot end of sample (C), 22.5249 +/- 0.0467093
Temperature at cold end of sample (C), 19.7306 +/- 0.0213974
deltaT (C), 2.79432 +/- 0.0513771
R (K/W), 1.0882, 0.0410636
RA (Km^2/W), 0.000167583, 6.88619e-06

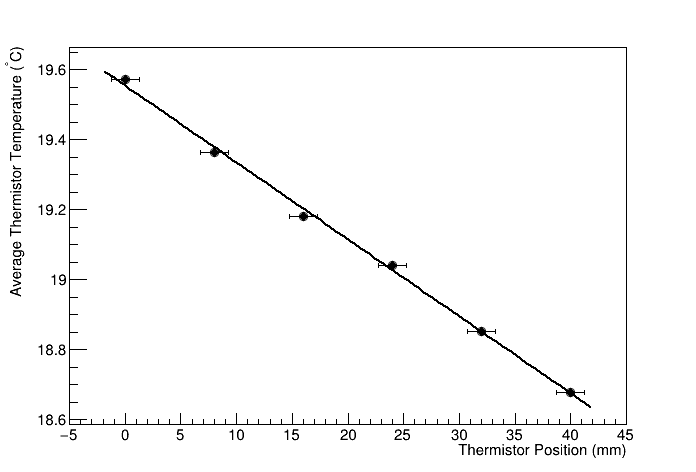

Hot flux meter fit	Cold flux meter fit

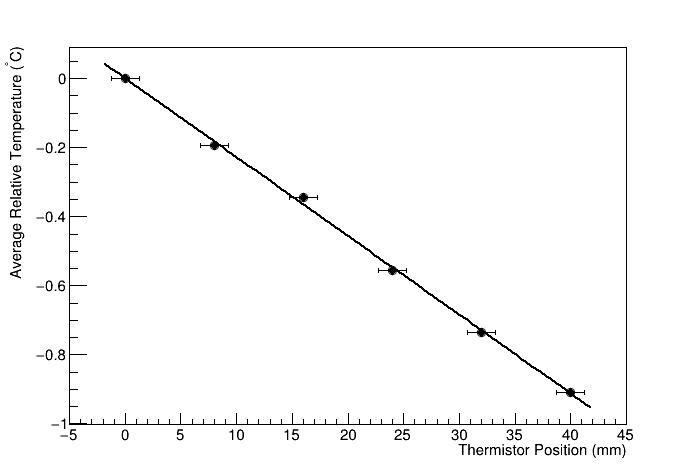

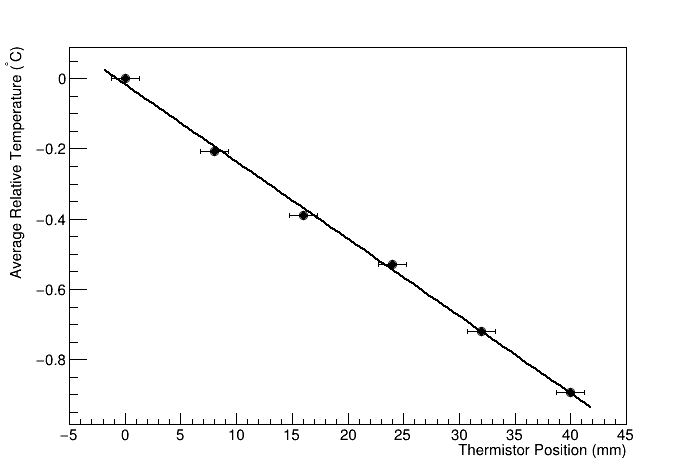

Hot flux meter difference fit	Cold flux meter difference fit
