In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 11/09/2021
Apparatus, InPlane
Material, INPL17
Sample, 2
Length (mm), 14.53, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 3.08, 0.05
Heater Voltage, 7.00
Cooler Voltage, 0.0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 23.3615, 23.1713, 22.9985, 22.8007, 22.6146, 22.4374
Cold Fluxmeter Temperatures (C), 19.7448, 19.516, 19.3347, 19.1772, 18.9936, 18.8102
Hot Fluxmeter Temperature Uncertainties (C), 0.00316304, 0.00288104, 0.00298279, 0.00301297, 0.00268967, 0.00289689
Cold Fluxmeter Temperature Uncertainties (C), 0.00295247, 0.00298438, 0.00303738, 0.0027735, 0.00279364, 0.00298163
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.196443, -0.354792, -0.562913, -0.741432, -0.922163
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.219699, -0.402091, -0.549281, -0.741683, -0.921071
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00526428, 0.00420305, 0.00386604, 0.00421534, 0.00349221
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00573255, 0.00241187, 0.00465065, 0.00423425, 0.00298997

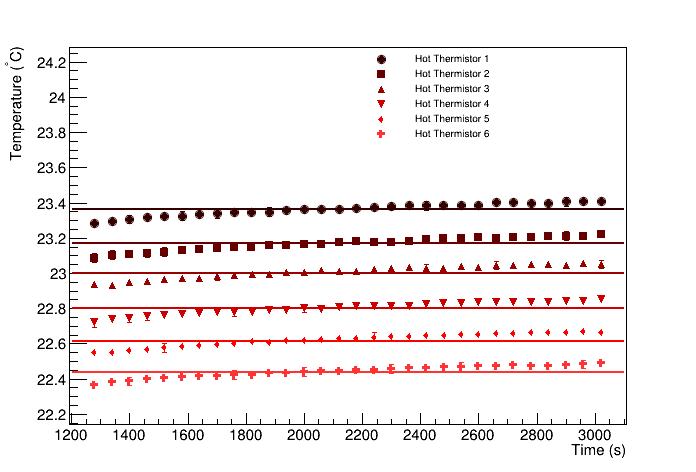

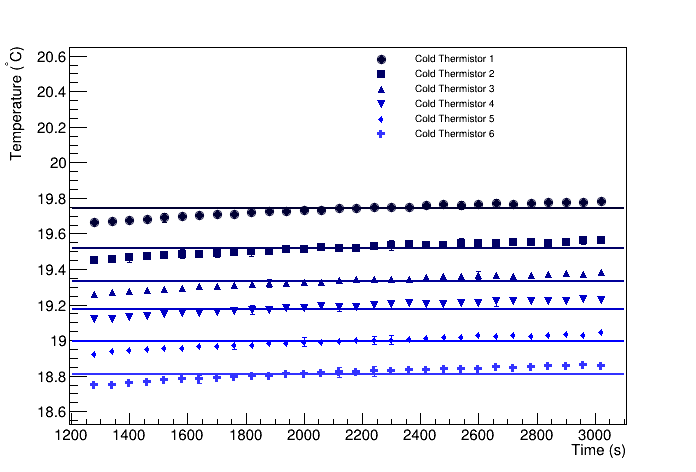

Heater Thermistors	Cooler Thermistors

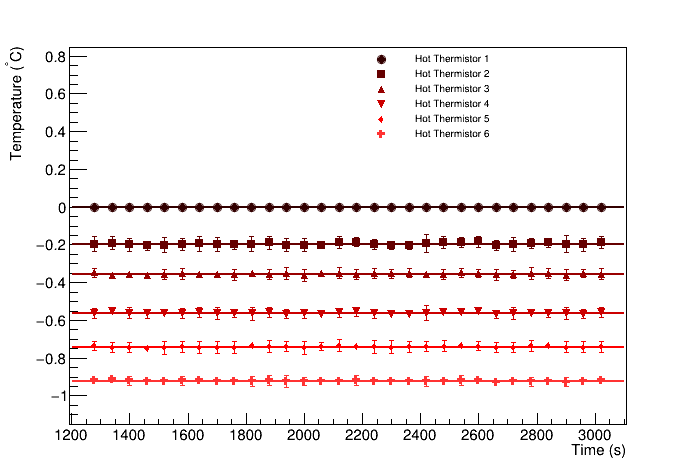

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 8188.96 +/- 312.756
Cold fluxmeter flux (W/m^2), 8033.24 +/- 306.81
Heat flux through sample (W/m^2), 8111.1 +/- 232.485
Heat flow through sample (W), 2.6206 +/- 0.0751131
Temperature at hot end of sample (C), 22.2483 +/- 0.0475322
Temperature at cold end of sample (C), 19.9042 +/- 0.0223135
deltaT (C), 2.34417 +/- 0.0525091
R (K/W), 0.894518, 0.03254
RA (Km^2/W), 0.000137756, 5.48924e-06

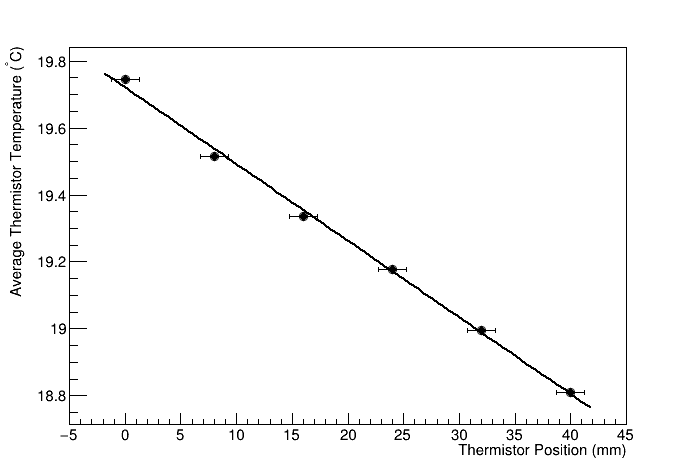

Hot flux meter fit	Cold flux meter fit

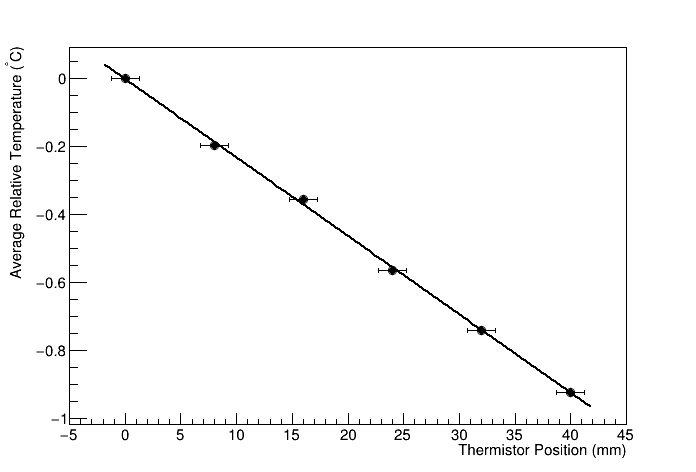

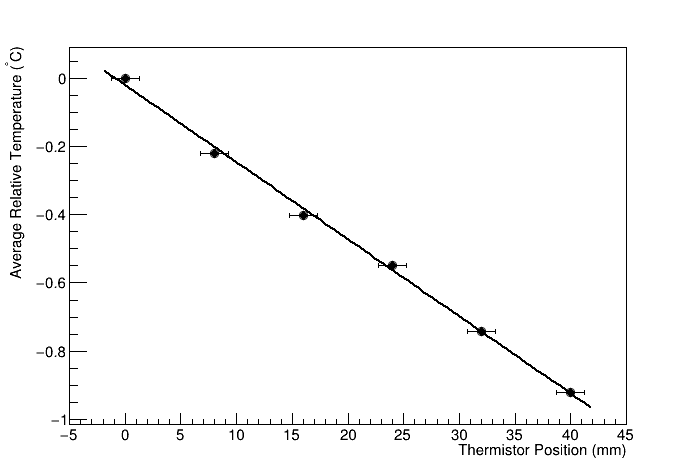

Hot flux meter difference fit	Cold flux meter difference fit
