In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 11/08/2021
Apparatus, InPlane
Material, INPL17
Sample, 1
Length (mm), 10.19, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 3.08, 0.05
Heater Voltage, 7.00
Cooler Voltage, 0.0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 24.1591, 23.954, 23.777, 23.59, 23.402, 23.1846
Cold Fluxmeter Temperatures (C), 21.0916, 20.8454, 20.6325, 20.4847, 20.2823, 20.1109
Hot Fluxmeter Temperature Uncertainties (C), 0.00406334, 0.00428753, 0.00365941, 0.00371281, 0.0036782, 0.00352248
Cold Fluxmeter Temperature Uncertainties (C), 0.00386862, 0.00358773, 0.0036582, 0.00361962, 0.00357509, 0.00383285
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.200829, -0.367523, -0.573115, -0.764043, -0.95767
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.223863, -0.42138, -0.570044, -0.772659, -0.956367
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00510681, 0.0036877, 0.00359435, 0.00403113, 0.00311982
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00518909, 0.00233002, 0.0040423, 0.00395751, 0.0022267

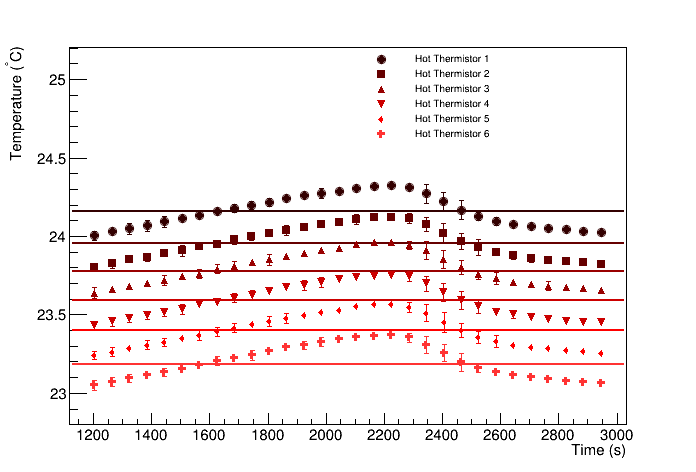

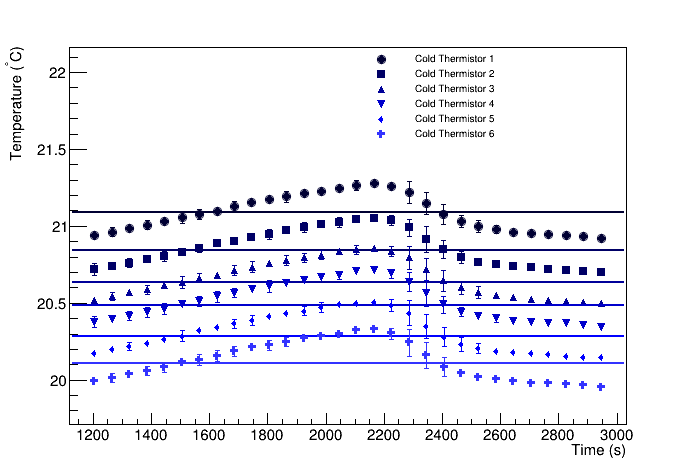

Heater Thermistors	Cooler Thermistors

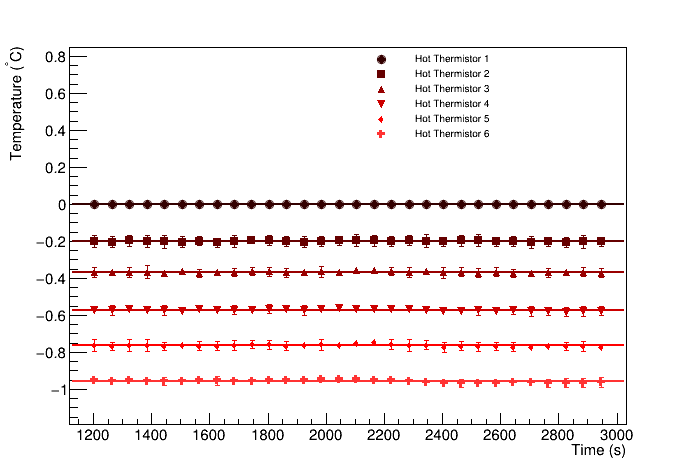

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 8478.43 +/- 323.413
Cold fluxmeter flux (W/m^2), 8360.91 +/- 318.846
Heat flux through sample (W/m^2), 8419.67 +/- 234.557
Heat flow through sample (W), 2.72029 +/- 0.0757827
Temperature at hot end of sample (C), 23.0057 +/- 0.0493845
Temperature at cold end of sample (C), 21.2521 +/- 0.0236469
deltaT (C), 1.75356 +/- 0.0547541
R (K/W), 0.64462, 0.0269745
RA (Km^2/W), 9.92715e-05, 4.45683e-06

Hot flux meter fit	Cold flux meter fit

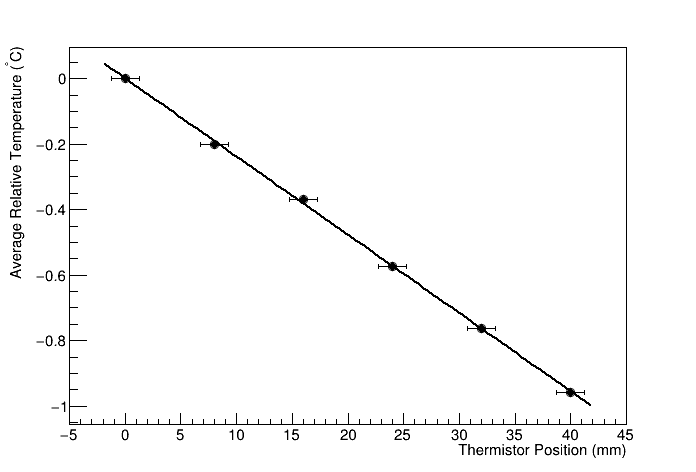

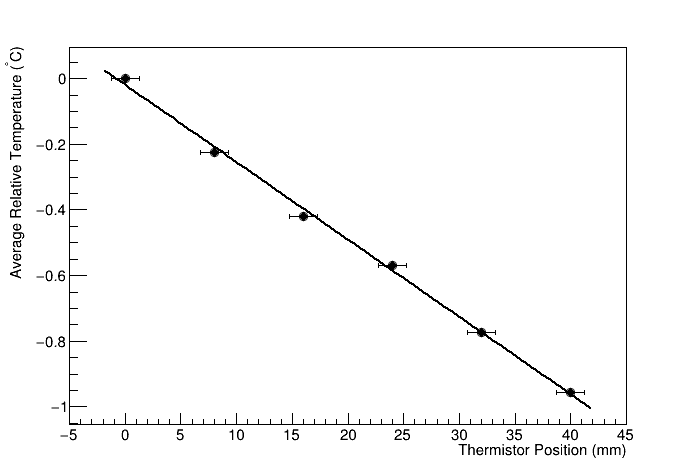

Hot flux meter difference fit	Cold flux meter difference fit
