In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 11/04/2021
Apparatus, InPlane
Material, INPL16
Sample, 5
Length (mm), 45.08, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 2.38, 0.05
Heater Voltage, 7.60
Cooler Voltage, 0.0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130

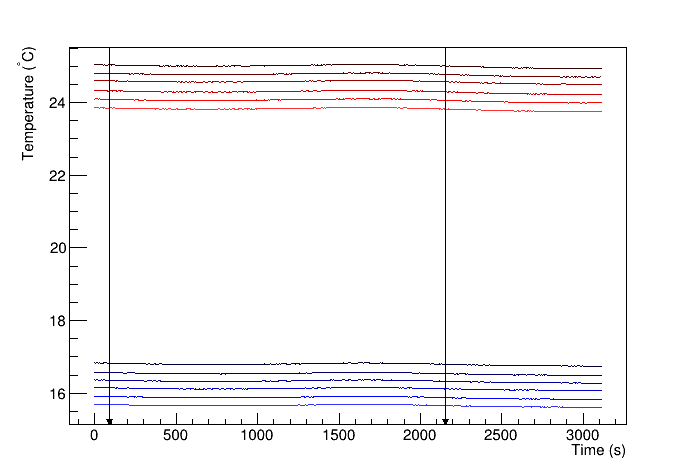

Hot Fluxmeter Temperatures (C), 25.0216, 24.7886, 24.5854, 24.3096, 24.0784, 23.8365
Cold Fluxmeter Temperatures (C), 16.8111, 16.551, 16.343, 16.1329, 15.8907, 15.6715
Hot Fluxmeter Temperature Uncertainties (C), 0.002185, 0.00237235, 0.00215887, 0.00225547, 0.00184767, 0.00206492
Cold Fluxmeter Temperature Uncertainties (C), 0.00205294, 0.00172337, 0.00206733, 0.00220897, 0.00196831, 0.00180308
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.232885, -0.435186, -0.712974, -0.943945, -1.18483
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.259455, -0.466591, -0.675858, -0.917842, -1.13806
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00396787, 0.00263899, 0.0030913, 0.00277936, 0.00254282
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00358459, 0.00170226, 0.00335483, 0.00301362, 0.00190485

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 10580 +/- 402.561
Cold fluxmeter flux (W/m^2), 9994.04 +/- 380.045
Heat flux through sample (W/m^2), 10287 +/- 403.069
Heat flow through sample (W), 3.32362 +/- 0.130227
Temperature at hot end of sample (C), 23.6025 +/- 0.060909
Temperature at cold end of sample (C), 17.023 +/- 0.0273503
deltaT (C), 6.57957 +/- 0.0667678
R (K/W), 1.97964, 0.080126
RA (Km^2/W), 0.000235578, 1.07455e-05

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
