In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 07/02/2021
Apparatus, InPlane
Material, INPL13
Sample, 5
Length (mm), 55.16, 0.05
Width (mm), 50.11, 0.05
Thickness (mm), 3.67, 0.05
Heater Voltage, 9.4
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130

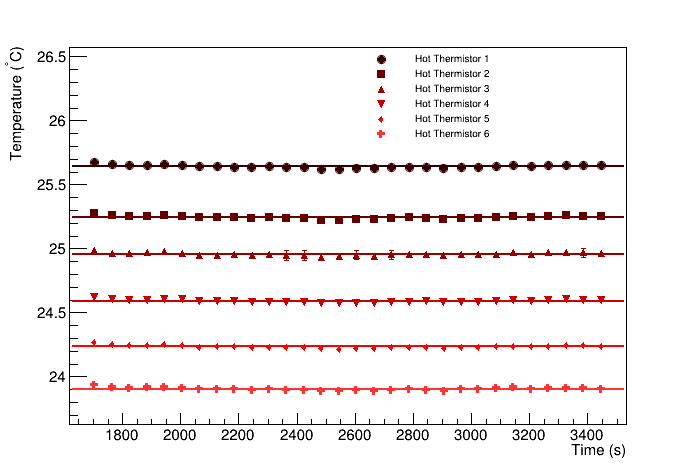

Hot Fluxmeter Temperatures (C), 25.6422, 25.2452, 24.9574, 24.5884, 24.2342, 23.9031

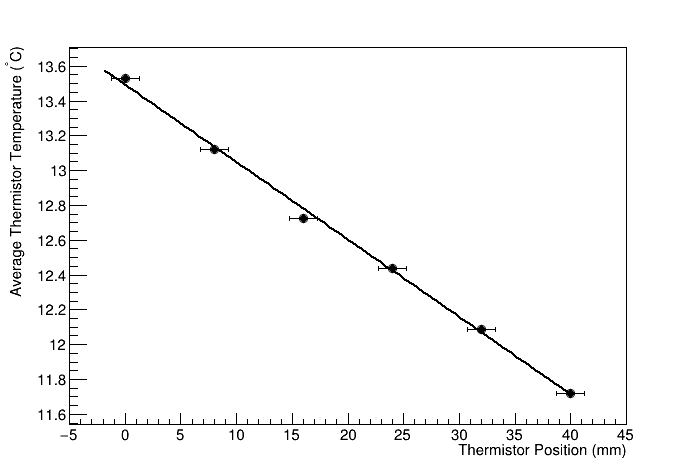

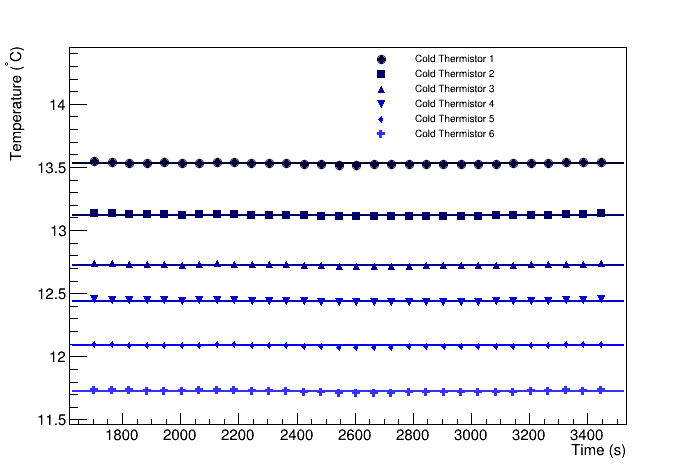

Cold Fluxmeter Temperatures (C), 13.5272, 13.1204, 12.7252, 12.4374, 12.0863, 11.7216
Hot Fluxmeter Temperature Uncertainties (C), 0.00216758, 0.00227035, 0.00341368, 0.00165771, 0.00178263, 0.00264909
Cold Fluxmeter Temperature Uncertainties (C), 0.0016852, 0.00152591, 0.00117193, 0.00125972, 0.00119631, 0.00109458

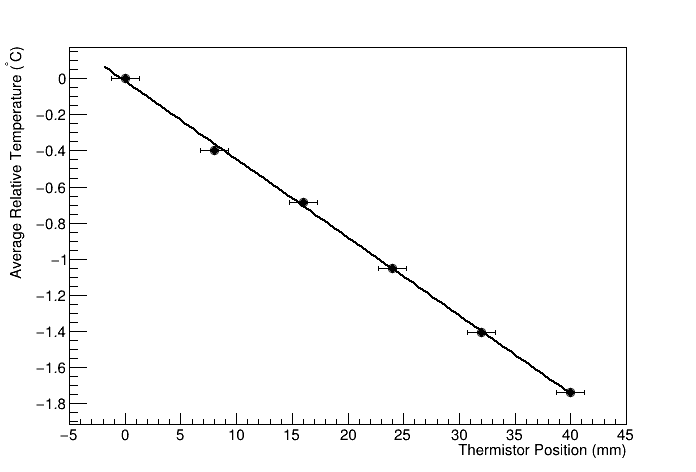

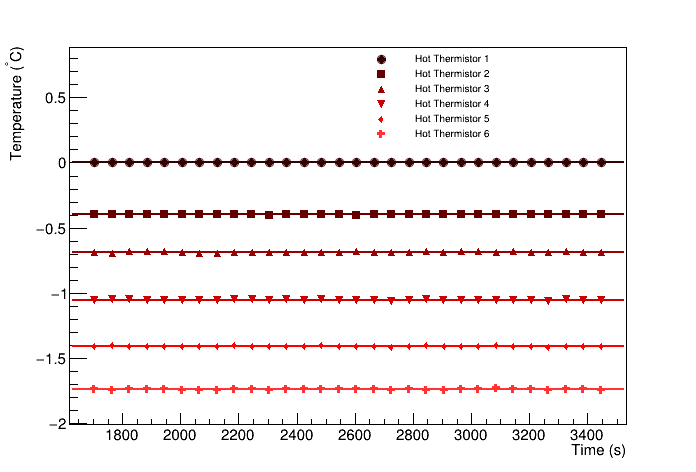

Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.397279, -0.684621, -1.05274, -1.40686, -1.73957

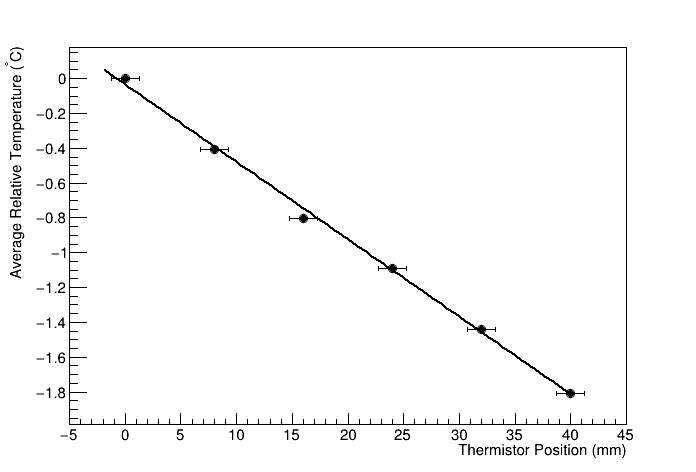

Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.407496, -0.801515, -1.08939, -1.44089, -1.80564
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00149814, 0.00218053, 0.00199098, 0.00237391, 0.00249954
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.0016604, 0.00123669, 0.00167494, 0.00165186, 0.00178969

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/26/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 15350 +/- 583.173
Cold fluxmeter flux (W/m^2), 15778.2 +/- 599.668
Heat flux through sample (W/m^2), 15564.1 +/- 469.851
Heat flow through sample (W), 5.02859 +/- 0.151803
Temperature at hot end of sample (C), 23.5508 +/- 0.0883553
Temperature at cold end of sample (C), 13.8477 +/- 0.0430846
deltaT (C), 9.70309 +/- 0.0983003
R (K/W), 1.92959, 0.0614431
RA (Km^2/W), 0.000354858, 1.22955e-05

Hot flux meter fit	Cold flux meter fit
Hot flux meter difference fit	Cold flux meter difference fit
