In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 07/01/2021
Apparatus, InPlane
Material, INPL13
Sample, 4
Length (mm), 45.17, 0.05
Width (mm), 50.11, 0.05
Thickness (mm), 3.67, 0.05
Heater Voltage, 9.4
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130

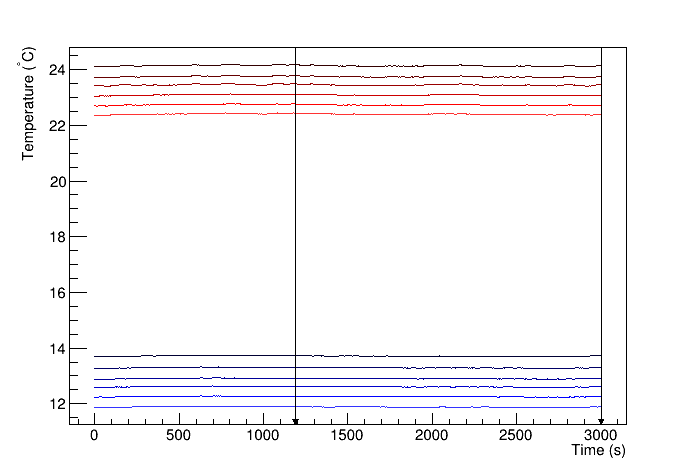

Hot Fluxmeter Temperatures (C), 24.131, 23.739, 23.4413, 23.0814, 22.729, 22.3967
Cold Fluxmeter Temperatures (C), 13.7105, 13.2901, 12.8993, 12.6073, 12.251, 11.885
Hot Fluxmeter Temperature Uncertainties (C), 0.00176815, 0.00205195, 0.00353821, 0.00170741, 0.00216784, 0.00254429
Cold Fluxmeter Temperature Uncertainties (C), 0.00199863, 0.00160244, 0.00136978, 0.00143242, 0.00123541, 0.001243
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.392688, -0.691067, -1.04991, -1.40464, -1.73951
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.420304, -0.810209, -1.1031, -1.45851, -1.82708
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00139554, 0.00270392, 0.00163624, 0.00199214, 0.00234195
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00151891, 0.00116792, 0.0015959, 0.00153948, 0.00185829

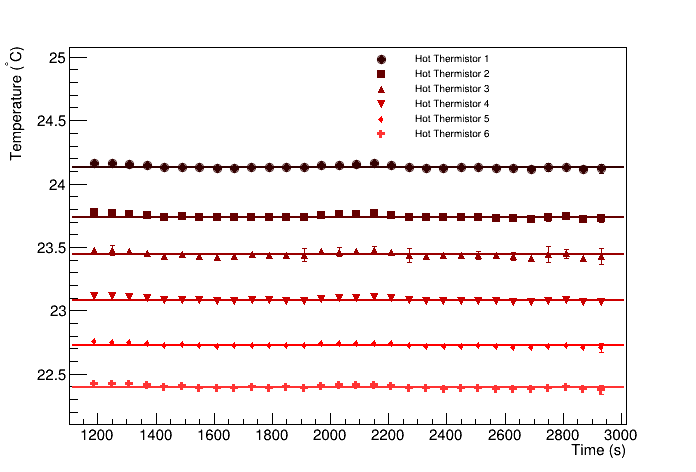

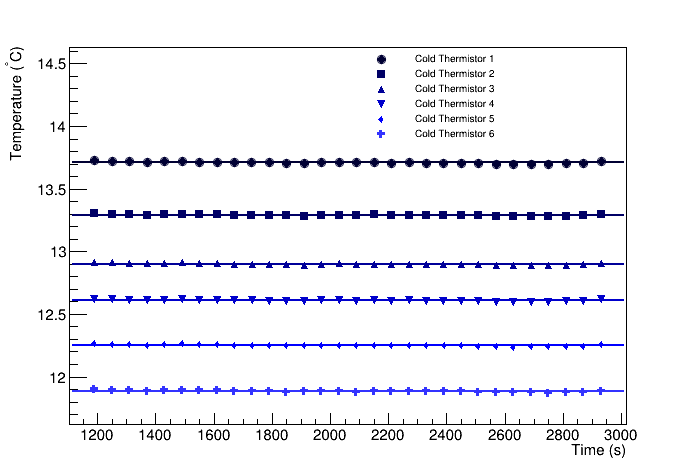

Heater Thermistors	Cooler Thermistors

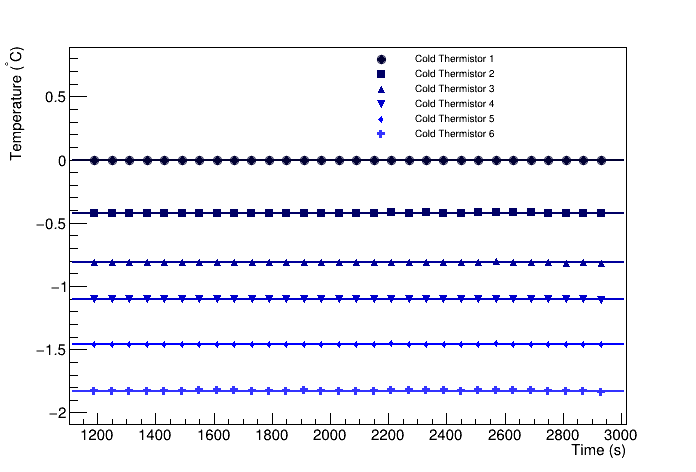

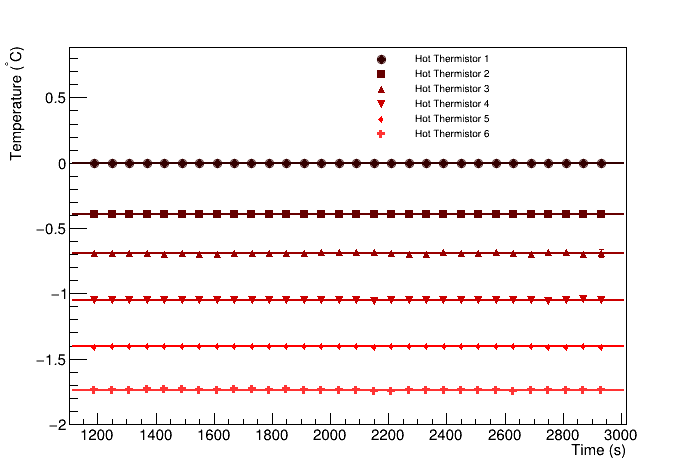

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/26/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 15342.7 +/- 582.761
Cold fluxmeter flux (W/m^2), 15940.5 +/- 605.856
Heat flux through sample (W/m^2), 15641.6 +/- 515.773
Heat flow through sample (W), 5.0536 +/- 0.16664
Temperature at hot end of sample (C), 22.046 +/- 0.0880489
Temperature at cold end of sample (C), 14.0306 +/- 0.0435098
deltaT (C), 8.01544 +/- 0.0982126
R (K/W), 1.58608, 0.0557944
RA (Km^2/W), 0.000291687, 1.10073e-05

Hot flux meter fit	Cold flux meter fit

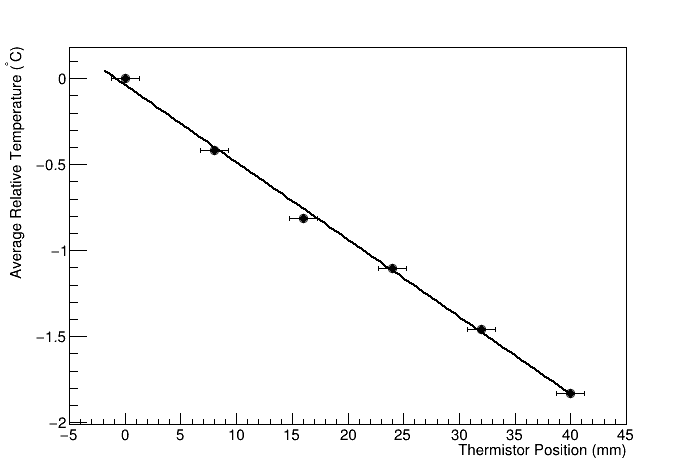

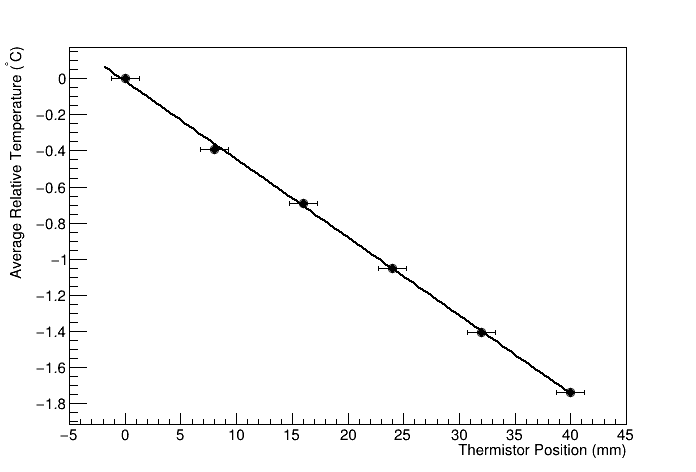

Hot flux meter difference fit	Cold flux meter difference fit
