In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 06/29/2021
Apparatus, InPlane
Material, INPL13
Sample, 2
Length (mm), 25.18, 0.05
Width (mm), 50.11, 0.05
Thickness (mm), 3.67, 0.05
Heater Voltage, 9.1
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130

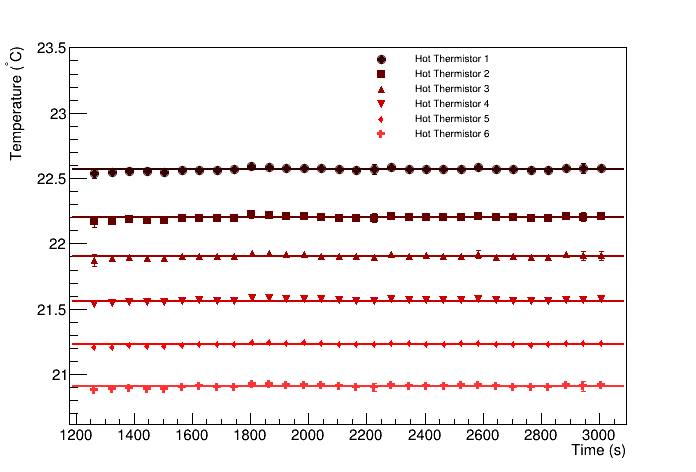

Hot Fluxmeter Temperatures (C), 22.5677, 22.1982, 21.9058, 21.5628, 21.2314, 20.9055

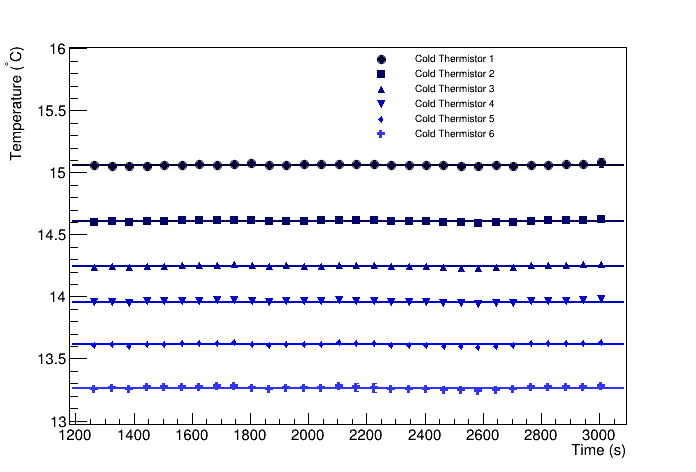

Cold Fluxmeter Temperatures (C), 15.0594, 14.6084, 14.2454, 13.9575, 13.6136, 13.261
Hot Fluxmeter Temperature Uncertainties (C), 0.00211052, 0.00223172, 0.00295694, 0.00163823, 0.00174456, 0.00281463
Cold Fluxmeter Temperature Uncertainties (C), 0.00238779, 0.00149785, 0.00171054, 0.00170619, 0.00237251, 0.00325451

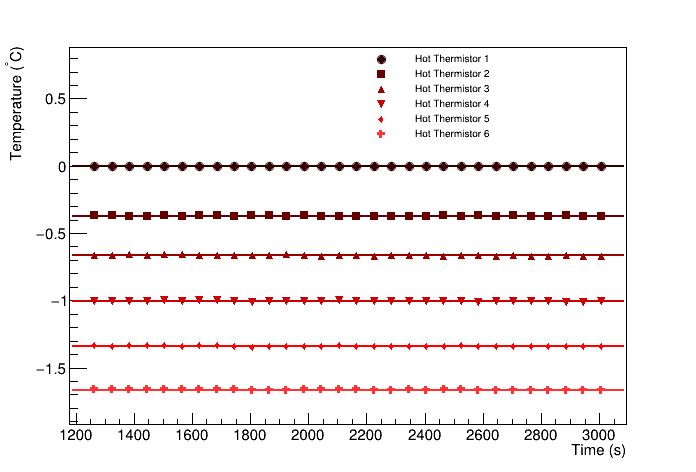

Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.370364, -0.663222, -1.00398, -1.33706, -1.66333
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.451802, -0.814072, -1.10247, -1.44505, -1.79881
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00110243, 0.00216002, 0.00128478, 0.00162062, 0.00185388
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.0017547, 0.00284259, 0.00254041, 0.00380498, 0.00482478

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/26/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 14661.1 +/- 556.733
Cold fluxmeter flux (W/m^2), 15610.7 +/- 594.59
Heat flux through sample (W/m^2), 15135.9 +/- 625.562
Heat flow through sample (W), 4.89022 +/- 0.202112
Temperature at hot end of sample (C), 20.5725 +/- 0.0843318
Temperature at cold end of sample (C), 15.3555 +/- 0.0426709
deltaT (C), 5.21699 +/- 0.0945128
R (K/W), 1.06682, 0.0481413
RA (Km^2/W), 0.000196192, 9.25012e-06

Hot flux meter fit	Cold flux meter fit

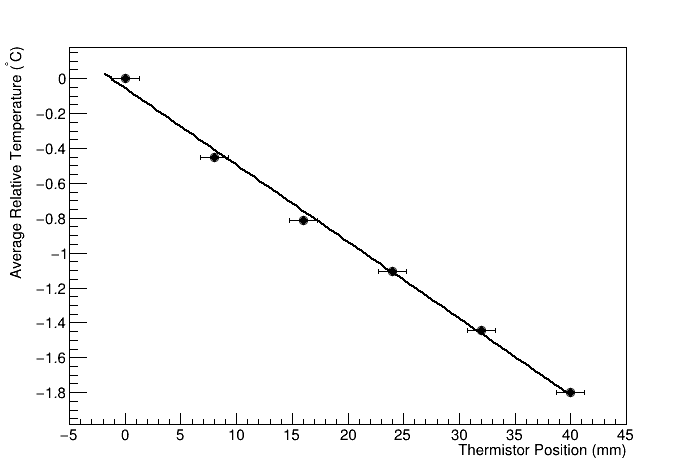

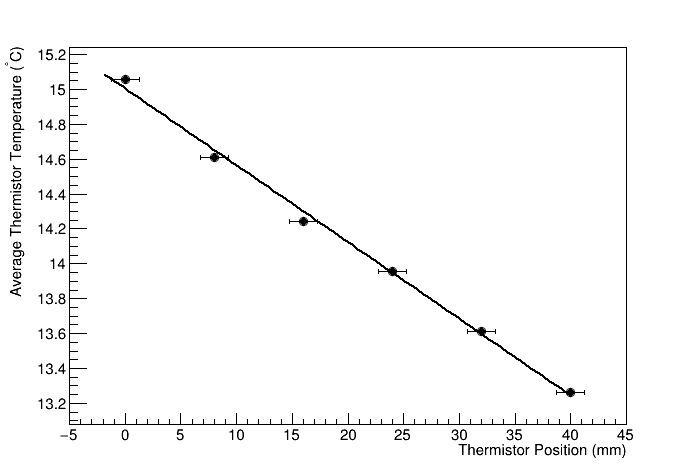

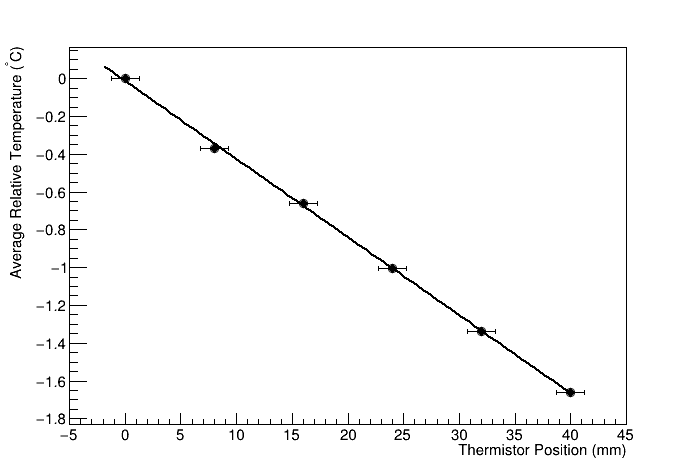

Hot flux meter difference fit	Cold flux meter difference fit
