In-plane thermal conductivity measurement
Experimentalist, Unknown
Date of measurement, 2/13/20
Apparatus, InPlane
Material, INPL12
Sample, 5
Length (mm), 17.3, 0.05
Width (mm), 50, 0.05
Thickness (mm), 3.75, 0.05
Heater Voltage (V), 5.3
Cooler Voltage (V), 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 28.841, 28.6999, 28.5931, 28.5883, 28.5029, 28.4021
Cold Fluxmeter Temperatures (C), 6.20599, 6.04336, 5.96721, 5.9537, 5.88202, 5.74357
Hot Fluxmeter Temperature Uncertainties (C), 0.00384295, 0.00459346, 0.00528099, 0.00442896, 0.00434194, 0.00635863
Cold Fluxmeter Temperature Uncertainties (C), 0.00481639, 0.00397384, 0.00335054, 0.00409711, 0.00326607, 0.00302682
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.14128, -0.250248, -0.252526, -0.337601, -0.434701
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.163969, -0.239981, -0.253935, -0.328034, -0.467921
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00590501, 0.00552091, 0.00527533, 0.00575421, 0.007008
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00654224, 0.00376222, 0.00519543, 0.0054512, 0.00437948

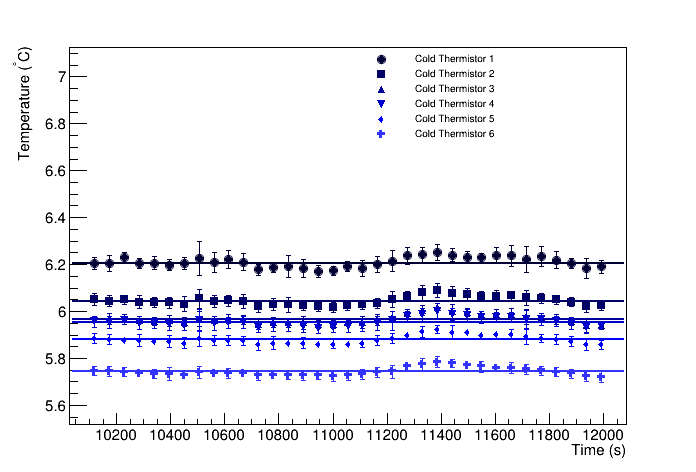

Heater Thermistors	Cooler Thermistors

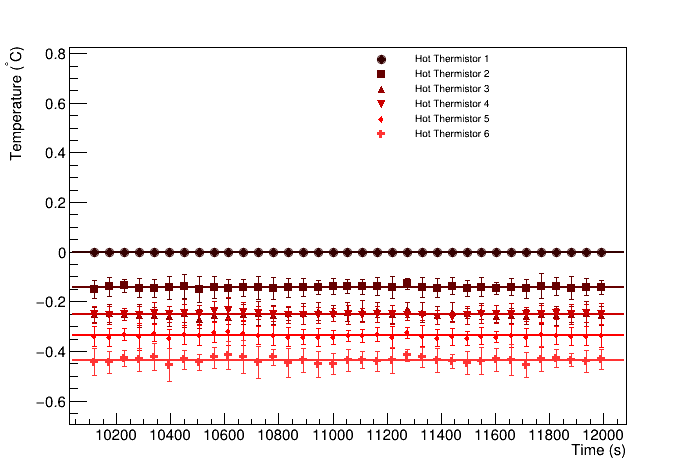

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 10/23/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 3706.25 +/- 150.777
Cold fluxmeter flux (W/m^2), 3851.68 +/- 153.468
Heat flux through sample (W/m^2), 3778.96 +/- 129.843
Heat flow through sample (W), 1.22094 +/- 0.0419509
Temperature at hot end of sample (C), 28.3132 +/- 0.023034
Temperature at cold end of sample (C), 6.26329 +/- 0.0110766
deltaT (C), 22.0499 +/- 0.0255589
R (K/W), 18.0598, 0.620879
RA (Km^2/W), 0.00338621, 0.000124909

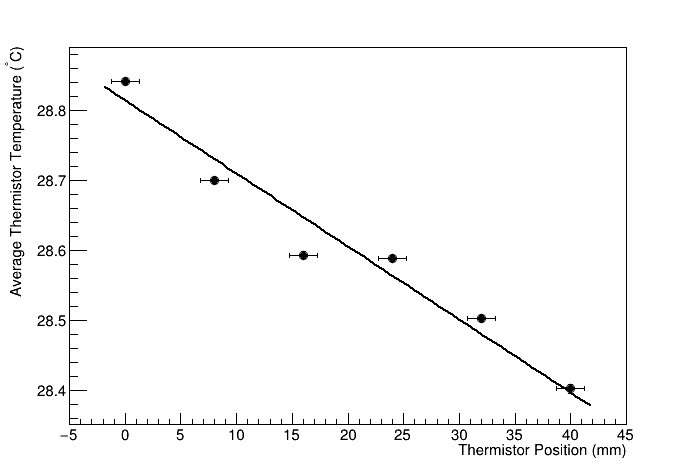

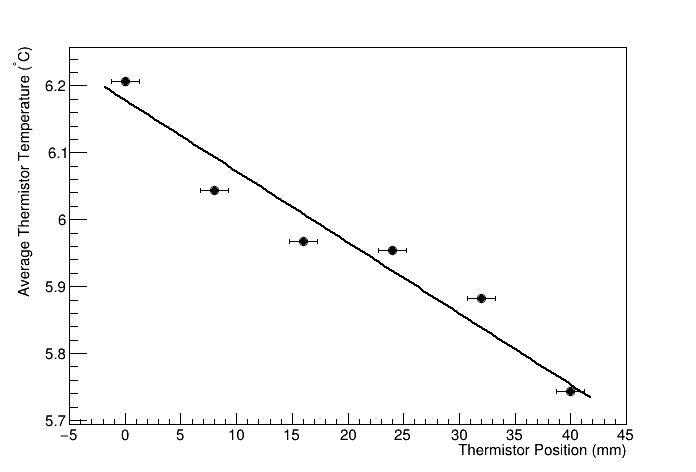

Hot flux meter fit	Cold flux meter fit

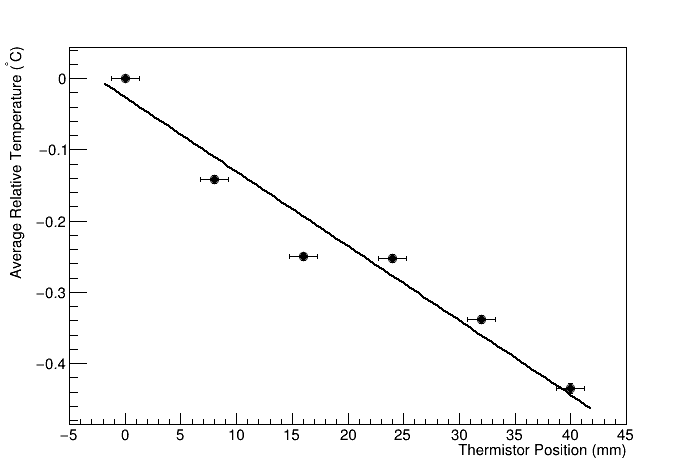

Hot flux meter difference fit	Cold flux meter difference fit
