In-plane thermal conductivity measurement
Experimentalist, Unknown
Date of measurement, 2/13/20
Apparatus, InPlane
Material, INPL12
Sample, 4
Length (mm), 14.4, 0.05
Width (mm), 50, 0.05
Thickness (mm), 3.75, 0.05
Heater Voltage (V), 5.7
Cooler Voltage (V), 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 30.0407, 29.8842, 29.758, 29.7469, 29.646, 29.53
Cold Fluxmeter Temperatures (C), 6.43533, 6.22481, 6.13013, 6.11048, 6.03631, 5.89674
Hot Fluxmeter Temperature Uncertainties (C), 0.00460251, 0.00520418, 0.00608291, 0.00507616, 0.00452637, 0.00724599
Cold Fluxmeter Temperature Uncertainties (C), 0.00455481, 0.00381247, 0.00361229, 0.00356219, 0.00312671, 0.0034967
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.159219, -0.283953, -0.293175, -0.392795, -0.509934
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.211592, -0.304608, -0.325573, -0.398945, -0.538256
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00482906, 0.00622697, 0.00571172, 0.00614478, 0.00706816
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00696538, 0.00336864, 0.00559905, 0.00544966, 0.00374471

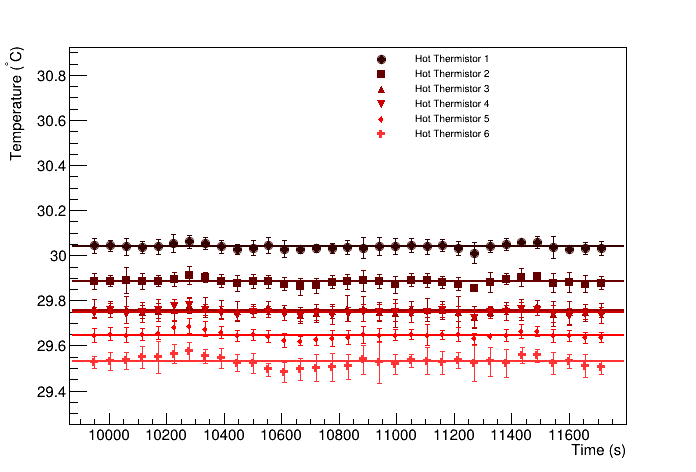

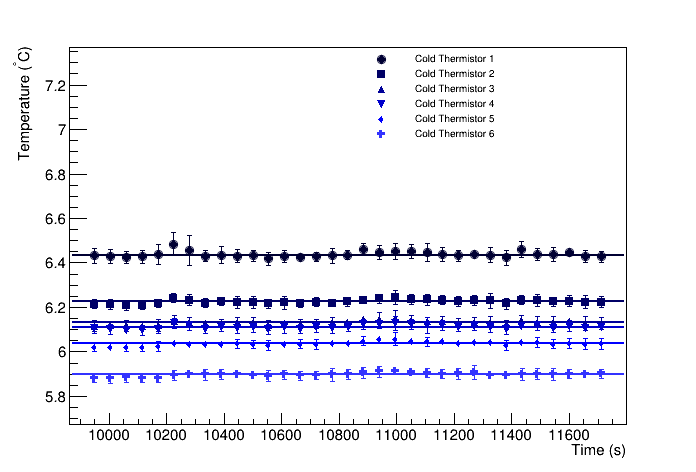

Heater Thermistors	Cooler Thermistors

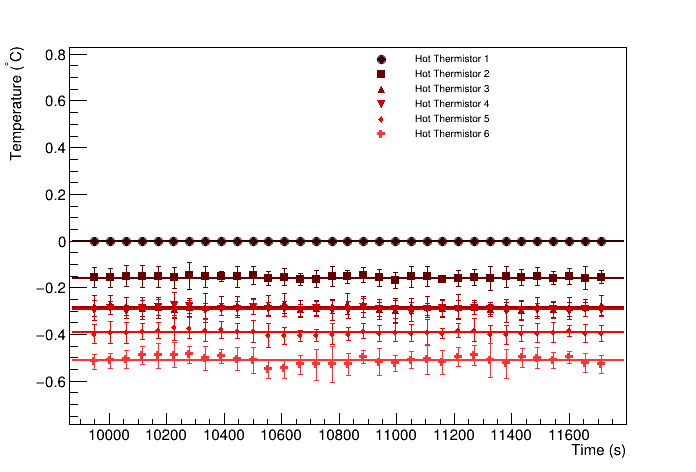

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 10/23/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 4323.42 +/- 173.722
Cold fluxmeter flux (W/m^2), 4487.22 +/- 177.632
Heat flux through sample (W/m^2), 4405.32 +/- 148.798
Heat flow through sample (W), 1.42331 +/- 0.048075
Temperature at hot end of sample (C), 29.4279 +/- 0.0267625
Temperature at cold end of sample (C), 6.48959 +/- 0.0129042
deltaT (C), 22.9383 +/- 0.0297111
R (K/W), 16.1162, 0.544757
RA (Km^2/W), 0.00302179, 0.000109843

Hot flux meter fit	Cold flux meter fit

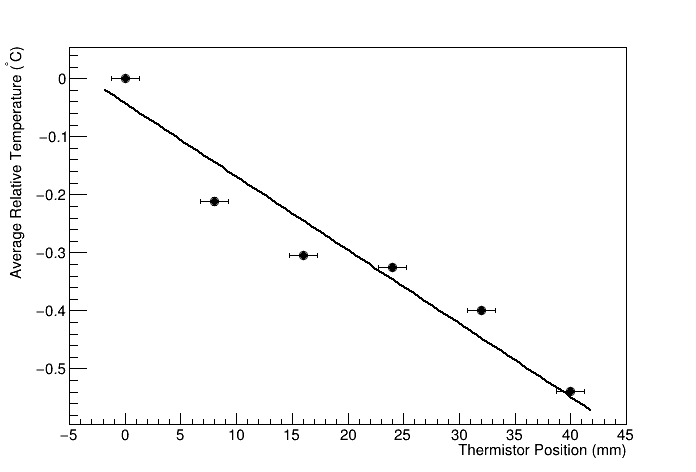

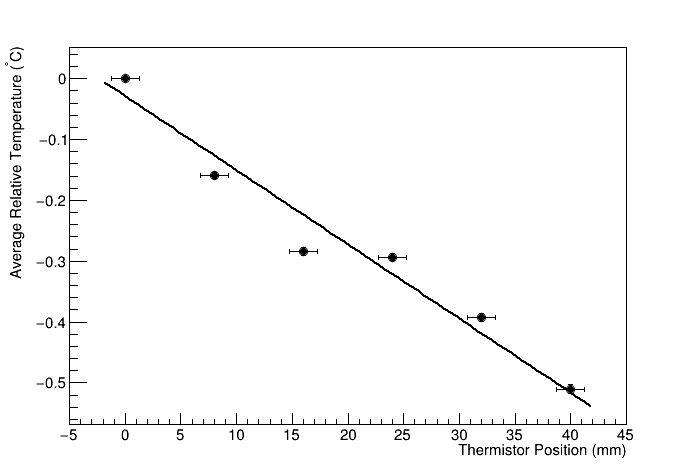

Hot flux meter difference fit	Cold flux meter difference fit
