In-plane thermal conductivity measurement
Experimentalist, Unknown
Date of measurement, 2/13/20
Apparatus, InPlane
Material, INPL12
Sample, 3
Length (mm), 11.2, 0.05
Width (mm), 50, 0.05
Thickness (mm), 3.75, 0.05
Heater Voltage (V), 5.7
Cooler Voltage (V), 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 28.1326, 27.9761, 27.8828, 27.8614, 27.7585, 27.6683
Cold Fluxmeter Temperatures (C), 6.59109, 6.37511, 6.25609, 6.25372, 6.16135, 6.02614
Hot Fluxmeter Temperature Uncertainties (C), 0.00426777, 0.00505429, 0.0062981, 0.00526762, 0.00499831, 0.00677632
Cold Fluxmeter Temperature Uncertainties (C), 0.00450186, 0.0038513, 0.00336609, 0.00359434, 0.00329498, 0.00334645
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.14401, -0.259365, -0.277627, -0.374331, -0.482054
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.21449, -0.327682, -0.33573, -0.421831, -0.560941
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00554206, 0.00578328, 0.00493498, 0.0055787, 0.007126
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00611323, 0.003079, 0.00516429, 0.00484019, 0.00429392

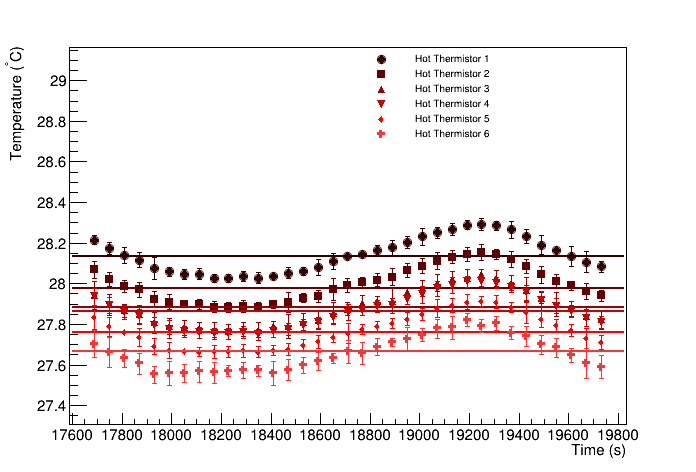

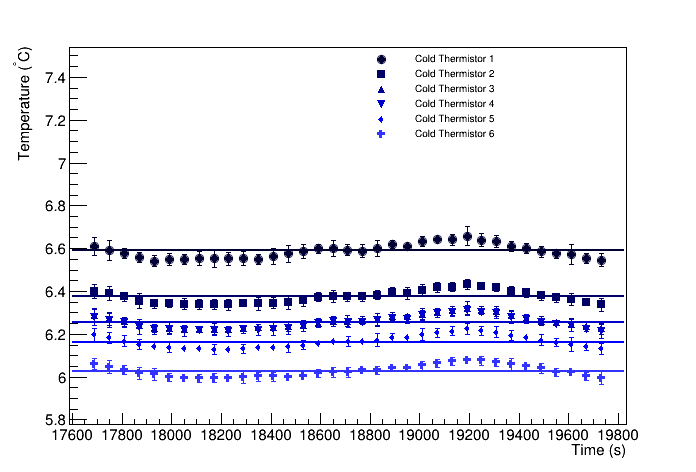

Heater Thermistors	Cooler Thermistors

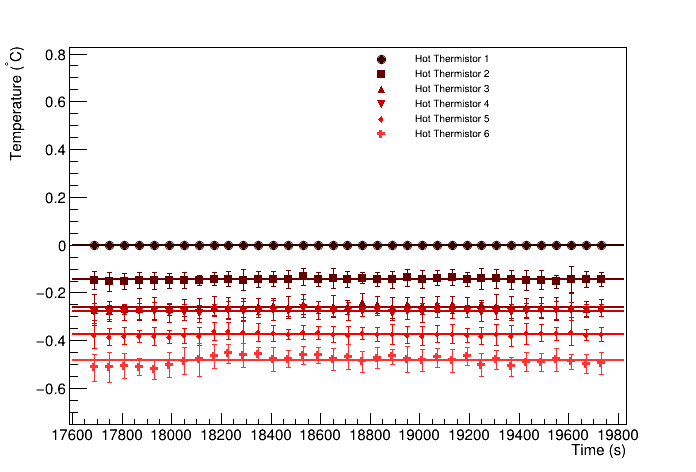

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 10/23/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 4099.18 +/- 164.972
Cold fluxmeter flux (W/m^2), 4708.2 +/- 186.992
Heat flux through sample (W/m^2), 4403.69 +/- 329.049
Heat flow through sample (W), 1.42278 +/- 0.106312
Temperature at hot end of sample (C), 27.5701 +/- 0.0244208
Temperature at cold end of sample (C), 6.64953 +/- 0.0136579
deltaT (C), 20.9206 +/- 0.0279805
R (K/W), 14.704, 1.09888
RA (Km^2/W), 0.002757, 0.000209311

Hot flux meter fit	Cold flux meter fit

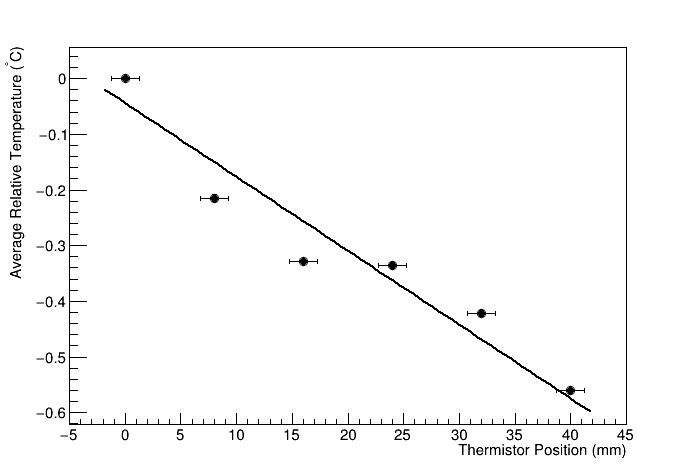

Hot flux meter difference fit	Cold flux meter difference fit
